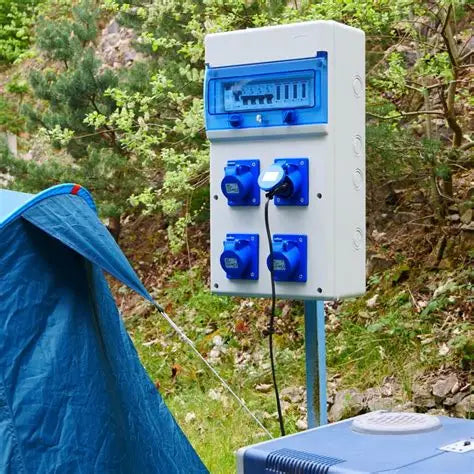

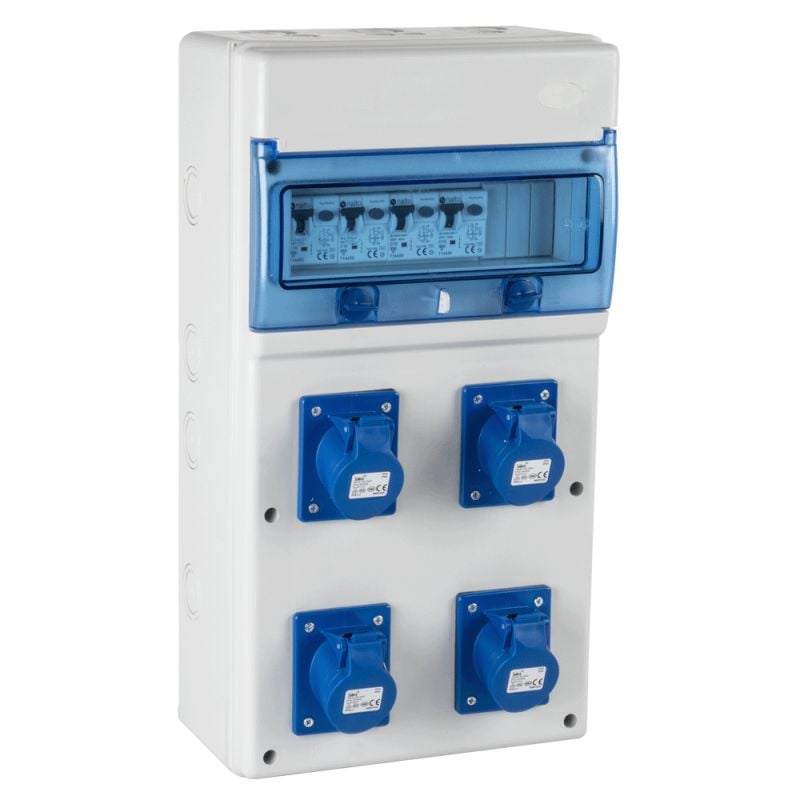

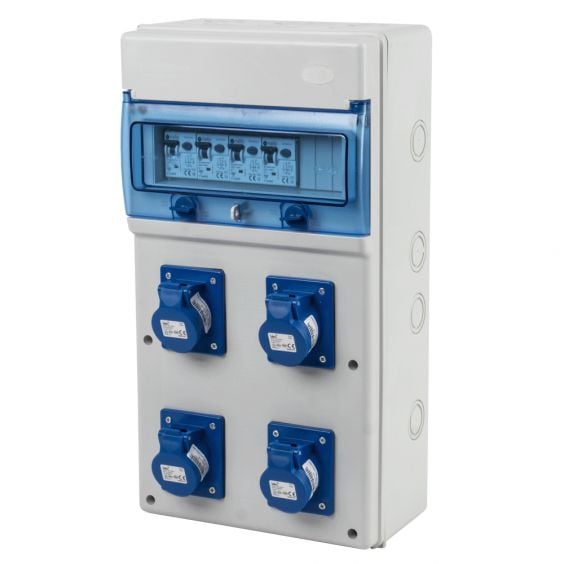

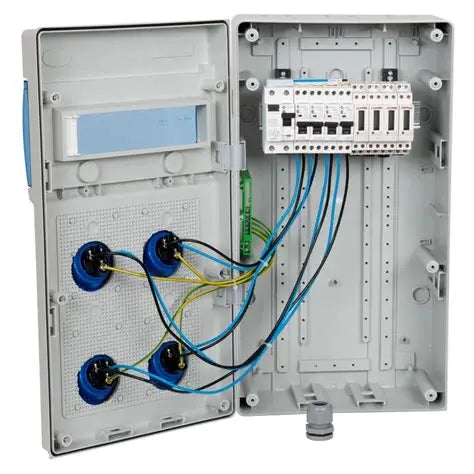

4-Way Plastic Industrial Distribution Panel – Complete with 16A & 32A Plugs, Sockets, MCBs & RCCBs

Product Description

This 4-Way Plastic Industrial Distribution Panel is a ready-to-use power distribution solution designed for industrial and commercial applications requiring safe, reliable, and flexible power control. It comes fully assembled with high-quality sockets, plugs, protection devices, and a rugged, weather-resistant plastic enclosure.

Ideal for construction sites, temporary setups, workshops, and heavy-duty electrical applications, this unit provides fast deployment and enhanced electrical safety.

What’s Included:

• 🔌 2 × 16A 3-Pin Industrial Plugs (Male)

• 🔌 2 × 16A 3-Pin Industrial Sockets (Female)

• 🔌 2 × 32A 3-Pin Industrial Plugs (Male)

• 🔌 2 × 32A 3-Pin Industrial Sockets (Female)

• ⚡ Miniature Circuit Breakers (MCBs) – Pre-installed for overload and short circuit protection

• ⚡ Residual Current Circuit Breakers (RCCBs) – For advanced leakage protection

• 🧰 4-Way IP Rated Plastic Enclosure – Strong, lightweight, and weather-resistant with pre-cut holes for ventilation and cable entry

Key Features:

• ✅ 4-Way Design: Connect multiple loads from one safe panel

• ✅ Current Ratings:

  • 2 × 16A 3-Pin (230V)

  • 2 × 32A 3-Pin (230V)

• ✅ Voltage: 220–240V AC

• ✅ Material: Durable industrial-grade plastic

• ✅ Weather Protection: IP44 rated – Splash-proof and dust-resistant

• ✅ Plug & Play Ready: All components pre-installed and wired

• ✅ Built-In Safety Devices: MCBs & RCCBs for each circuit

• ✅ Easy Transport & Installation: Lightweight, wall-mount or stand-ready

Applications:

• 🏗️ Construction & Temporary Power

• 🧰 Workshops & Fabrication Shops

• 🎪 Outdoor Events & Lighting Systems

• 🏭 Light Industrial Machinery

• ⚡ Generator Distribution & Maintenance

Technical Specifications:
