Detailed Description

Product Overview

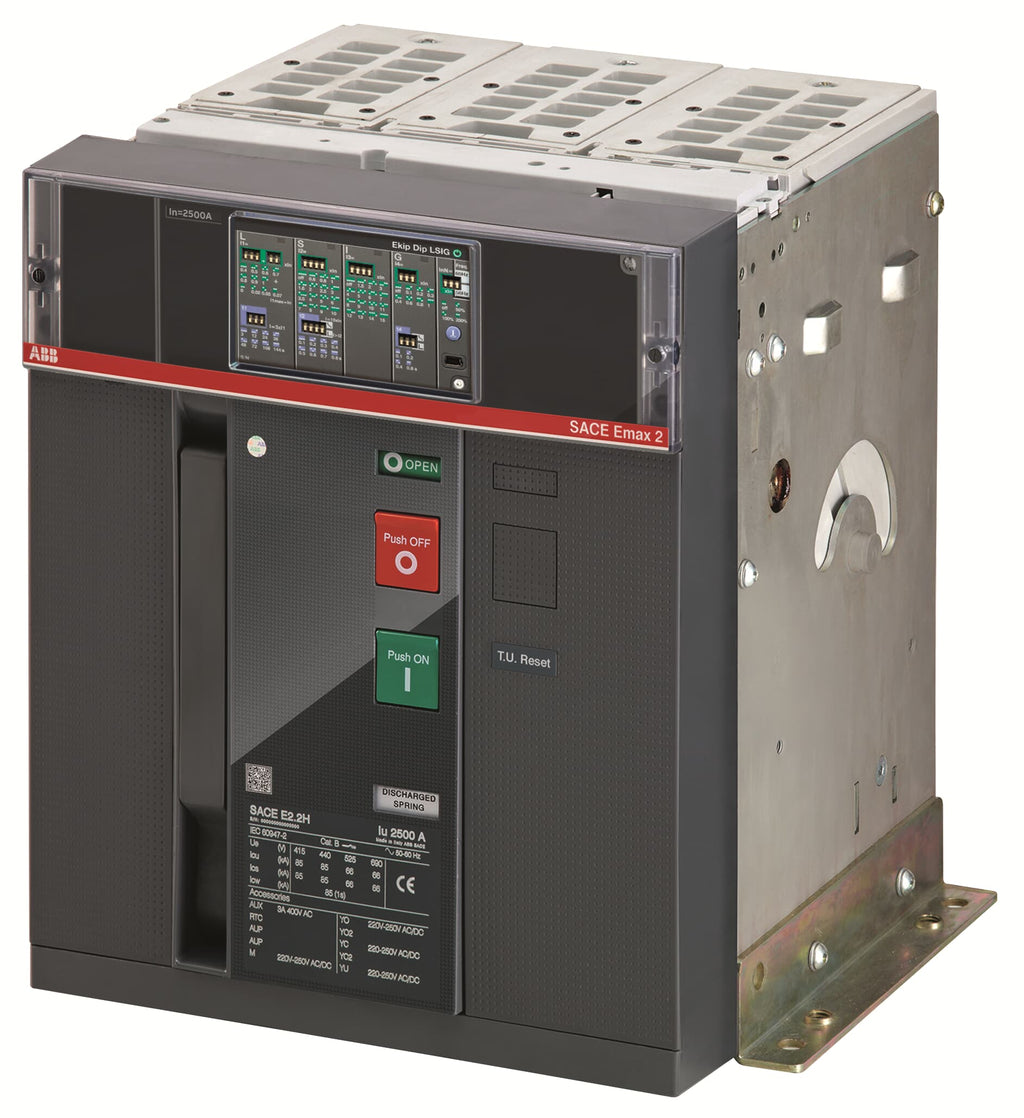

The ABB 1SDA071021R1 is a high-capacity, fixed three-pole air circuit breaker (ACB) from the SACE Emax 2 series, specifically the E2.2B 2000 model. It offers robust protection for industrial and large-scale electrical systems — such as transformers, generators, and infrastructure installations — where reliability and fault tolerance are critical.

Key Specifications

• Rated Current (Iu): 2000 A

• Rated Voltage (Ur): 690 V AC

• Short-Circuit Breaking Capacity (Icu): 42 kA at 400 V, 50 Hz

• Trip (Release) Type: Solid-state electronic release EKIP / DIP-LI R

• Overload Adjustment Range: 800 – 2000 A

• Instantaneous (Short-Circuit) Adjustment Range: 3000 – 30,000 A

• Number of Poles: 3 (Three-Pole)

• Terminal Connection: Rear horizontal bolt terminals

• Auxiliary Contacts: 4 change-over contacts

• Degree of Protection: IP30

• Power Loss: 212 W

• Mechanical Dimensions: ~276 mm (W) × 371 mm (H) × 270 mm (D)

• Weight: ~41 kg

• Standards Compliance: Based on IEC 60947-2

• Sustainability Features: Part of ABB EcoSolutions; high recyclability; designed per circular economy principles.

Features & Benefits

1. High Performance & Protection
   With a 2000 A continuous current rating and a 42 kA short-circuit breaking capacity, this breaker is well-suited for heavy-duty protection in critical systems.

2. Smart Trip Control
   The EKIP / DIP-LI R electronic trip unit offers flexible and precise control over overload and fault conditions, enabling adjustable protection settings for both long-term and instantaneous faults.

3. Robust Mechanical Construction
   Designed with a fixed architecture, rear horizontal connections, and a durable build, this circuit breaker is built for long service life and minimal maintenance.

4. Auxiliary Contact Support
   Comes fitted with 4 auxiliary (change-over) contacts, enabling status signaling (open/closed) and external interlocking.

5. Eco-friendly Design
   As part of ABB’s EcoSolutions, it is designed for high recyclability (EN45555 standard) and has an environmental product declaration (EPD).

6. Safety & Compliance
   Meets international safety and low-voltage switchgear standards, making it suitable for a wide range of industrial applications.

Use Cases

• Protection of transformers and generators in power plants

• Overcurrent and short-circuit protection in motor control centers

• Critical infrastructure such as data centers, industrial facilities, large commercial buildings

• Systems requiring remote monitoring or automation via trip status (thanks to auxiliary contacts)

Package & Ordering

• Sold as a single unit (MOQ = 1)

• EAN: 8015644748715

• Country of origin: Italy

Warranty & Compliance

• RoHS-compliant (EU directive)

• Manufactured to ABB’s high-quality standards
