AD16-22SM 24VDC Flashing Pilot Lamp with Buzzer Green

AD16-22SM 24VDC Flashing Pilot Lamp with Buzzer — Green

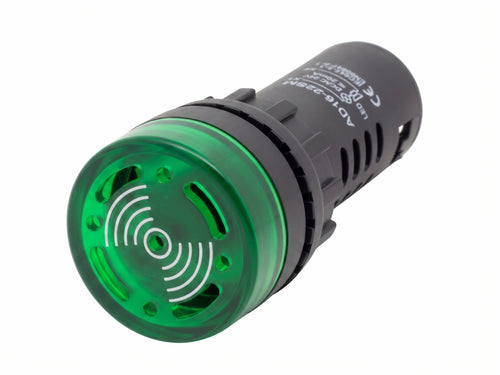

The AD16-22SM is a 22mm panel-mount flashing pilot lamp with integrated buzzer, designed for visual and audible run/ready indication on control panels, machinery, and industrial equipment operating at 24VDC. The green LED flashes simultaneously with the buzzer to provide a clear dual-mode status signal.

Technical Specifications

• Model: AD16-22SM
• Voltage: 24VDC
• Current: ≤20mA
• Panel cutout: 22mm
• LED colour: Green
• Function: Flashing LED + integrated buzzer
• Mounting: Panel mount, screw fixing
• Application: Control panels, machinery, alarm systems, industrial equipment
