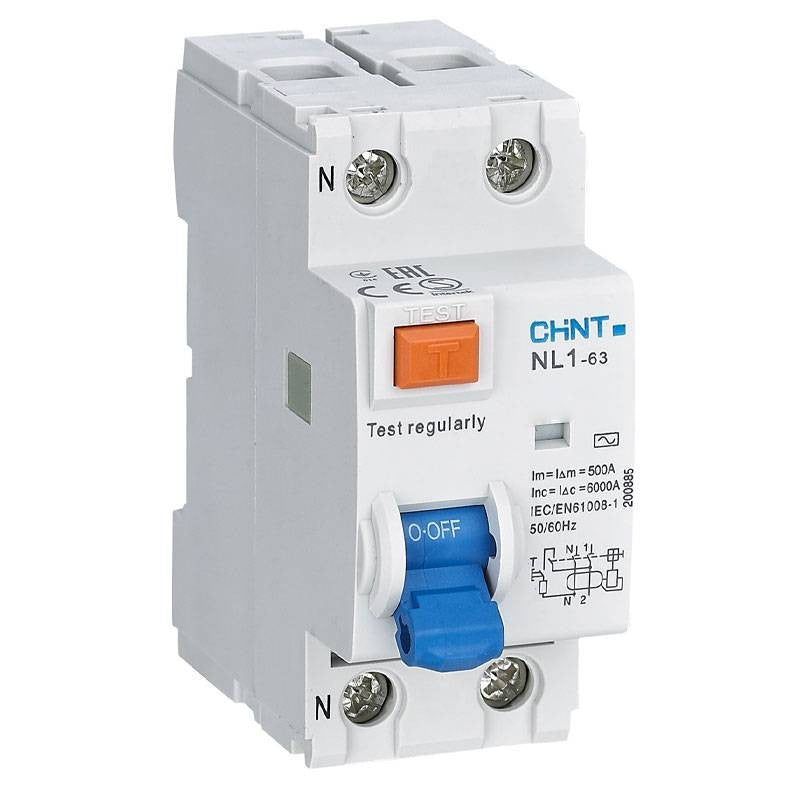

Chint NL1-63 2P 40A 30mA RCCB – Residual Current Circuit Breaker, AC Type, 6kA, 2 Pole – Earth Leakage Protection for Residential and Commercial Applications
Chint NL1-63 2P 40A 30mA RCCB – Residual Current Circuit Breaker, AC Type, 6kA, 2 Pole – Earth Leakage Protection for Residential and Commercial Applications
Couldn't load pickup availability
Product Code: NL1-63-2P-40A-30mA
Brand: Chint
Product Type: eARTH
Pole Configuration: 2 Pole (2P)
Rated Current: 40 Amperes (40A)
Sensitivity (Residual Operating Current): 30mA
Type: AC (sensitive to sinusoidal AC leakage currents)
Short-Circuit Withstand Capacity (Im): 6kA
Mounting Type: DIN Rail
Compliance Standard: IEC/EN 61008-1
Product Overview
The Chint NL1-63 2P 40A 30mA RCCB is designed to provide life-saving residual current protection against electric shock and earth leakage in residential, commercial, and light industrial electrical systems. This 2-pole RCCB disconnects both the line and neutral conductors, offering full protection for single-phase circuits.
With a sensitivity of 30mA, this RCCB is ideal for personal protection, while the AC-type sensing ensures it detects standard alternating leakage currents. Its 6kA short-circuit withstand capability makes it robust enough for use in modern distribution boards.
Key Features
-
🛡️ 40A Rated Current – Ideal for residential and small commercial circuits
-
⚠️ 30mA Sensitivity – Provides reliable earth leakage protection against electric shock
-
🔌 2 Pole Isolation (L + N) – Simultaneously disconnects both conductors in a fault
-
🌐 AC Type RCCB – Detects sinusoidal AC residual currents
-
⚡ 6kA Withstand Rating – Withstands high fault currents when used with backup MCB
-
🧲 DIN Rail Mounting – Easy installation in standard consumer units and panels
-
✅ Compliant with IEC/EN 61008-1 – Assures global safety and quality standards
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Chint |
| Series | NL1-63 |
| Rated Current (In) | 40A |
| Residual Operating Current (IΔn) | 30mA |
| Type | AC |
| Number of Poles | 2P |
| Rated Voltage | 230/240V AC |
| Frequency | 50/60 Hz |
| Short-Circuit Withstand (Im) | 6kA (with backup MCB) |
| Mounting | DIN Rail |
| Operating Temperature | -5°C to +40°C |
| Standard | IEC/EN 61008-1 |
Typical Applications
-
Household and apartment distribution boards
-
Commercial building circuits
-
Power outlets, water heaters, and air conditioners
-
Light industrial circuits requiring personal protection
-
Areas with high risk of electric shock (e.g., kitchens, outdoor sockets)
Why Choose Chint NL1-63 2P 40A 30mA RCCB?
The NL1-63 RCCB combines compact design, reliable earth leakage protection, and IEC compliance, making it ideal for installers and engineers who prioritize safety and quality. Backed by Chint’s global reputation, it offers peace of mind in every installation.
