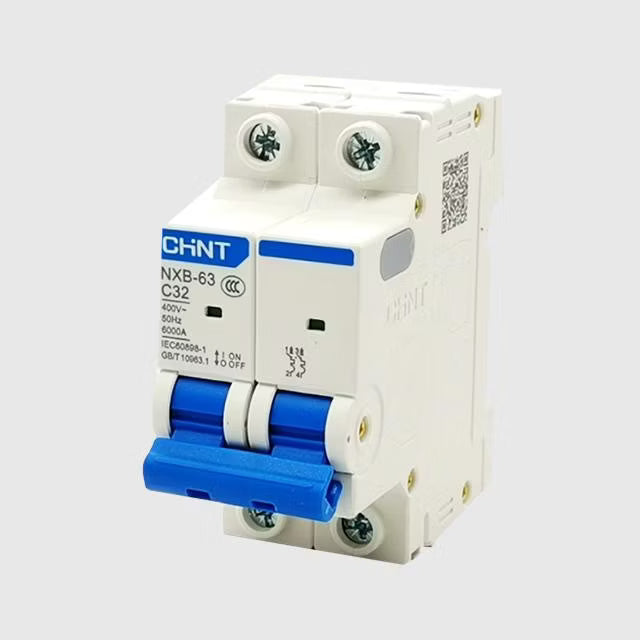

Chint NXB-63 2P C32 Miniature Circuit Breaker – 32A, 6kA Breaking Capacity, Type C Curve, Double Pole MCB for Single-Phase Circuit Protection
Chint NXB-63 2P C32 Miniature Circuit Breaker – 32A, 6kA Breaking Capacity, Type C Curve, Double Pole MCB for Single-Phase Circuit Protection
Couldn't load pickup availability
Product Code: NXB-63-2P-C32
Brand: Chint
Product Type: Miniature Circuit Breaker (MCB)
Pole Configuration: 2 Pole (2P)
Rated Current: 32 Amperes (32A)
Tripping Curve: Type C
Breaking Capacity: 6kA
Standard Compliance: IEC/EN 60898-1
Installation: DIN Rail Mounting
Product Overview
The Chint NXB-63 2P C32 MCB is a double-pole miniature circuit breaker designed to protect both live and neutral lines in single-phase systems. With a 32A rated current and a Type C tripping curve, this breaker is ideal for circuits with moderate inrush currents such as commercial lighting, air conditioning units, or multi-outlet socket banks.
Rated at 6kA breaking capacity, this device offers reliable protection against overloads and short circuits in both residential and commercial installations.
Key Features
-
✅ 32A Rated Current – Suitable for mid-range loads like lighting circuits, power sockets, and small machinery.
-
⚡ 6kA Breaking Capacity – High fault tolerance ensures circuit safety under extreme conditions.
-
🔄 Type C Tripping Curve – Ideal for circuits with moderately inductive loads.
-
🔌 2P Disconnection – Provides simultaneous interruption of both phase and neutral conductors.
-
🧲 DIN Rail Mounting – Quick installation in all standard enclosures.
-
✅ Certified to IEC/EN 60898-1 – Globally recognized for electrical safety and performance.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Chint |
| Model Series | NXB-63 |
| Rated Current (In) | 32A |
| Voltage Rating (Ue) | 230/240V AC |
| Number of Poles | 2P |
| Tripping Curve | Type C |
| Breaking Capacity | 6kA |
| Frequency | 50/60 Hz |
| Mounting Type | DIN Rail |
| Operating Temperature | -5°C to +40°C |
| Compliance | IEC/EN 60898-1 |
Typical Applications
-
Single-phase sub-circuit protection
-
High-demand lighting and power socket clusters
-
Backup power supply outputs (e.g. inverters, generators)
-
Isolating heavy-duty single-phase equipment
-
Commercial and light industrial distribution boards
Why Choose Chint NXB-63 2P C32?
The Chint NXB-63 2P C32 MCB combines enhanced load-handling, dual-pole safety, and compact DIN rail design. Whether used in home distribution boards or commercial installations, it ensures long-term performance with the peace of mind that comes from a globally trusted electrical protection brand.
