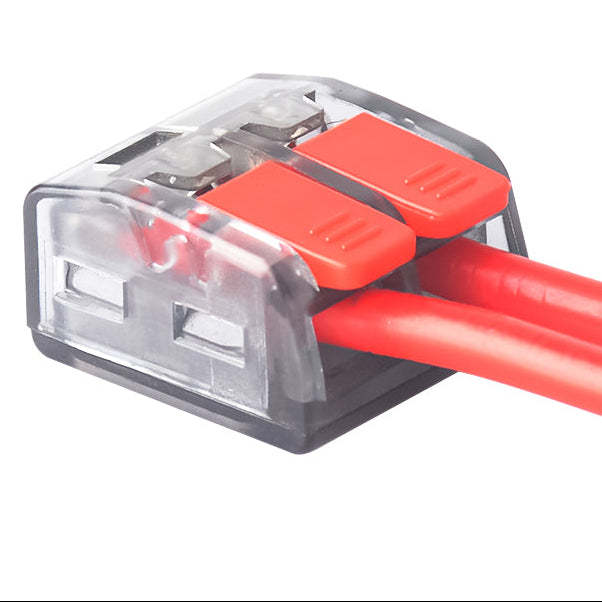

CMK-632 Luminaire Quick Access Connector, 2-Way PA66 Push-In, 32 A / 450 V, 0.2-4 mm²

CMK-632 Luminaire Quick Access Connector, 2-Way PA66 Push-In, 32 A / 450 V, 0.2-4 mm²

GH₵3.00
GH₵4.00 GH₵3.00
Sale Sold out

Description

Overview:
The CMK-632 Luminaire Quick Access Connector is a 2-way push-in style luminaire connector designed for fast, reliable, and tool-free wiring in lighting fixtures and junction boxes. The transparent (or semi-transparent) housing enables visual inspection of conductor seating.

Key Features & Specifications:

Feature Specification
Number of circuits 2 (2 way)
Rated voltage 450 V AC
Rated current 32 A
Conductor cross-section 0.2 – 4.0 mm² (flexible & solid)
Strip (insulation) length 11 mm
Operating temperature range –40 °C to +105 °C
Housing material PA66 (or polyamide)
Actuating lever material PA66
Conductive parts / contact spring Thinned / tinned copper and SS301 spring
Transparent housing Enables visual confirmation of correct insertion
Wire insertion / removal Tool-free push-in with lever actuation; supports solid, stranded, and fine stranded conductors

Applications:
The CMK-632 is ideal for use in lighting fixtures, junction boxes, power housings, and compact electrical assemblies. It supports fast and secure wiring in luminaire manufacturing and servicing. It is especially suited for connecting supply and load conductors in LED lighting, ceiling fixtures, downlights, or modular luminaires.

Usage Notes / Best Practices:

  1. Ensure the wire insulation is stripped to the correct 11 mm length before insertion.

  2. Press the lever (or opening mechanism) to open the contact, insert the conductor fully, and then release the lever to lock.

  3. Visual confirmation should show the conductor clearly seated in the housing.

  4. The connector is rated for continuous operation between –40 °C and +105 °C, making it suitable for many indoor and semi-enclosed luminaire environments.

  5. Do not exceed 32 A or 450 V in application.

  6. The connector is reusable; conductors can be removed by actuating the lever again.

Packaging / Unit Information (suggested):

  • Supplied in sealed bags or reels (e.g. 100 pcs per bag)

  • Label includes part number, lot number, and QC inspection date

  • Store in a clean, dry environment avoiding UV exposure
