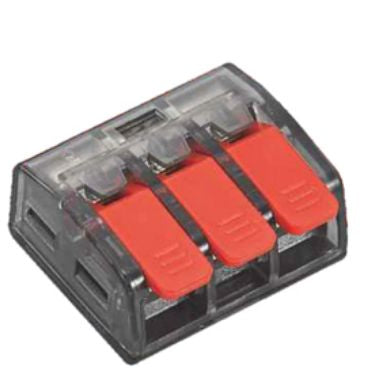

CMK-6333 Luminaire Quick Access Connector, 3-Way Push-In, 32 A / 450 V, 0.2–4 mm²
CMK-6333 Luminaire Quick Access Connector, 3-Way Push-In, 32 A / 450 V, 0.2–4 mm²
Couldn't load pickup availability
Description
Overview:
The CMK-6333 Luminaire Quick Access Connector is a 3-way push-in / lever-actuated luminaire connector engineered for fast, reliable, and tool-free wiring of lighting fixtures and junction boxes. Its semi-transparent housing allows visual confirmation of conductor seating.
Key Features & Specifications:
| Feature | Specification (typical) |
|---|---|
| Number of circuits | 3 (3 way) |
| Rated voltage | 450 V AC |
| Rated current | 32 A |
| Conductor cross-section | 0.2 – 4.0 mm² (solid & stranded) |
| Strip length (insulation removal) | ~11 mm |
| Operating temperature | –40 °C to +105 °C |
| Housing material | PA66 / polyamide |
| Contact / spring material | Tinned copper / stainless steel spring |
| Transparency | Semi-clear housing to inspect conductor insertion |
| Wiring method | Push in with lever (or similar) for tool-free insertion and removal |
Applications:
Ideal for LED luminaires, ceiling fixtures, downlights, and modular lighting systems. Use in luminaire manufacturing, installation, or maintenance for connecting supply, neutral, and load lines within compact spaces.
Usage Notes / Best Practices:
-
Strip insulation to correct length (≈11 mm), insert conductor fully, then release lever to secure.
-
Visual inspection should confirm full conductor insertion.
-
Suitable for ambient or semi-enclosed luminaire environments within the –40 °C to +105 °C range.
-
Do not exceed 32 A or 450 V in use.
-
Connector can be reused — actuate lever to release conductor.
Packaging / Unit Info (suggested):
-
Supplied in sealed anti-static or PE bags (e.g. 50 or 100 pieces)
-
Each pack labeled with part number, batch/lot, and QC date
-
Store in cool, dry place out of direct sunlight / UV exposure
