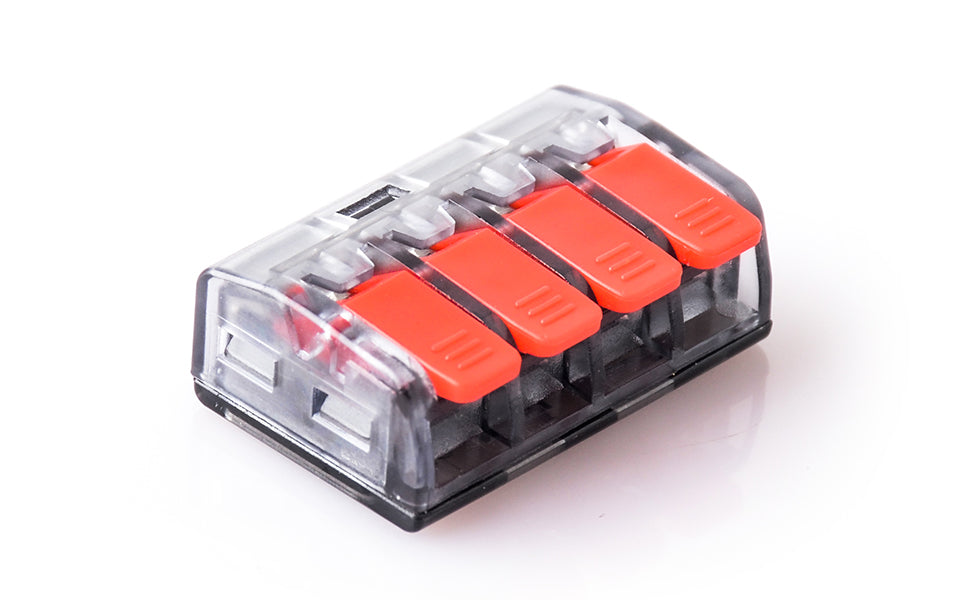

CMK-634 Luminaire Quick Access Connector — 4-Way Push-In, 32 A / 450 V

CMK-634 Luminaire Quick Access Connector — 4-Way Push-In, 32 A / 450 V

GH₵5.00
GH₵6.00 GH₵5.00
Sale Sold out

Description

Product Overview
The CMK-634 Luminaire Quick Access Connector is a compact, 4-way push-in / lever-actuated connector engineered for fast, reliable, and tool-free wiring in LED luminaires, junction boxes, and compact electrical fixtures. Its durable PA66 housing, combined with high-quality internal contacts, ensures consistent performance across a wide temperature range.

Technical Specifications

Parameter Value
Number of circuits 4 (4-way)
Rated voltage 450 V A
Rated current 32 A
Conductor range (rigid) 0.2 – 4.0 mm²
Conductor range (flexible) 0.2 – 2.5 mm²
Strip length 11 mm (0.43 in)
Operating temperature –40 °C to +105 °C
Housing / Shell material PA66 (polyamide)
Actuating lever PA66
Conductive parts & spring Thinned copper contacts, SS301 spring

Key Features & Benefits

  • Tool-free connection — push-in or lever actuation allows easy insertion and release of solid or stranded conductors

  • Visual confirmation — semi-transparent housing allows inspection of conductor seating

  • Reusable — wires can be removed by actuating the lever again

  • Compact design — space-saving footprint suitable for confined luminaire housings

  • Wide temperature tolerance — suitable for demanding indoor and semi-enclosed applications

  • Reliable internal contacts — engineered for vibration resistance and stable electrical performance

Typical Applications

  • Internal wiring of LED luminaires, downlights, and spotlights

  • Junction boxes and lighting fixture interconnects

  • Compact electrical enclosures and power distribution modules

  • Building lighting systems where quick, safe, and reliable wiring is needed

Usage & Handling Notes

  1. Strip the conductor insulation to 11 mm before insertion.

  2. Actuate the lever or press (depending on variant) to open the contact, insert the conductor fully, and then release to secure.

  3. Ensure that the wire is fully seated — visual verification through housing is recommended.

  4. Do not exceed the rated 32 A or 450 V specifications.

  5. For multi-stranded or fine-stranded conductors, use ferrules if needed or follow manufacturer guidelines.

  6. When removing, re-actuate the lever to release the conductor.

  7. Store in a clean, dry environment away from UV exposure or harsh chemicals.
