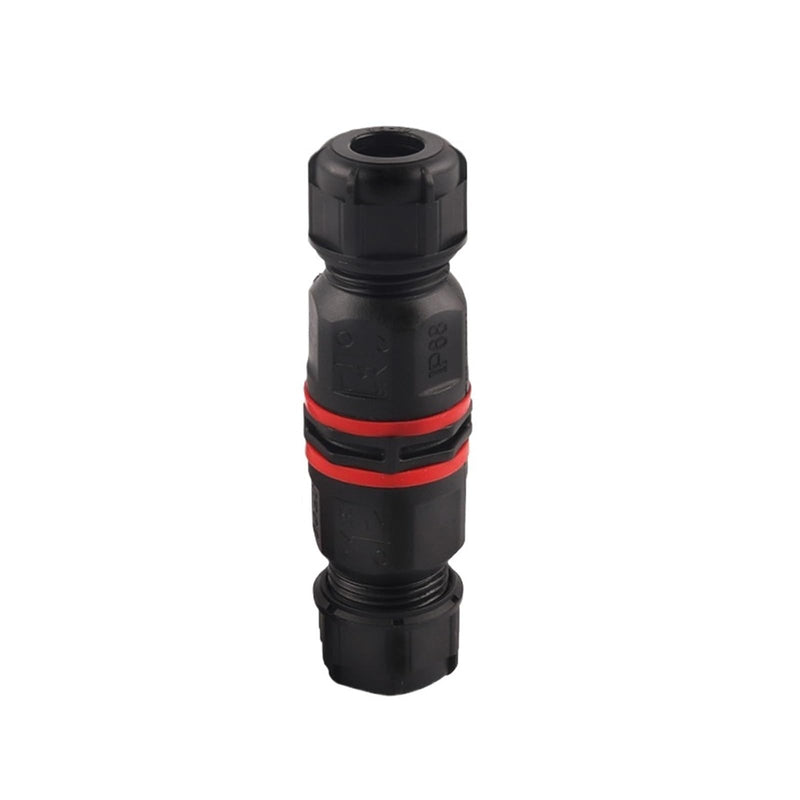

CN20 (M20) Direct Waterproof Connector 2/3/4/5 Core
SKU: CN20-2/3/4/5
CN20 (M20) Direct Waterproof Connector — 2/3/4/5 Core
The CN20 is an M20-format direct waterproof connector rated IP68, designed for reliable outdoor and wet-environment electrical connections with higher voltage capability. Available in 2, 3, 4, and 5 core configurations, it is ideal ...
In Stock
GH₵200.00
CN20 (M20) Direct Waterproof Connector — 2/3/4/5 Core
The CN20 is an M20-format direct waterproof connector rated IP68, designed for reliable outdoor and wet-environment electrical connections with higher voltage capability. Available in 2, 3, 4, and 5 core configurations, it is ideal for outdoor lighting, solar installations, industrial machinery, and field wiring where moisture ingress protection and higher voltage ratings are required.
Technical Specifications
- Order number: CN20 Direct 2/3/4/5 core
- Rated current: ≤16A
- Voltage: 400V
- Waterproof class: IP68
- Operating temperature: -30°C to +90°C
- Cable diameter: 8–12mm (routine) / 6–10mm
- Wire gauge: 0.5–2mm²
- Wiring method: Screw crimping
- Overall length: 90mm
- Outer diameter: Ø25mm
