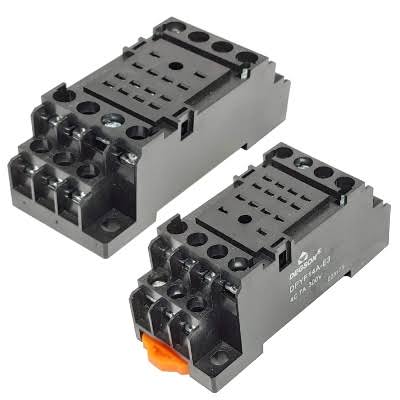

DEGSON DPYF-14A-3-00A(H) Relay Socket 14-Pin 5A DIN35 Rail
SKU: DPYF-14A-3-00A-H
DEGSON DPYF-14A-3-00A(H) – DPYF Relay Socket, 14-Pin, 5A, DIN35 Rail Mount
The DPYF-14A-3-00A(H) is a general-purpose relay socket from DEGSON's DPYF series, designed for use with 4PDT (14-pin) DRPE series relays. It features screw connection terminals and DIN35 rail mounting for easy ...
In Stock
GH₵35.00
DEGSON DPYF-14A-3-00A(H) – DPYF Relay Socket, 14-Pin, 5A, DIN35 Rail Mount
The DPYF-14A-3-00A(H) is a general-purpose relay socket from DEGSON's DPYF series, designed for use with 4PDT (14-pin) DRPE series relays. It features screw connection terminals and DIN35 rail mounting for easy panel installation, with an orange LED/flag indicator for relay status visibility.
Key Specifications
- Compatible relay: 4PDT DRPE series relays (14-pin)
- Pin number: 14
- Maximum allowable current: 5A
- Rated voltage UN: 300V
- Socket type: General socket
- Assembly: DIN35 rail mount
- Installation location: Arbitrary
Dimensions
- Width: 33mm | Length: 76.5mm | Depth (incl. bracket): 31mm
Connection Data
- Connection method: Screw connection (M3)
- Stripping length: 7–8mm
- Cross section (flexible conductor): 0.5–2.5mm²
- Connectable guide cross section: 20–14AWG
Environmental Data
- Ambient temperature (operation): -40°C … +65°C
- Ambient temperature (storage/transport): -40°C … +65°C
Part Number: DPYF-14A-3-00A(H)
