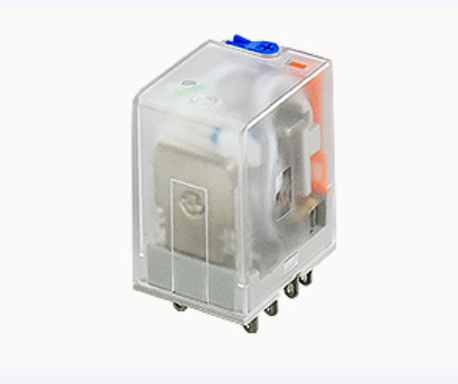

DEGSON DRPE-4C-LR-D24-03Z(H) Power Relay 4PDT 24VDC 5A

DEGSON DRPE-4C-LR-D24-03Z(H) – Single Power Relay, 4PDT with LED Indicator

The DRPE-4C-LR-D24-03Z(H) is a high-performance power relay from DEGSON's DRPE series featuring a 4PDT (4-pole double-throw) contact configuration with a green LED indicator. Rated for 24VDC coil voltage and 5A switching current, it is designed for industrial control panels and automation systems requiring multi-pole reliable DC-coil switching.

Key Specifications

• Contact configuration: 4C (4PDT)
• Rated coil voltage: 24VDC
• Switching current: 5A
• Indicator light: Green LED
• Coil resistance: 640Ω
• Typical input current (UN): 37.5mA
• Operating voltage: ≤75% UN | Reset voltage: ≤10% UN
• Power consumption: 0.9W

Switch Part (Contact)

• Contact voltage maximum: 277VAC / 30VDC
• Maximum contact current: 5A
• Contact composition: 4C (single mechanism)
• Contact material: Ag alloy
• Contact resistance: ≤100mΩ
• Action time: <20ms | Reset time: <20ms
• Max switching frequency (mechanical): 18000 times/h
• Max switching frequency (rated load): 1800 times/h
• Insulation resistance: ≥100MΩ
• Withstand voltage (coil to contact): 1500VAC/1min
• Withstand voltage (same pole contacts): 1200VAC/1min
• Electrical life: >1×10⁵ | Mechanical life: >1×10⁷

Dimensions

• Width: 31.0mm | Length: 27.4mm | Height: 34.7mm

Environmental Data

• Ambient temperature (operation/storage): -25°C … 55°C
• Humidity: 35%–85%RH
• Shock proof: 10G | Vibration resistant: 10–55Hz

Standards & Compliance

• IEC 61810-1, IEC 60664
• Basic insulation | Pollution level 3 | Overvoltage category II

Part Number: DRPE-4C-LR-D24-03Z(H)
