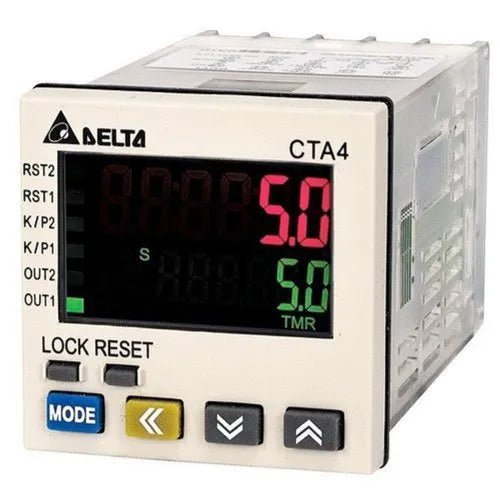

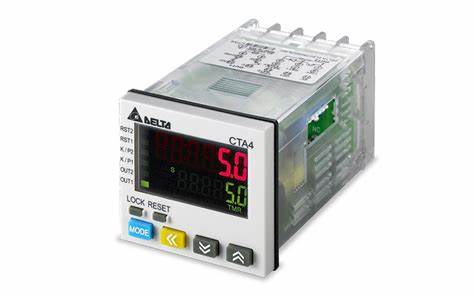

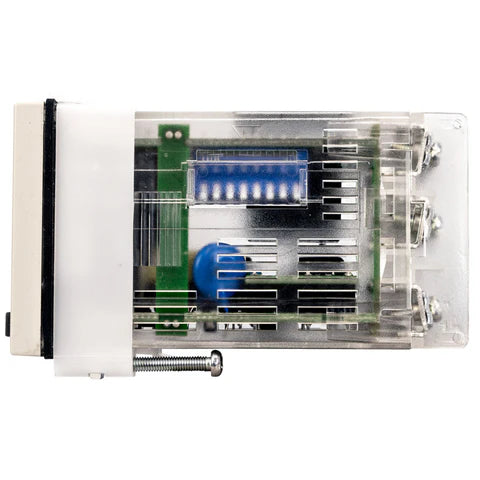

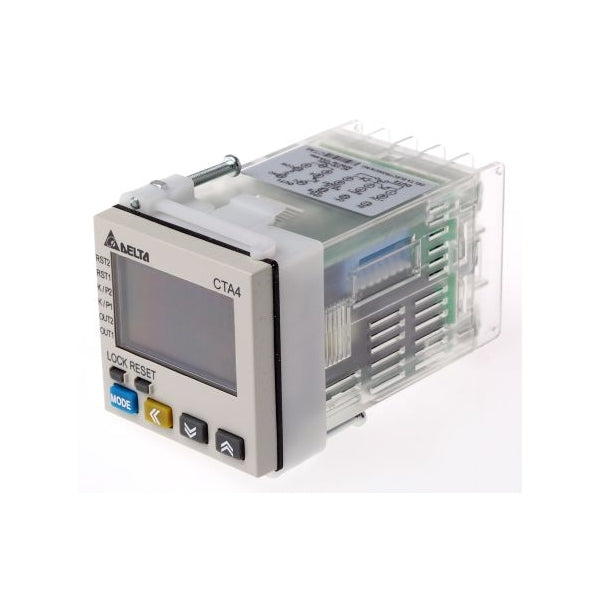

Delta CTA4000A – 3-in-1 Timer, Counter, Tachometer

The Delta CTA4000A is a versatile panel-mounted device, designed for batch counting, total counting, length measurement, position control, accurate timing, and rotation speed monitoring in industrial applications. With multiple operating modes, it ensures precise control and reliable performance.

Key Features:

• Functionality: Batch, Preset, Tachometer, Timer, Totalizer
• Operating Modes: Up, Down Counting
• Display Type: LCD - Dual Color Characters, Backlight
• Number of Characters Per Row: 6
• Input Type: No Voltage, Voltage
• Output Type: Solid State (NPN / NO)
• Supply Voltage: 100 ~ 240V AC
• Reset Method: Front Panel
• Panel Cutout Dimensions: Square - 45.00mm x 45.00mm
• Mounting Type: Panel Mount
• Termination Style: Screw Terminal
• Operating Temperature: 0°C ~ 50°C
• Compliance: CE, UL Certified

Ideal for industrial automation, process control, and monitoring applications, the Delta CTA4000A offers high accuracy, durability, and easy integration into automation systems.
