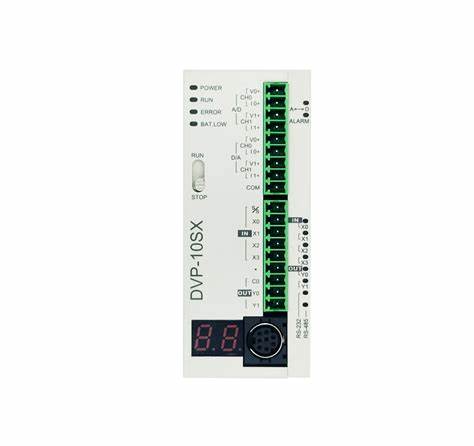

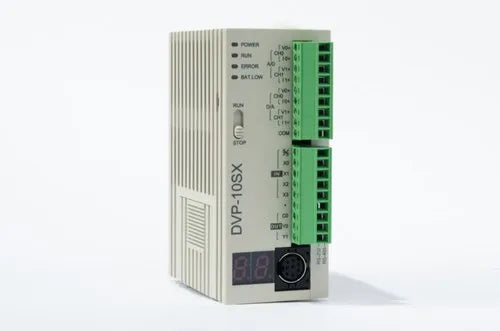

Delta DVP10SX11R – Compact PLC with Analog I/O

The Delta DVP10SX11R is a multi-function programmable logic controller (PLC) from the DVP-SX series, designed for precise automation control in industrial applications. With built-in analog I/O, it ensures efficient process management and seamless integration.

Key Features:

• I/O Configuration: 4 Digital Inputs, 2 Digital Outputs (Relay), 2 Analog Inputs, 2 Analog Outputs
• Supply Voltage: 24V DC
• Program Capacity: 16K Steps
• Communication Ports: RS-232 & RS-485 (Modbus ASCII/RTU, Master/Slave)
• High-Speed Pulse Output: Supports 2 independent points (Y0, Y1) up to 100kHz
• PID Auto-Tuning: Automatic parameter saving after tuning
• Built-in Display: 2-digit 7-segment display for system monitoring
• Mounting Type: DIN Rail
• Operating Temperature: 0°C to +55°C
• Noise Immunity: ESD: 8 kV Air Discharge, EFT: Power Line 2 kV, Digital I/O 1 kV

Ideal for industrial automation, process control, and monitoring applications, the Delta DVP10SX11R offers high accuracy, durability, and easy integration into automation systems.
