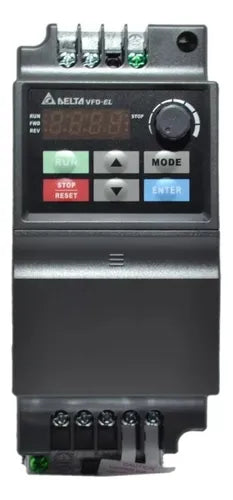

Delta VFD022EL21A – 3 HP (2.2 kW) Compact Micro AC Drive

Delta VFD022EL21A – 3 HP (2.2 kW) Compact Micro AC Drive

The Delta VFD022EL21A is a high-performance micro AC drive, designed for precise motor control in industrial applications. With single-phase 230V input, it efficiently converts power to three-phase output, ensuring smooth operation, energy efficiency, and reliable performance.

Key Features:

• Power Rating: 2.2 kW (3 HP)
• Input Voltage: 200-240V AC, 1-phase
• Output Voltage: 200-240V AC, 3-phase
• Current Rating: 11A
• Frequency Range: 0 - 600 Hz for flexible speed control
• Control Type: V/Hz (Scalar) control
• Braking: DC Injection & Dynamic Braking for enhanced stopping power
• Communication: RS485 Modbus for seamless system integration
• Protection Features: Overload protection, EMI filter, RFI switch
• Enclosure Rating: IP20 for indoor applications
• Compact Dimensions: Height: 6.85", Width: 3.94", Depth: 5.35"

Ideal for small industrial applications, the Delta VFD022EL21A offers easy installation, stable operation, and optimized energy consumption, making it a versatile solution for automation needs
