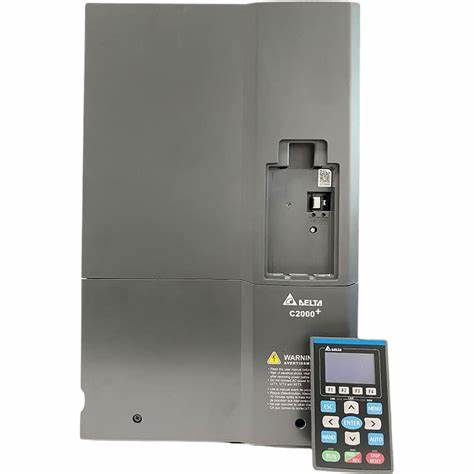

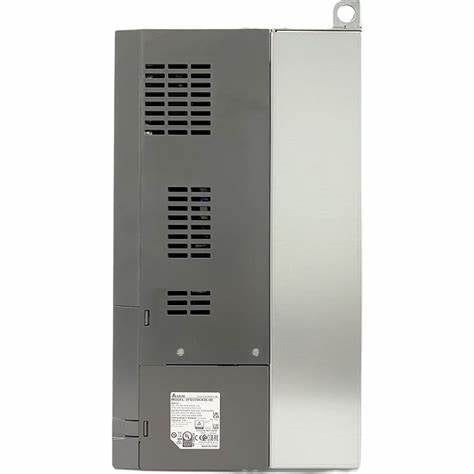

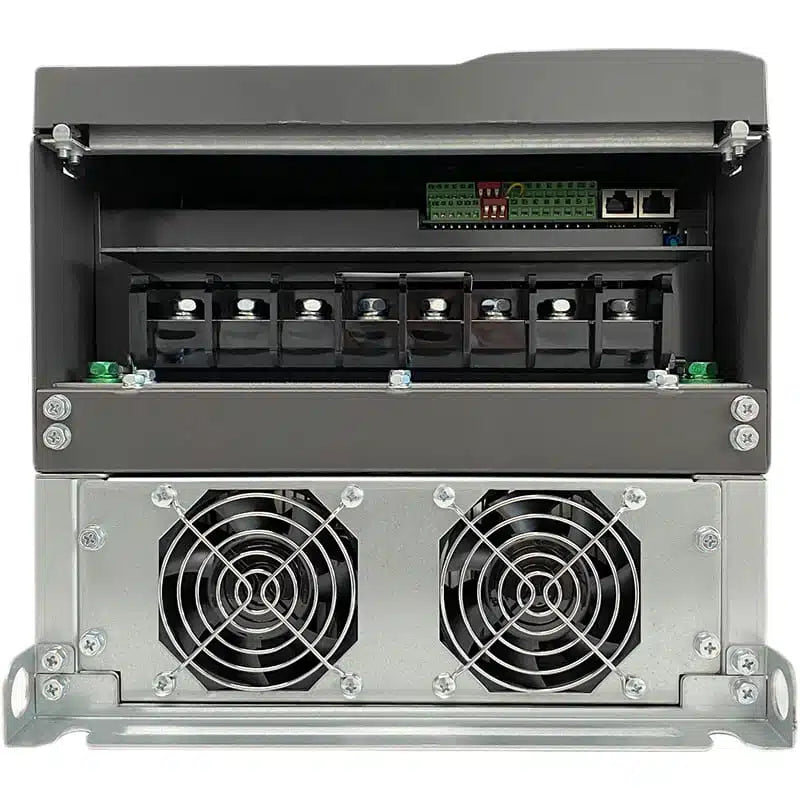

Delta VFD450C43S-00 – 60 HP C2000 Series AC Drive

The Delta VFD450C43S-00 is a high-performance AC drive from the C2000 series, engineered for advanced motor control in demanding industrial environments. It supports field-oriented control (FOC) and torque control, making it ideal for both sensor and sensorless applications.

Key Specifications:

• Power Rating: 45 kW (60 HP)
• Input Voltage: 3-phase 460V AC
• Output Current: 91A
• Control Type: Vector Control (FOC), Torque Control
• Built-in PLC: Yes, with over 300 configurable parameters
• Braking Options: DC Injection, Dynamic Braking, AC Line Regenerative
• Communication: Supports CANopen, Modbus, Ethernet/IP (via optional cards)
• Mounting Type: Chassis Mount
• Protection Rating: IP00 (open type)
• Frame Size: D0
• Operating Temperature: -10°C to +50°C

Highlights:

• Integrated LCD keypad for intuitive operation
• Closed-loop vector control for precise speed and torque regulation
• Compatible with Delta’s EMC and CMC communication modules
• Ideal for fans, pumps, conveyors, and complex automation systems
