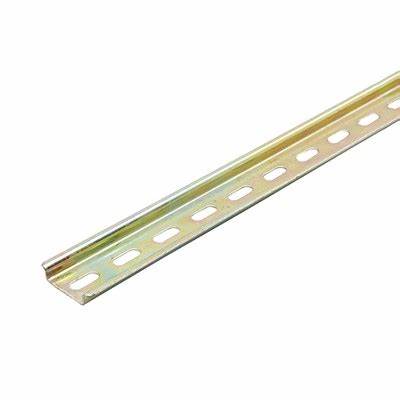

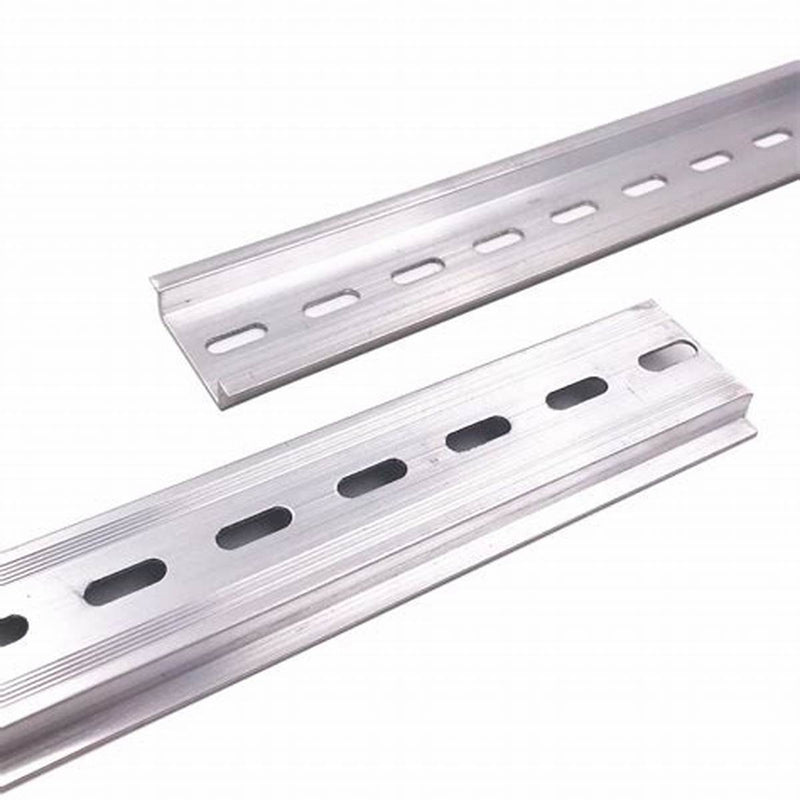

DIN Rail – 1 Meter (35mm x 7.5mm or 15mm)

Material Options: Zinc-plated steel, aluminum, or yellow passivated steel
Profile Types:

• Top Hat (TS35/7.5 or TS35/15): Most common for modular devices
• Slotted or Unslotted: Slotted rails allow easier mounting flexibility

Technical Specifications:

• Length: 1 meter
• Width: 35mm (standardized for most industrial components)
• Height: 7.5mm or 15mm depending on load requirements
• Mounting: Pre-slotted for quick installation with M4–M6 screws
• Compliance: EN 60715 / IEC 60715 / RoHS certified

Applications:

• Mounting terminal blocks, relays, PLCs, timers, and circuit breakers
• Used in control panels, distribution boards, and automation cabinets
• Suitable for residential, commercial, and industrial environments

Benefits:

• Corrosion-resistant finish ensures long-term durability
• Standardized dimensions allow compatibility across brands
• Easy customization—can be cut to size for compact enclosures
• Organized layout improves maintenance and safety
