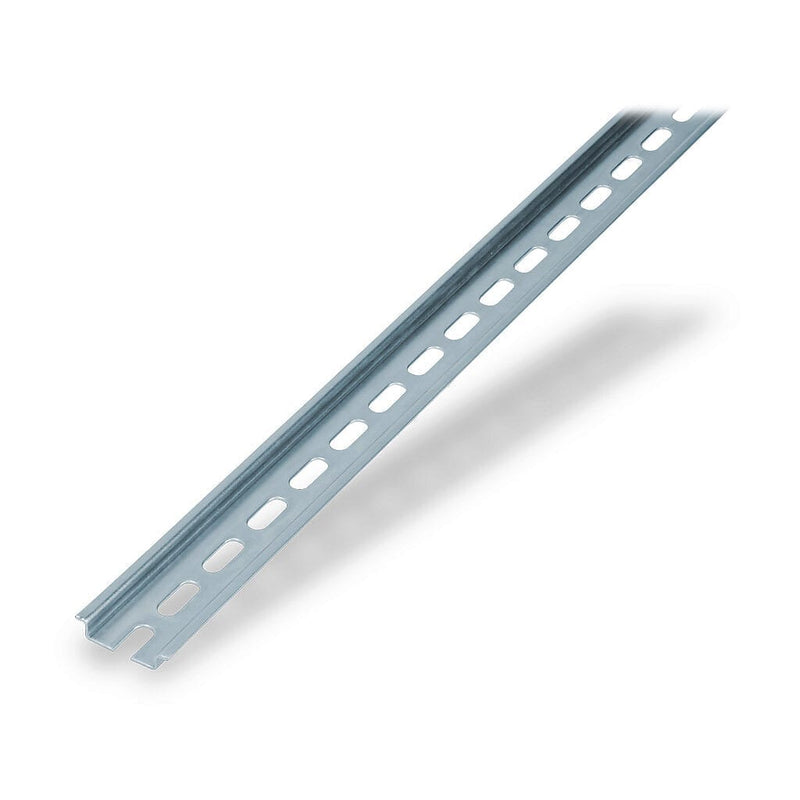

DIN Rail – 2 Meter (35mm x 7.5mm)

Length: 2000mm Material Options: Zinc-plated steel, aluminum, or copper
Profile: Top Hat (TS35/7.5 or TS35/15) Mounting: Slotted or Unslotted

Product Overview:

This 2-meter DIN Rail is designed for mounting modular electrical components in control panels and enclosures. Built to EN 60715 / DIN 46277 standards, it ensures universal compatibility with terminal blocks, relays, PLCs, and more.

Key Features:

• Standard Dimensions: 35mm width × 7.5mm or 15mm height × 2m length
• Material Finish:
• Zinc-plated steel (white or yellow passivated)

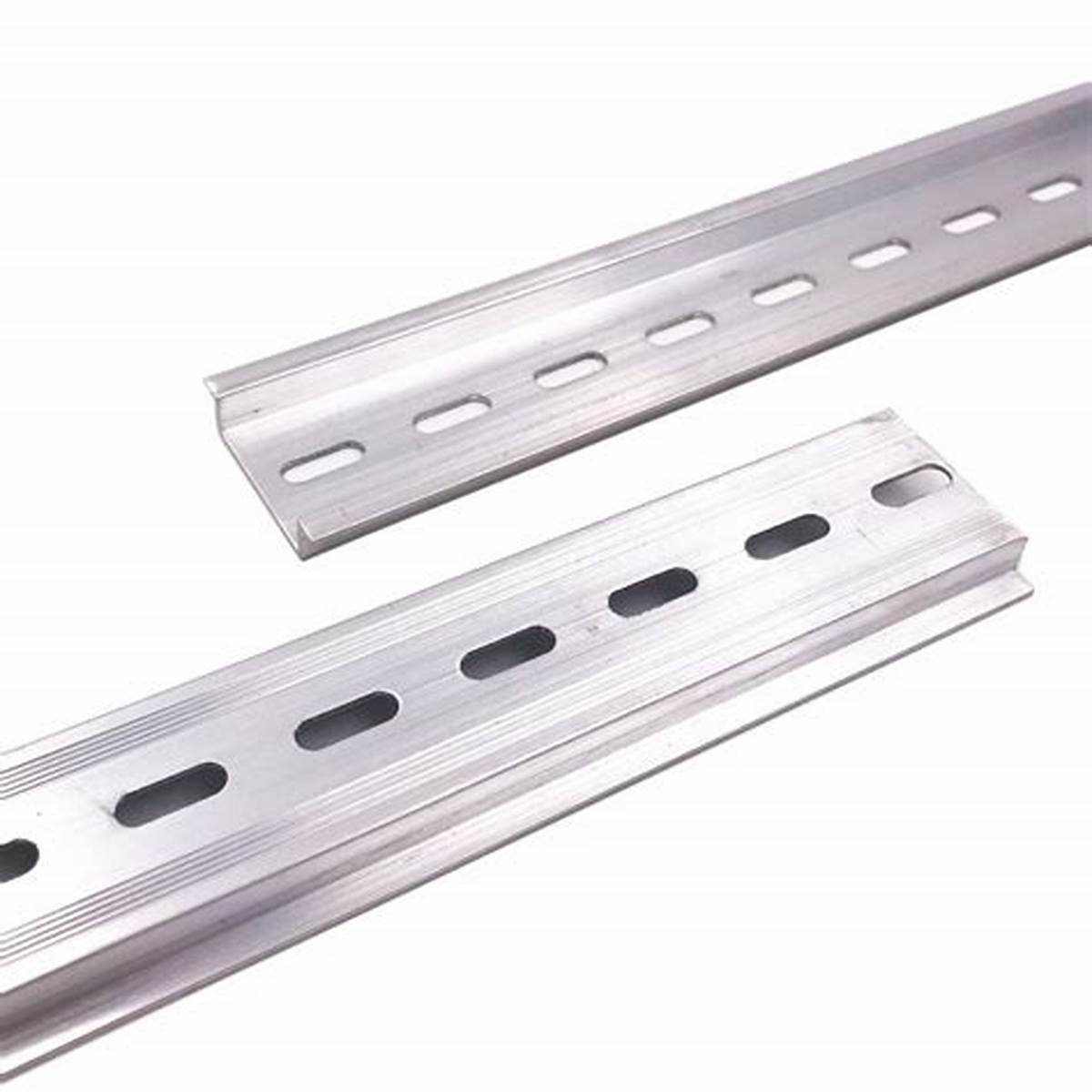

• Aluminum (lightweight, corrosion-resistant)
• Copper (for grounding/neutral busbar use)
• Mounting Type:
• Slotted (for flexible screw placement)
• Unslotted (for clean, rigid installations)
• Compliance: EN 60715, RoHS, CE certified
• Surface Coating: Zinc layer 6–12 microns; passivation film 200–400nm

Applications:

• Industrial automation panels
• Electrical distribution boards
• HVAC and building management systems
• Residential and commercial control cabinets

Benefits:

• Longer length reduces the need for joins in large enclosures
• High dimensional accuracy for seamless component alignment
• Corrosion-resistant coating for extended service life
• Customizable: Can be cut to size or pre-punched to spec
