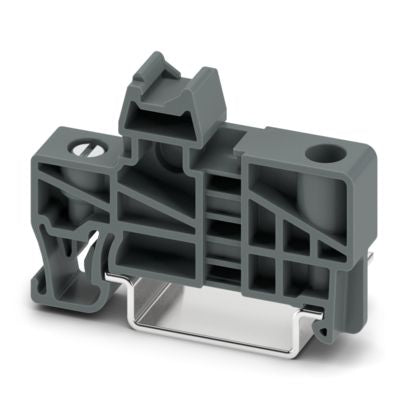

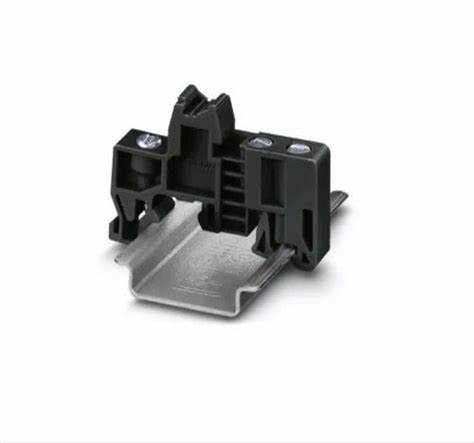

E/TB – End Bracket | Phoenix Contact (3246966)

Secure your terminal blocks with confidence.
The E/TB end bracket provides reliable mechanical support for terminal blocks mounted on DIN rails. Designed for durability and ease of installation, it ensures components remain firmly in place—even in high-vibration environments.

🔧 Technical Specifications:

• Part Number: 3246966
• Mounting Type: DIN rail (NS 35/7.5, NS 35/15)
• Material: PA (Polyamide), UL 94 V0 flame-retardant
• Color: Traffic Grey B (RAL 7043)
• Tightening Torque: 0.5 – 0.6 Nm
• Dimensions:
• Width: 9.5 mm
• Height: 50.5 mm
• Depth: 35.3 mm (NS 32), 36.8 mm (NS 35/7.5), 44.3 mm (NS 35/15)
• Weight per Piece: 9.38 g
• Made to Order: Yes (non-returnable)

🌡 Environmental Conditions:

• Operating Temperature: -60 °C to +110 °C
• Storage/Transport Temperature: -25 °C to +60 °C (short-term: -60 °C to +70 °C)
• Assembly/Actuation Temperature: -5 °C to +70 °C
• Humidity (Operation): 20% – 90%
• Humidity (Storage/Transport): 30% – 70%

🔒 Compliance & Safety:

• Fire Protection (Rail Vehicles):
• DIN EN 45545-2 (R22, R23, R24, R26 HL 1–3)
• NFPA 130 Compliance:
• Surface flammability (ASTM E 162)
• Smoke density (ASTM E 662)
• Smoke toxicity (SMP 800C)
• RoHS & REACH Compliant
• China RoHS: EFUP-E (Environmentally Friendly Use Period – Unlimited)

📦 Packaging:

• Minimum Order Quantity: 50 pcs
• Packaging Unit: 50 pcs
• Country of Origin: India
• Customs Tariff Code: 39269097
• GTIN: 4046356706247
