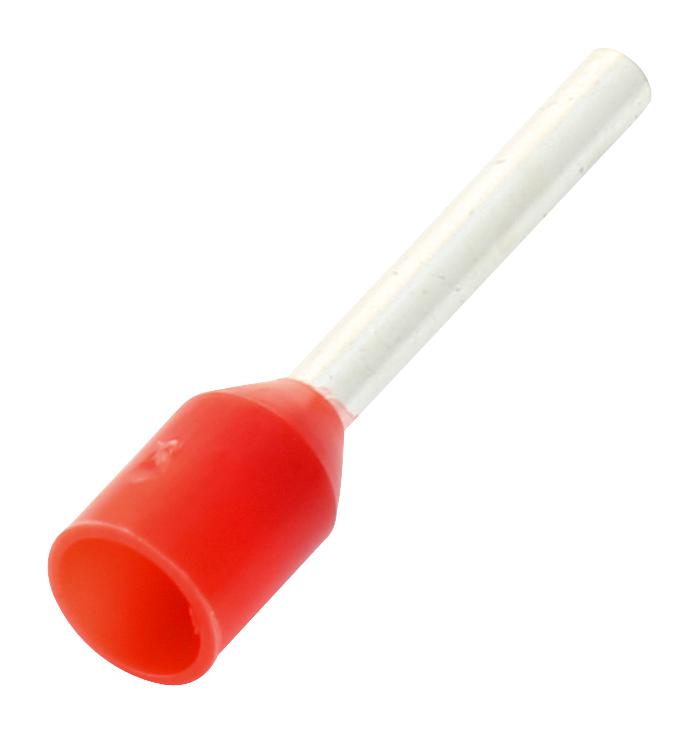

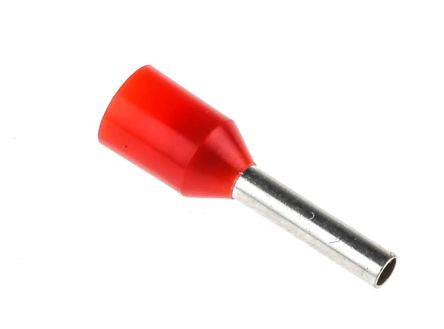

E1008 Bootlace Ferrule – 1.0 mm² (18 AWG), Red Insulated, 8 mm Pin Length

The E1008 is a high-quality insulated wire ferrule designed for 1.0 mm² (18 AWG) stranded wire terminations. It provides a clean, secure, and professional finish for multi-stranded wires, ensuring optimal conductivity and preventing wire strand fraying during insertion into terminal blocks.

Key Features:

• Wire Size: 1.0 mm² (18 AWG)
• Pin Length: 8 mm
• Total Length: ~14.5 mm
• Material: Tinned copper tube for excellent conductivity
• Insulation: Red PVC sleeve for easy identification and added protection
• Standards: Conforms to DIN 46228 Part 1 and 4
• Voltage Rating: Up to 600V
• Temperature Rating: -40°C to +105°C

Benefits:

• Prevents wire strand breakage and short circuits
• Ensures 100% contact with terminal blocks
• Simplifies insertion into screw or spring clamp terminals
• Ideal for high-vibration environments and compact wiring layouts

Applications:

• Electrical control panels
• Industrial automation systems
• Terminal block connections
• General-purpose wiring and maintenance
