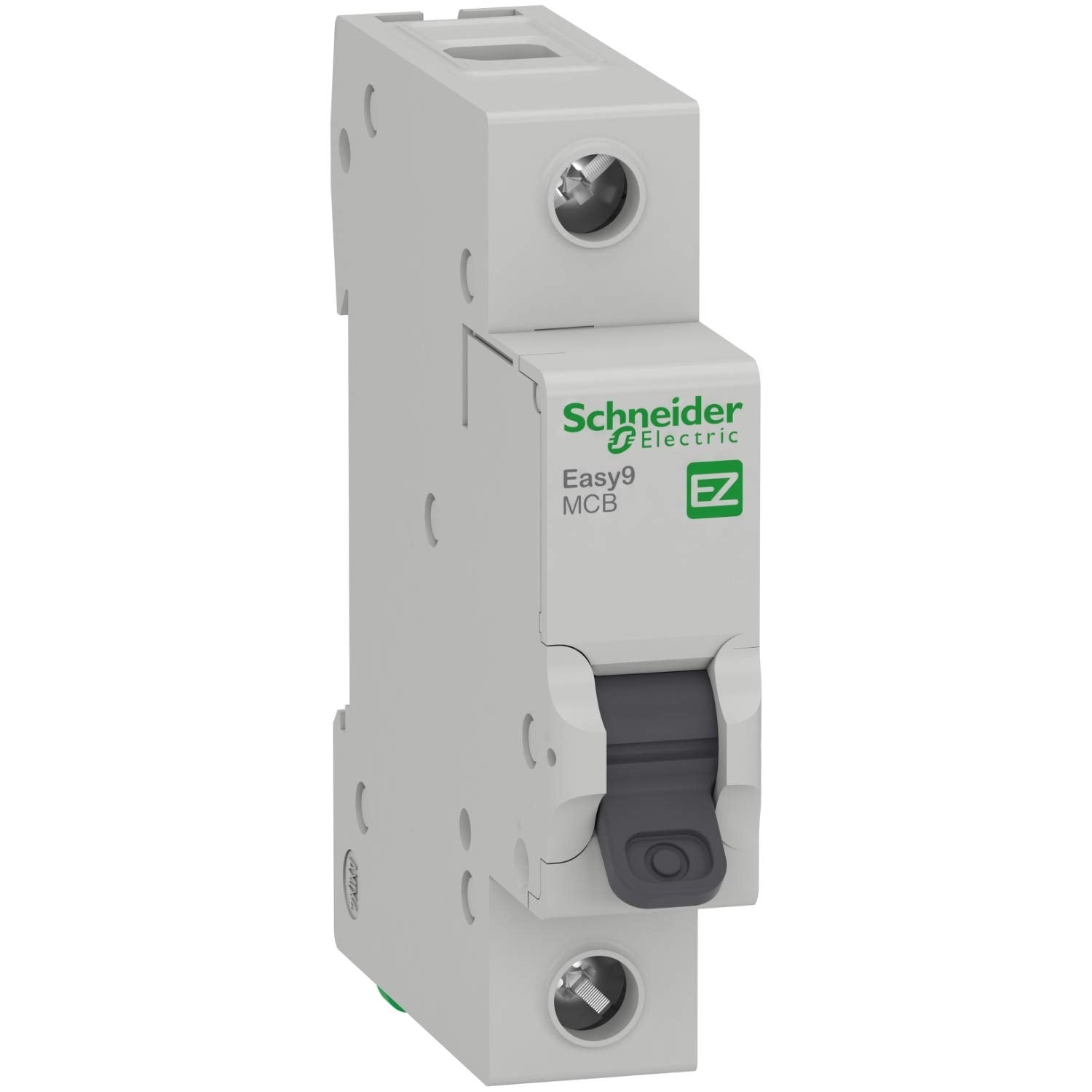

EZ9F56163 – Schneider Easy9 Miniature Circuit Breaker 63A, 1 Pole, C Curve, 6000A Breaking Capacity

Product Description
The Schneider Electric EZ9F56163 Easy9 Miniature Circuit Breaker (MCB) provides reliable protection against overloads and short circuits in residential distribution systems. With a 63A rating and C-curve tripping characteristic, it is ideal for circuits with moderate inrush currents such as lighting, HVAC units, and power outlets.

Key Features:
•     Rated Current: 63A for heavy-load residential circuits
•     Poles: Single-pole (1P) configuration
•     Curve Type: C Curve, suitable for resistive and inductive loads
•     Breaking Capacity: 6000A at 230V AC / 10,000A at 127V AC
•     Trip Technology: Thermal-magnetic mechanism for dual-mode protection
•     Voltage Range: 230V AC / 127V AC, 50/60 Hz
•     Magnetic Tripping Limit: 5 to 10 × In
•     Insulation Voltage: 500V AC
•     Impulse Withstand Voltage: 4kV
•     Isolation Capability: Fully compliant with IEC 60898-1
•     Environmental Compliance: RoHS and REACH certified
•     Eco Packaging: Made with 70% recycled cardboard

Applications: Ideal for residential distribution boards, the EZ9F56163 is suited for circuits powering lighting, air conditioning units, and general-purpose outlets. Its compact design and standardized terminals simplify installation and maintenance.

Why Choose Easy9? Schneider Electric’s Easy9 series is known for its safety, simplicity, and sustainability. The EZ9F56163 offers robust protection, clear wiring indicators, and a durable build—making it a trusted choice for electricians and homeowners alike.
