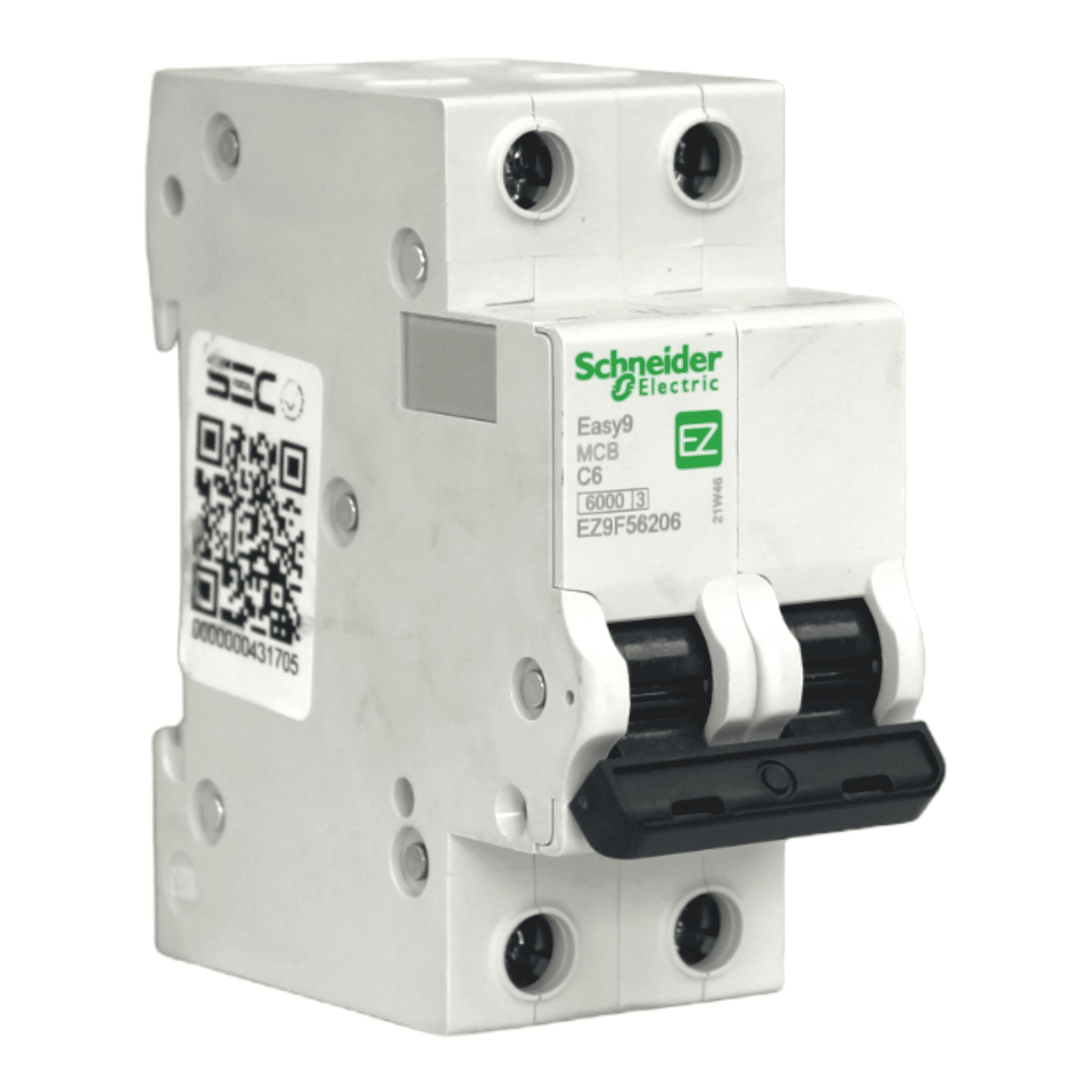

EZ9F56206 – Schneider Easy9 Miniature Circuit Breaker 6A, 2 Pole, C Curve, 6000A Breaking Capacity

Product Description
The Schneider Electric EZ9F56206 Easy9 Miniature Circuit Breaker (MCB) offers reliable protection against overloads and short circuits in dual-phase residential circuits. With a 6A rating and C-curve response, it’s ideal for lighting and socket outlet applications with moderate inrush currents.

Key Features:
•     Rated Current: 6A for low-load circuits
•     Poles: 2P (two protected poles)
•     Curve Type: C Curve, suitable for resistive and inductive loads
•     Breaking Capacity:
•     10,000A at 220V AC (Icn)
•     6,000A at 400V AC (Icn)
•     Trip Technology: Thermal-magnetic mechanism for dual-mode protection
•     Voltage Range: 220V AC / 400V AC, 50/60 Hz
•     Magnetic Tripping Limit: 5 to 10 × In
•     Insulation Voltage: 500V AC
•     Impulse Withstand Voltage: 4kV
•     Isolation Capability: Fully compliant with IEC/EN 60898-1
•     Environmental Compliance: RoHS and REACH certified
•     Eco Packaging: Made with minimum 70% recycled cardboard

Applications: The EZ9F56206 is ideal for residential distribution boards requiring dual-pole protection. It’s suited for lighting circuits, socket outlets, and small appliances in split-phase systems. Its compact design and unified terminal layout simplify installation and maintenance.

Why Choose Easy9? Schneider Electric’s Easy9 series is trusted for its safety, simplicity, and sustainability. The EZ9F56206 provides robust protection, clear wiring indicators, and a durable build—making it a reliable choice for electricians and homeowners.
