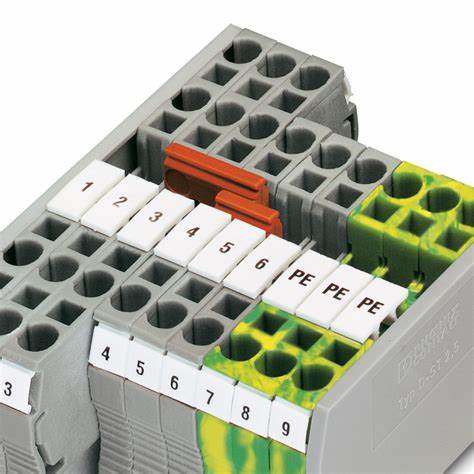

FBS 2-6 – Plug-in Bridge | Phoenix Contact (3030336)

Efficient bridging. Compact design.
The FBS 2-6 is a 2-position plug-in bridge designed to simplify electrical bridging between terminal blocks. With a 6.2 mm pitch and robust copper construction, it ensures reliable current distribution across modular systems.

🔧 Technical Specifications:

• Part Number: 3030336
• Number of Positions: 2
• Pitch: 6.2 mm
• Color: Red (RAL 3001)
• Material: Copper with PA insulating body
• Flammability Rating: UL 94 V0
• Mounting Type: Plug-in
• Weight per Piece: 1.874 g
• Dimensions:

• Width: 10.7 mm
• Height: 23 mm
• Depth: 23 mm

⚡ Electrical Properties:

• Maximum Load Current: 32 A
  (Note: Current rating may vary depending on the terminal block used)

🌡 Environmental Conditions:

• Operating Temperature: -60 °C to +110 °C
• Storage/Transport Temperature: -25 °C to +60 °C (short-term: -60 °C to +70 °C)
• Assembly/Actuation Temperature: -5 °C to +70 °C
• Humidity (Operation): 20% – 90%
• Humidity (Storage/Transport): 30% – 70%

📦 Packaging & Compliance:

• Minimum Order Quantity: 50 pcs
• Packaging Unit: 50 pcs
• Country of Origin: Germany
• Customs Tariff Code: 85366990
• RoHS & REACH Compliant
• China RoHS EFUP: Unlimited (EFUP-E)
