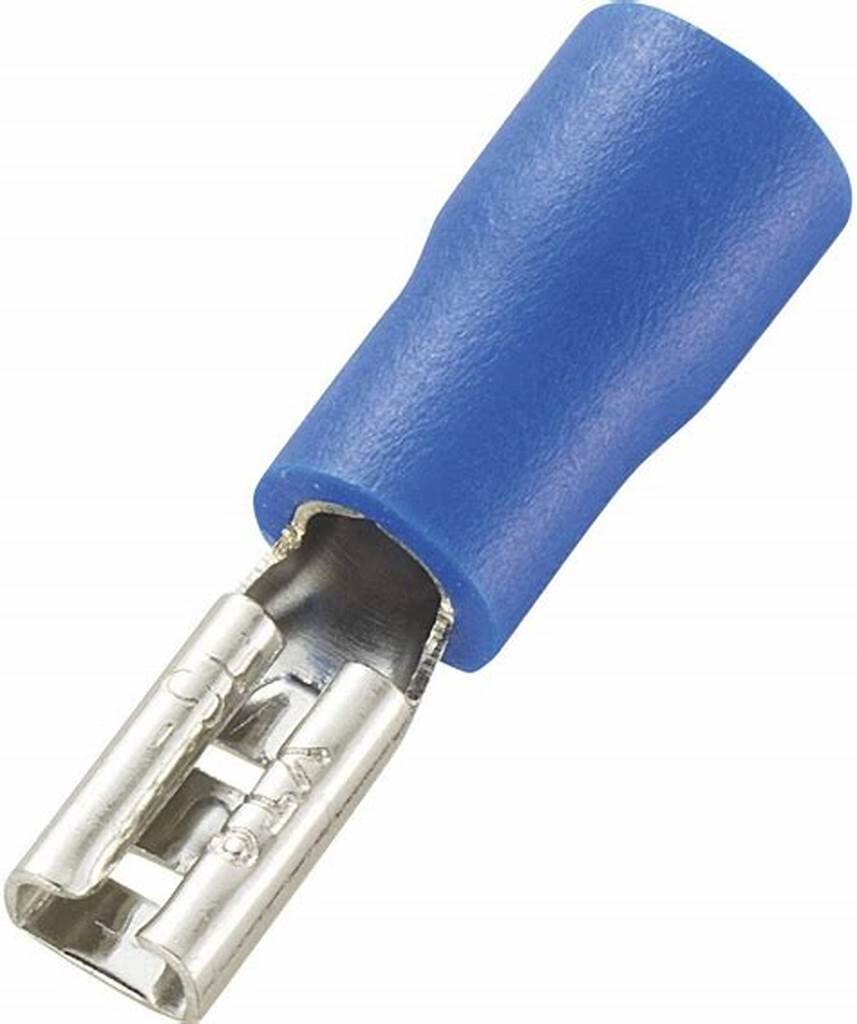

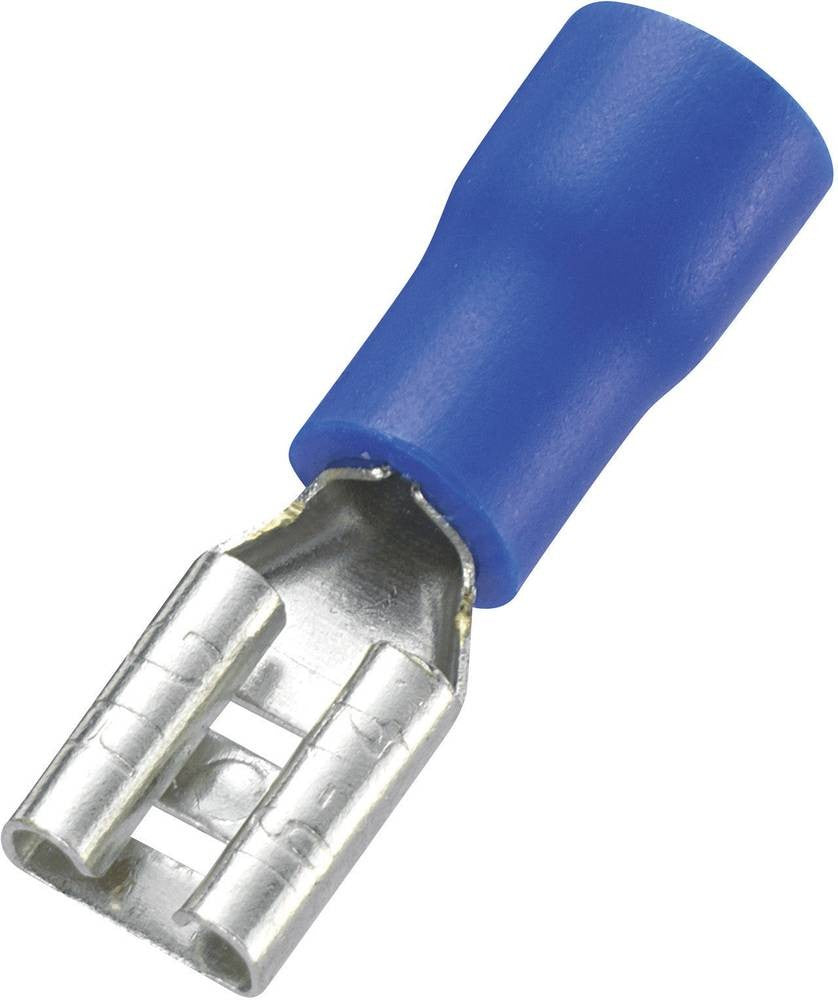

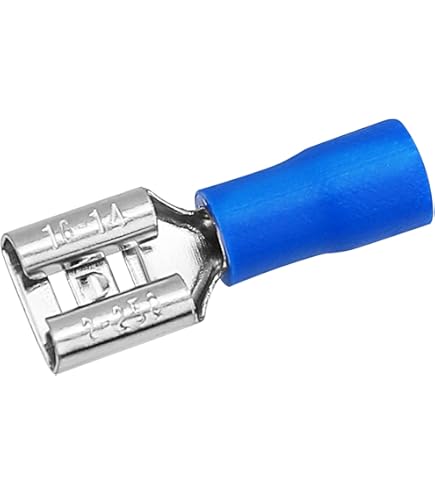

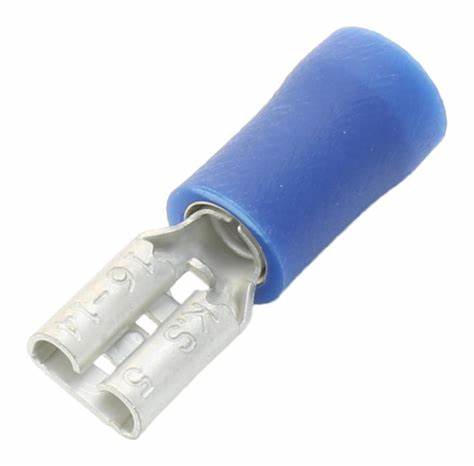

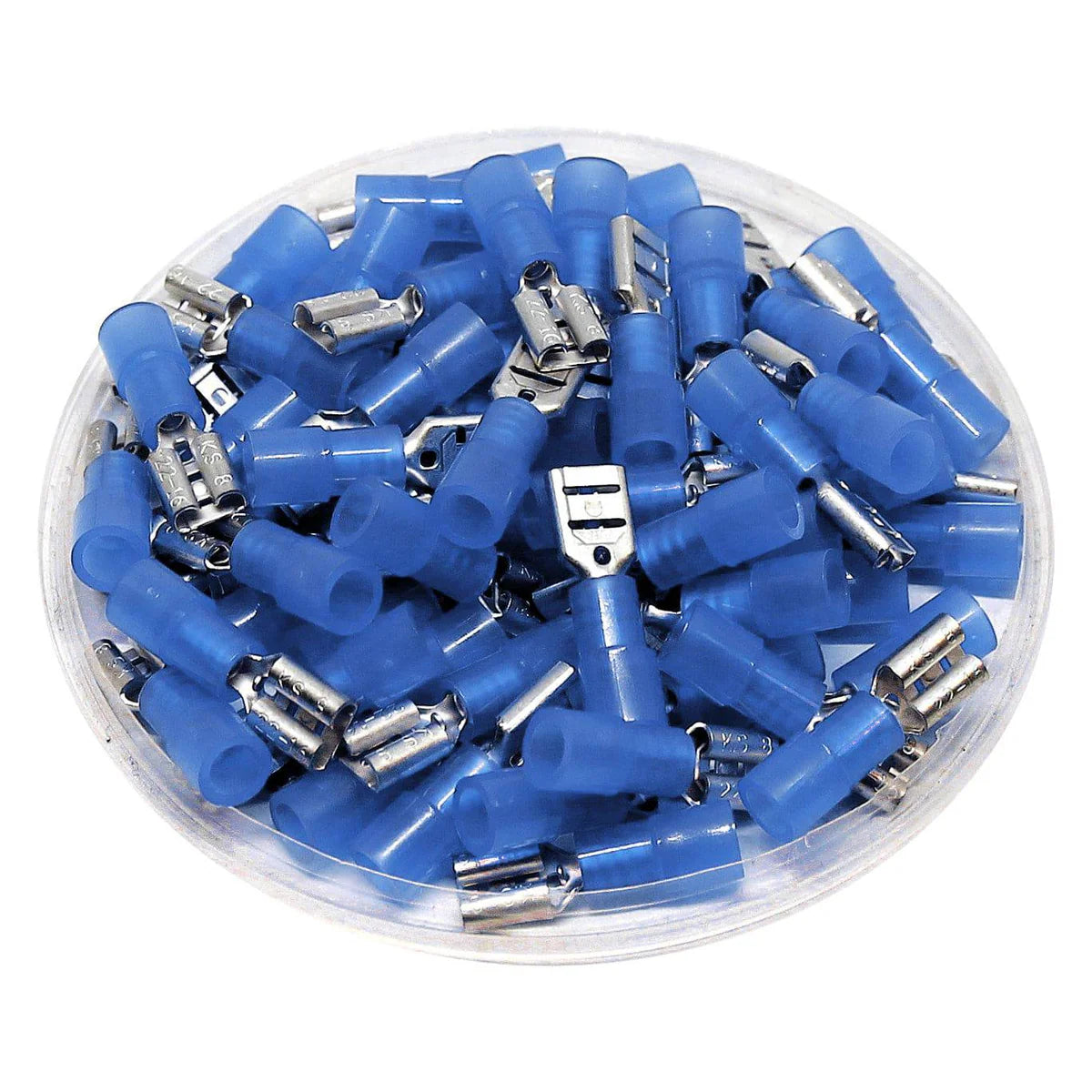

The FDD2-187 is a high-performance female quick disconnect terminal designed for 1.5–2.5 mm² (16–14 AWG) wire connections. With its insulated body and 4.75 mm (0.187") tab interface, it ensures fast, secure, and vibration-resistant terminations in control panels, automotive systems, and industrial wiring setups.
Key Features:
Wire Range: 1.5–2.5 mm² (16–14 AWG)
Tab Size: 4.75 mm × 0.5 mm (0.187" × 0.02")
Material: Tin-plated brass for excellent conductivity and corrosion resistance
Insulation: Blue vinyl (PVC) for added protection and easy identification
Rated Current: Up to 15A
Operating Temperature: -40°C to +105°C
Connection Method: Cold crimp (non-soldered)
Benefits:
Quick and secure mating with male terminals like MDD2-187
