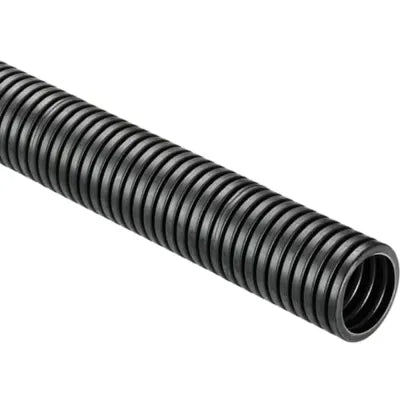

Flexible Conduit – 30mm, Black, 50M Roll

Material Options:

• Polyamide 6 (PA6): High flexibility, excellent fatigue life, and chemical resistance
• PVC: Flame-retardant, UV-resistant, and cost-effective (varies by manufacturer)

Key Specifications (PA6 example – Harnessflex NC30-S/50M)

• Outer Diameter: 31.6 mm
• Inner Diameter: 26.0 mm
• Length: 50 meters per roll
• Color: Black
• Bend Radius: 50 mm (static)
• Temperature Range:
• Continuous: -40°C to +120°C
• Short-term: up to 170°C
• Ingress Protection: IP40–IP68 (depending on fittings)
• UV Resistance: Very high (black variant)
• Compliance: RoHS3, REACH, TSCA, POPs compliant

Features:

• High abrasion and impact resistance
• Self-extinguishing and halogen-free (PA6)
• Compatible with NC30/NW26 fittings
• Available in slit and non-slit versions
• Ideal for engine bays, control panels, and outdoor use

Applications:

• Automotive harness protection
• Industrial automation and robotics
• Electrical wiring in harsh environments
• Solar and renewable energy systems
