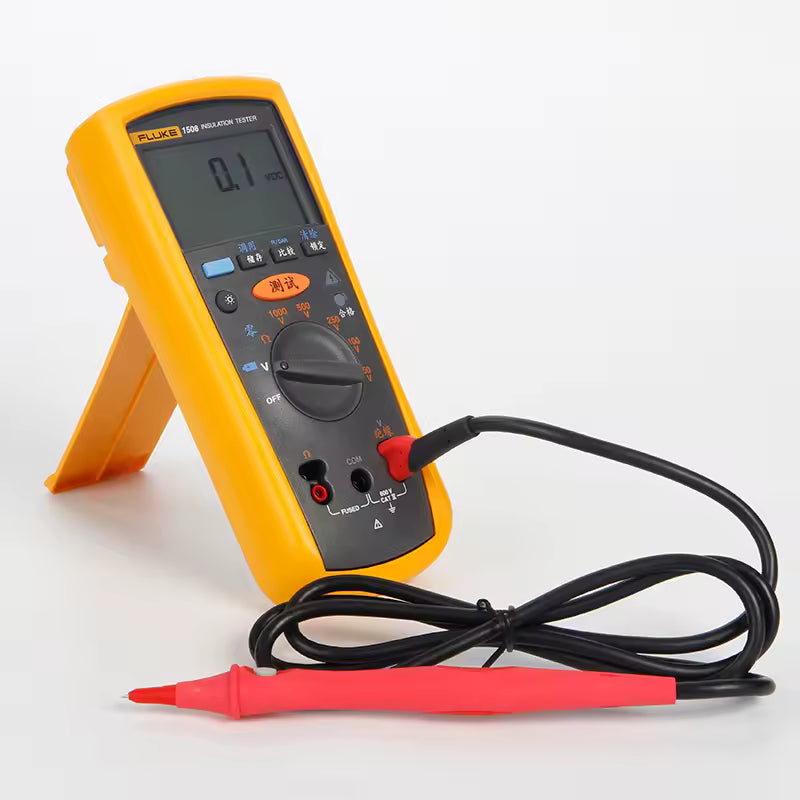

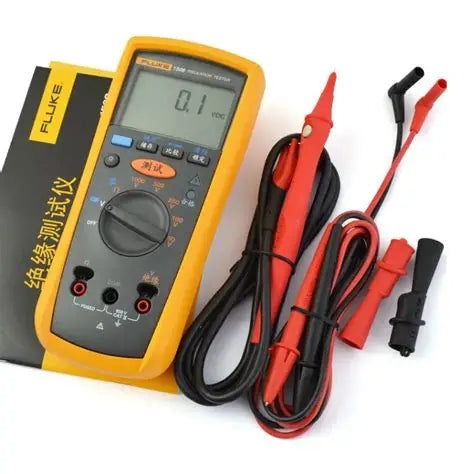

Fluke 1508 Insulation Resistance Tester – 50V to 1000V, Up to 10 GΩ Range

Fluke 1508 Insulation Resistance Tester – 50V to 1000V, Up to 10 GΩ Range

GH₵12,850.00
GH₵15,000.00 GH₵12,850.00
Sale Sold out

Short Description:
High-performance, compact insulation resistance tester for professional electricians and maintenance teams. Offers five test voltages, up to 10 GΩ measurement, and built-in continuity testing — all in a rugged, handheld design.

Product Overview:
The Fluke 1508 Insulation Resistance Tester is a compact, reliable, and highly accurate tool for insulation testing in residential, commercial, and industrial applications. It’s engineered for electricians, contractors, and maintenance technicians who need fast, safe, and accurate insulation diagnostics on equipment such as motors, switchgear, cables, and wiring.

This unit delivers multiple test voltages (50V to 1000V) and advanced features like a remote test probe, automatic voltage detection, and continuity testing — all backed by Fluke’s reputation for durability and precision.

🔍 Technical Specifications:

Feature Details
Insulation Test Voltages 50 V, 100 V, 250 V, 500 V, 1000 V
Resistance Range Up to 10 GΩ
Continuity Test Yes (200 mA current)
Resistance Measurement 0.01 Ω to 20.00 kΩ
Voltage Measurement 0 V to 600 V AC/DC
Display Backlit digital LCD
Remote Test Probe Included
Auto Discharge Function Yes (for capacitive voltage)
Test Lock Function Yes (for timed measurements)
Safety Rating CAT IV 600 V / CAT III 1000 V
IP Rating IP40
Power Supply 4 × AA alkaline batteries
Size (H x W x D) 203 × 100 × 50 mm
Weight Approx. 600 g

🔧 Key Features & Benefits:

  • ✅ 5 Test Voltages (50V–1000V): Choose the right test level for different insulation materials and system voltages.

  • ✅ High Resistance Testing (Up to 10 GΩ): Perfect for quality testing and troubleshooting in motors, transformers, and cables.

  • ✅ Built-in Continuity and Resistance Testing: Saves time — no need to switch tools.

  • ✅ Remote Probe Included: Easily test hard-to-reach circuits with hands-free stability.

  • ✅ Auto Voltage Detection & Discharge: Safety-first design with automatic alert and discharge.

  • ✅ Compact & Rugged: Portable for field use; built to withstand industrial environments.

📦 What’s in the Box:

  • 1 × Fluke 1508 Insulation Resistance Tester

  • 1 × Remote Test Probe

  • 1 × Set of Test Leads & Alligator Clips

  • 4 × AA Batteries

  • 1 × Soft Carry Case

  • 1 × Quick Start Guide / User Manual

Ideal For:

  • 🏠 Residential & commercial electricians

  • 🏭 Industrial maintenance technicians

  • ⚡ Electrical contractors

  • 🔌 Cable, panel, and motor insulation diagnostics

  • 🧰 Routine equipment testing & commissioning



View full details
