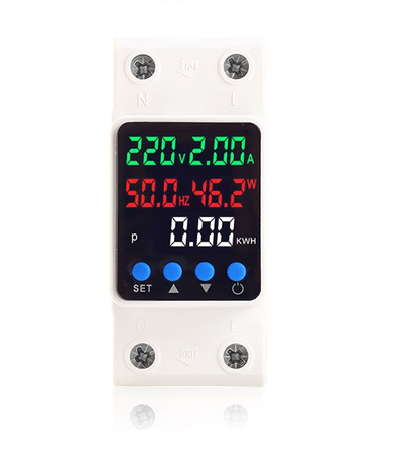

GPS6-VAFDM 63A Soltree 6-in-1 Over/Under Voltage & Current Protection with Energy Metering and Power Monitoring
SKU: GPS6-VAFDM-63A
The GPS6-VAFDM (Soltree 6-in-1) is a 63A DIN-rail mounted Over/Under Voltage & Current Protection Relay with integrated Energy Metering and Power Monitoring. The most advanced model in the GPS6 range, combining comprehensive protection with real-time energy statistics on a...
In Stock
GH₵350.50
The GPS6-VAFDM (Soltree 6-in-1) is a 63A DIN-rail mounted Over/Under Voltage & Current Protection Relay with integrated Energy Metering and Power Monitoring. The most advanced model in the GPS6 range, combining comprehensive protection with real-time energy statistics on a multi-colour LED display.
6-in-1 Functions
- Over/Under Voltage Protection — auto-disconnects on voltage faults
- Overcurrent Protection — safeguards loads from excess current
- Power Display (W) — real-time power consumption readout
- Frequency Display (Hz) — live supply frequency monitoring
- Energy Metering (kWh) — cumulative energy consumption tracking
- Voltage & Current Display (V/A) — simultaneous V and A readout
- Real-Time LED Monitoring — multi-colour display for instant status
Technical Specifications
- Supply Terminals: N, L
- Rated Supply Voltage: AC 220V
- Rated Frequency: 50/60Hz
- Overvoltage Setting Range: AC 240–300V
- Undervoltage Setting Range: AC 140–230V
- Voltage Hysteresis: 5V
- Overvoltage Trip Delay: 0.5s
- Voltage Accuracy: < ±1%
- Max. Operating Phase Voltage: 350V
- Max. Operating Current: 40A / 63A / 80A / 100A
- Delay Time: 5–300s (adjustable)
- Ambient Temperature: -25°C ~ +55°C
- Size: 81 × 36 × 66mm
- Mounting: DIN-Rail
