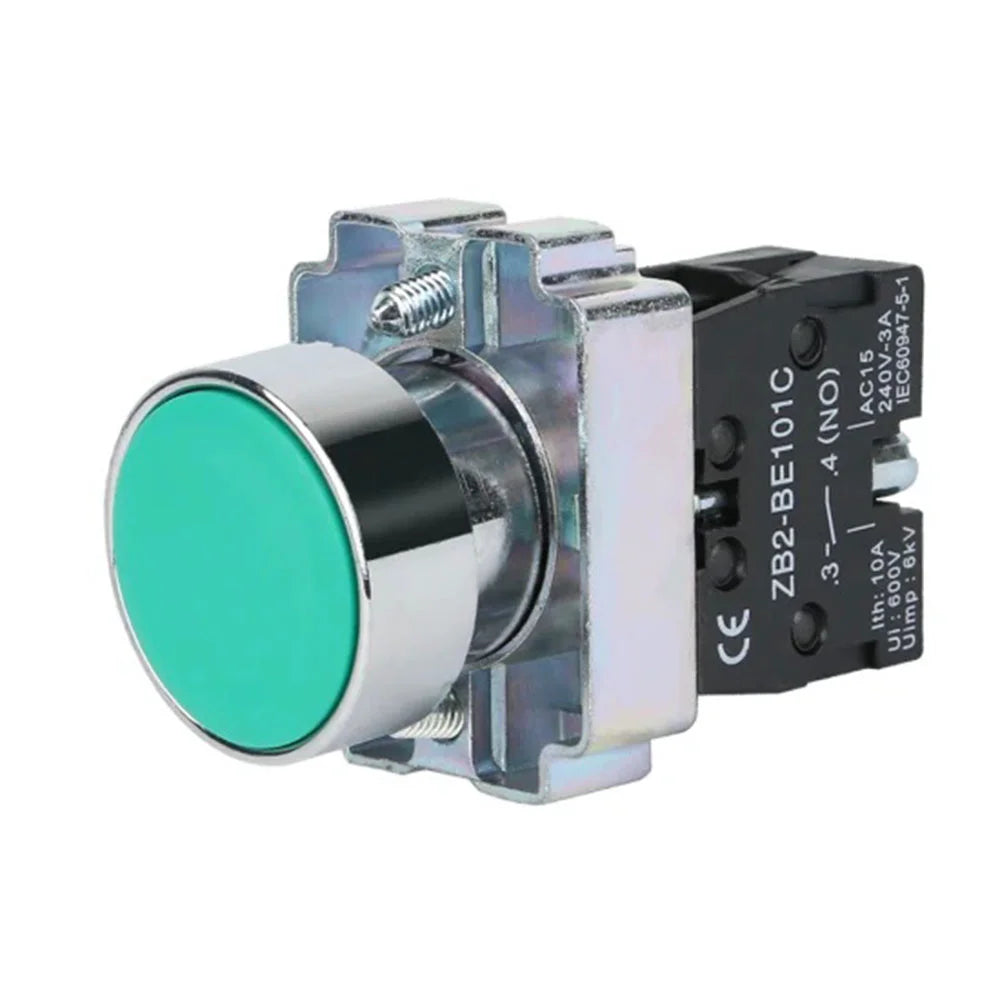

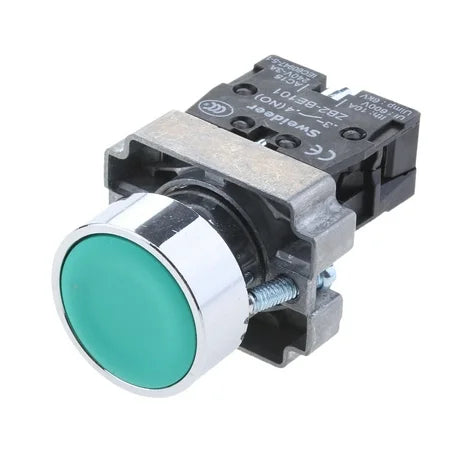

Green Push Button – Momentary Type

Function: Normally Open (NO) Mounting Hole: 22mm Operation: Momentary (spring return)

Product Overview:

This Green Push Button is designed for start functions, machine control, or status indication. Its vibrant green actuator ensures clear visibility and intuitive operation in both illuminated and non-illuminated variants.

Key Specifications:

• Contact Configuration: 1NO / 1NC / 1NO+1NC (customizable)
• Voltage Rating: 24V / 110V / 220V AC/DC
• Current Rating: 3A to 10A depending on model
• Material:
• Cap: Durable polycarbonate or thermoplastic
• Body: Flame-retardant ABS or metal alloy
• Mounting Type: Panel mount with screw or clamp terminals
• Ingress Protection: IP65 or higher (dust-tight and water-resistant)
• Mechanical Life: ≥ 1,000,000 operations
• Operating Temperature: -25°C to +70°C

Features:

• High-visibility green actuator for start or go functions
• Snap-action mechanism for reliable tactile feedback
• Optional LED illumination (steady or flashing)
• Compatible with standard 22mm or 30mm panel cutouts
• CE, RoHS, and UL compliant

Applications:

• Start buttons in motor control circuits
• Operator panels and HMIs
• HVAC and building automation
• Safety and signaling systems
