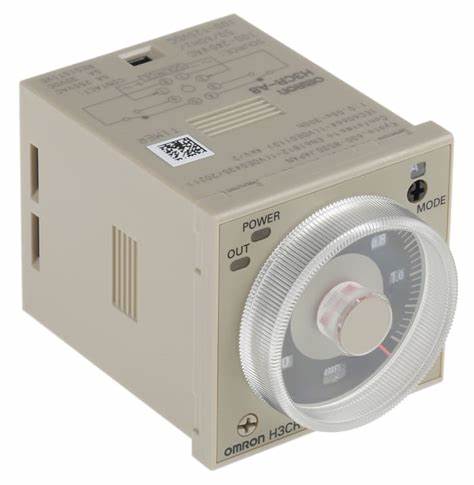

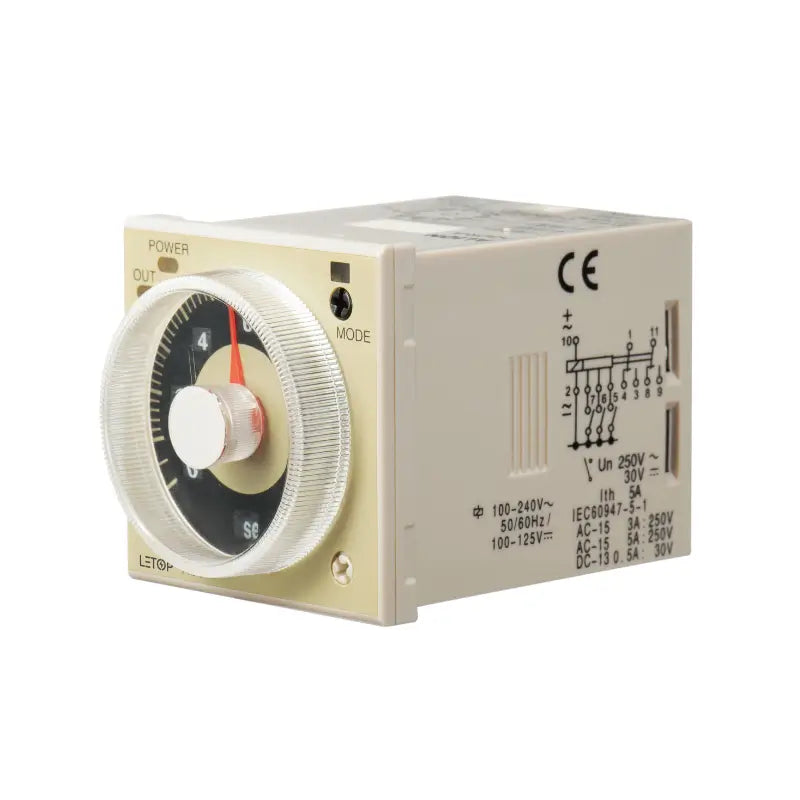

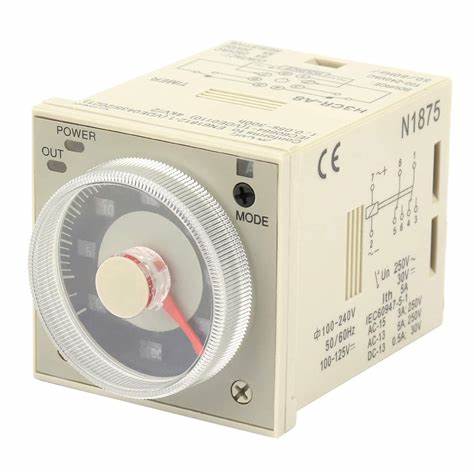

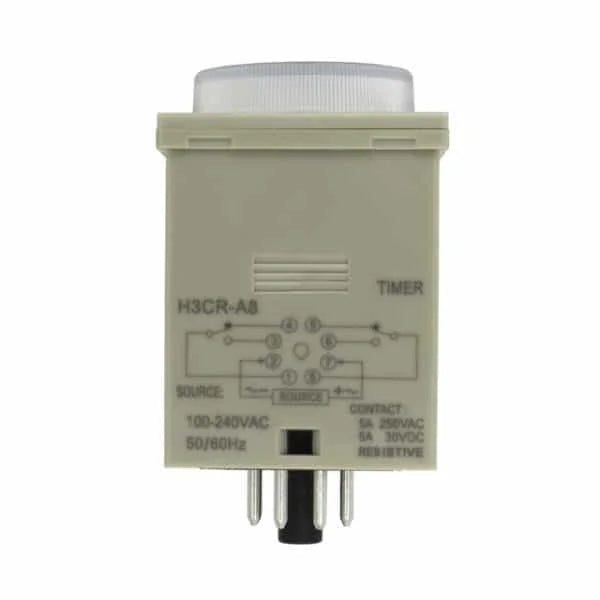

H3CR-A8 – Multi-Function Analog Timer Relay

Supply Voltage: 100–240V AC / 100–125V DC Mounting: 8-pin plug-in (DIN 48 × 48 mm)
Output Type: DPDT (2 Form C) relay contact Time Range: 0.05 seconds to 300 hours

Key Specifications:

• Operating Modes:
• ON-delay
• Flicker ON start
• Flicker OFF start
• Interval
• One-shot output
• Time Range Settings: 18 ranges selectable via rotary switch
• Contact Rating:
• 5A @ 250V AC (resistive)
• 5A @ 30V DC
• Power Consumption:
• Relay ON: ~2.0 VA / 1.6 W
• Relay OFF: ~1.3 VA / 1.1 W
• Reset Time: ≤ 0.1 seconds
• Accuracy: ±0.2% FS max.
• Ambient Temp: -10°C to +55°C
• Protection: Panel surface IP40, terminals IP00
• Weight: Approx. 90g

Features:

• Wide voltage compatibility for AC/DC systems
• Precise analog dial for time setting
• LED indicators for power and output status
• Compact design for space-saving panel integration
• Long electrical life: 100,000 operations minimum

Applications:

• Conveyor and motor delay control
• Lighting and HVAC sequencing
• Industrial process timing
• Safety interlocks and alarms
