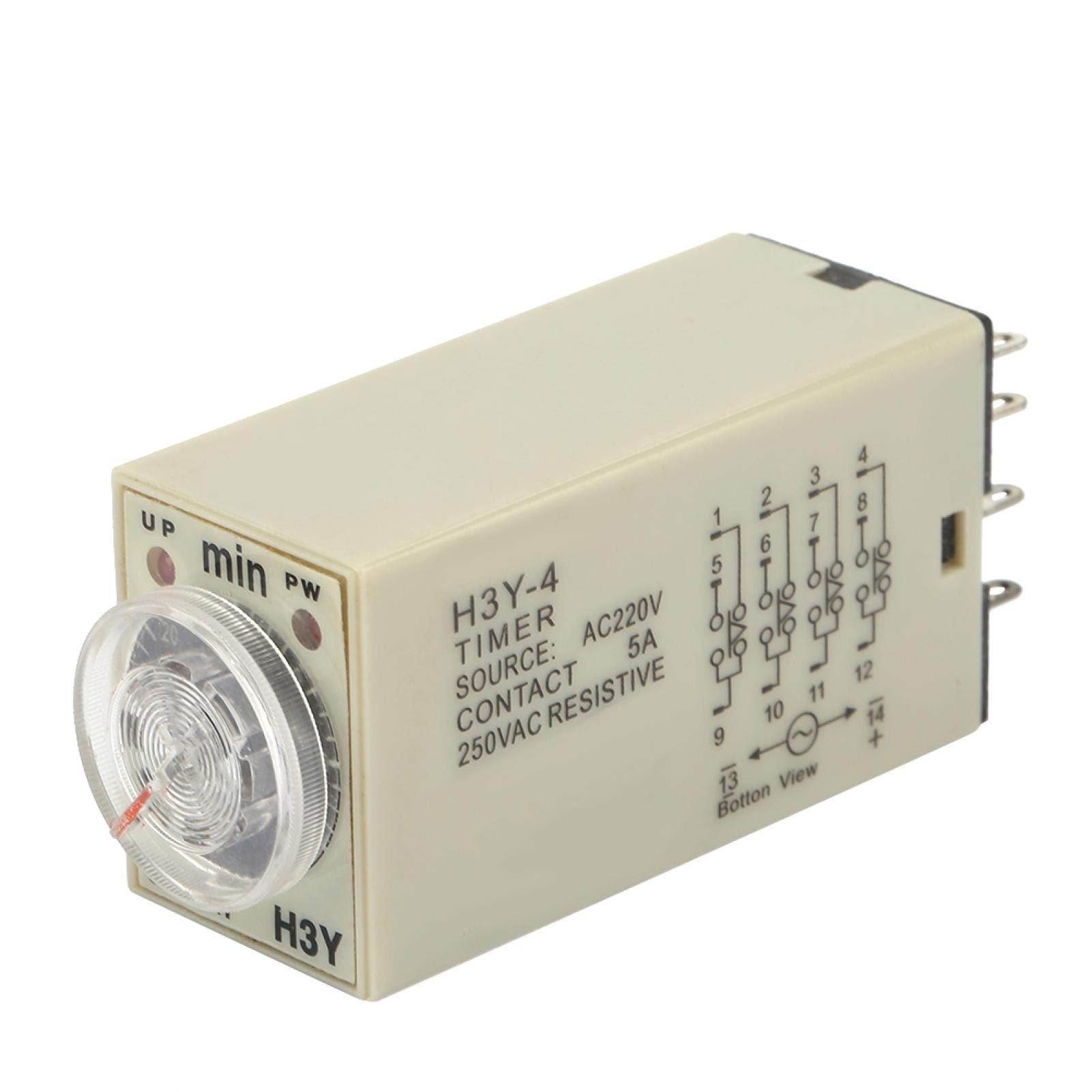

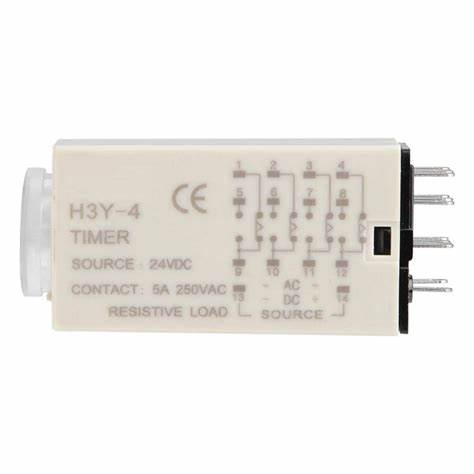

H3Y-4 – 220VAC Time Delay Relay

Supply Voltage: 220V AC (50/60 Hz) Mounting: 14-pin plug-in (DIN 48 × 48 mm)
Output Type: 4PDT (4 Form C) relay contact Time Range: 0.1 seconds to 60 minutes (model-dependent)

Key Specifications:

• Time Delay Modes: ON-delay (standard)
• Selectable Time Ranges:
• 0.1–1s, 0.2–5s, 0.5–10s
• 1–30s, 2–60s
• 0.1–3min, 1–30min, 2–60min
• Contact Rating: 3A @ 250V AC / 30V DC (resistive load)
• Power Consumption: ~1.8 VA @ 230V AC
• Reset Time: ≤0.1s
• Repeat Accuracy: ±1%
• Setting Error: ±10% ±0.05s
• Ambient Temp: -10°C to +50°C
• Humidity: 35–85% RH (non-condensing)
• Dimensions: 22 × 28 × 64 mm
• Weight: ~50g
• Enclosure Rating: IP40 (front panel)

Features:

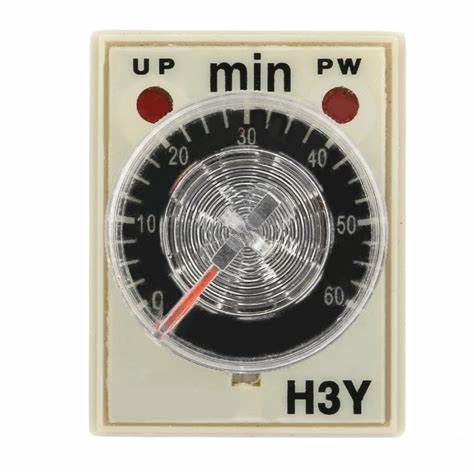

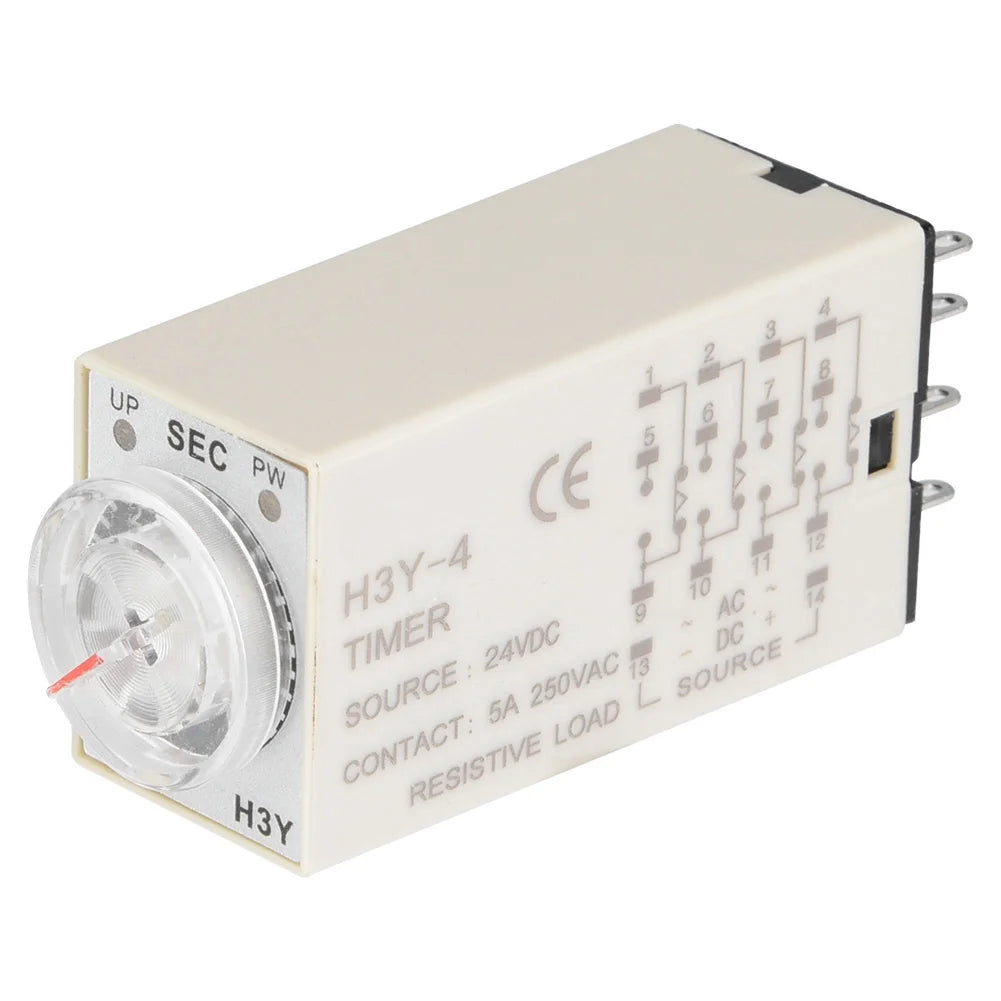

• Large rotary knob for precise time setting
• LED indicators for power and output status
• Compact design compatible with MY relay sockets
• Long mechanical life: 10 million operations
• Electrical life: 200,000 operations (at rated load)

Applications:

• Conveyor and motor delay control
• Lighting and HVAC sequencing
• Process timing in automation panels
• Safety interlocks and alarms
