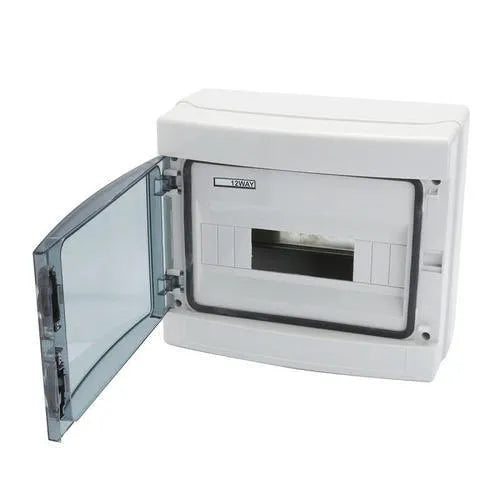

HA12 Waterproof Plastic Consumer Unit Circuit Box IP65

HA12 Waterproof Plastic Consumer Unit Circuit Box — IP65

The HA12 is a waterproof plastic consumer unit (circuit box) rated IP65, designed for use in special waterproof, dustproof, and corrosion-proof locations. Compliant with IEC60529 and EN 60309, it is ideal for outdoor distribution boards, industrial installations, and wet or corrosive environments where a wider MCB enclosure with transparent door is required. The HA12 is the largest in the HA series, offering a wide 298mm body to accommodate up to 12 circuit breakers.

Technical Specifications

• Order code: HA12
• External dimensions: 298 x 260 x 122mm (W x H x D)
• Internal dimensions: 298 x 252mm (W x H) / internal height 258mm
• Protection rating: IP65 waterproof and dustproof
• Standard: IEC60529, EN 60309
• Material: ABS plastic, UV-resistant, flame-retardant, corrosion-resistant
• Transparent smoke door for circuit visibility without opening
• Lockable door with key
• Suitable for indoor and outdoor installation
• Colour: Grey body / smoke transparent door
