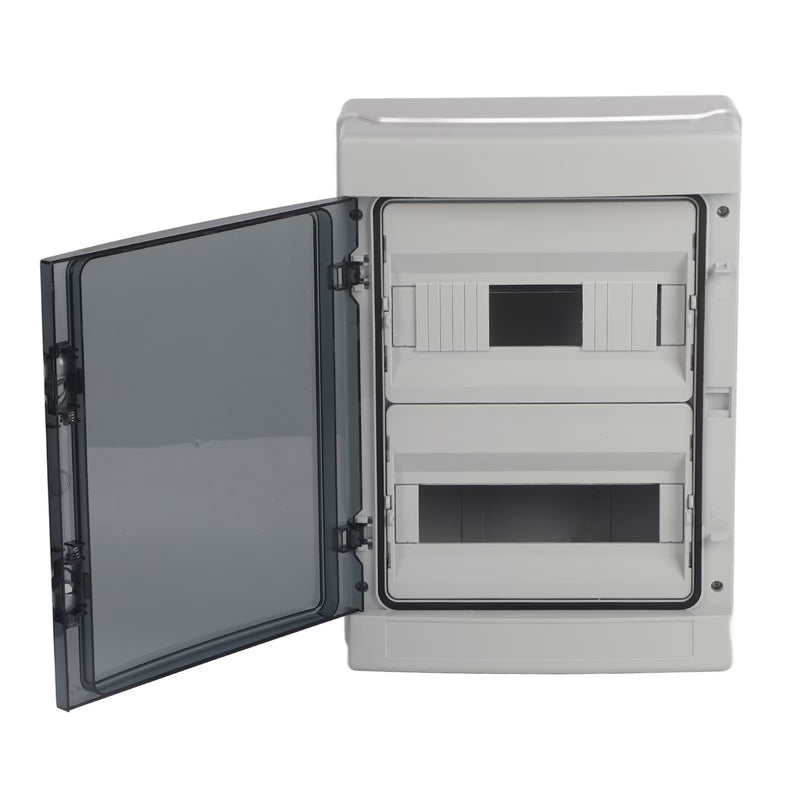

HA24 Waterproof Plastic Consumer Unit Circuit Box IP65

HA24 Waterproof Plastic Consumer Unit Circuit Box — IP65

The HA24 is a waterproof plastic consumer unit (circuit box) rated IP65, designed for use in special waterproof, dustproof, and corrosion-proof locations. Compliant with IEC60529 and EN 60309, it is ideal for outdoor distribution boards, industrial installations, and wet or corrosive environments. The HA24 features a tall 415mm body to accommodate up to 24 circuit breakers across two rows, making it suitable for larger residential, commercial, and industrial distribution applications.

Technical Specifications

• Order code: HA24
• External dimensions: 298 x 415 x 128mm (W x H x D)
• Internal height: 422mm
• Protection rating: IP65 waterproof and dustproof
• Standard: IEC60529, EN 60309
• Material: ABS plastic, UV-resistant, flame-retardant, corrosion-resistant
• Transparent smoke door for circuit visibility without opening
• Lockable door with key
• Suitable for indoor and outdoor installation
• Colour: Grey body / smoke transparent door
