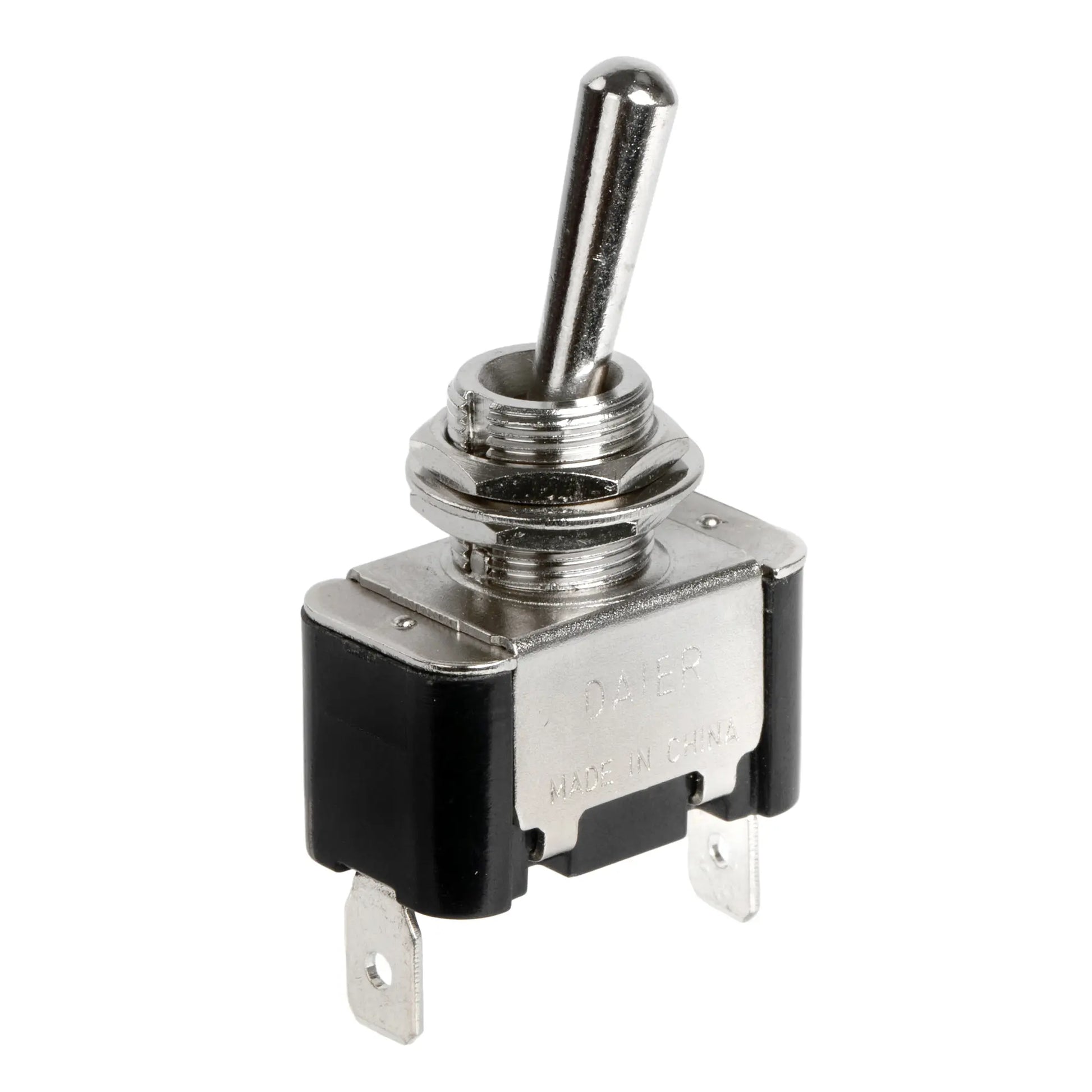

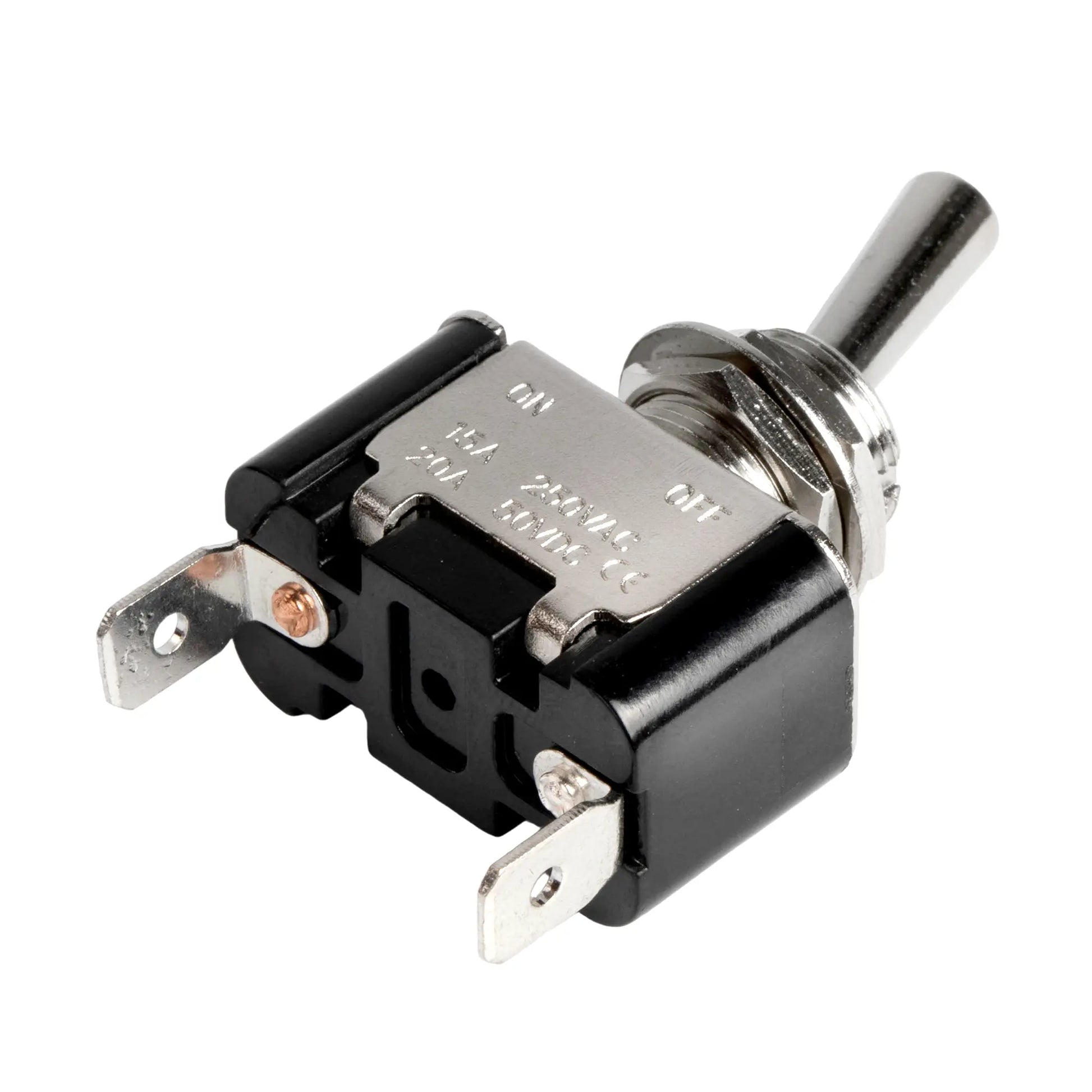

Heavy Duty KN3A-101 Toggle Switch, 2-Pin SPST ON-OFF Latching, 10A 250VAC / 15A 125VAC, 12mm Panel Mount

Name: Heavy Duty KN3A-101 Toggle Switch, 2-Pin SPST ON-OFF Latching, 10A 250VAC / 15A 125VAC, 12mm Panel Mount
Brand: Electrical Supplies Ghana
Price: 20.00 GHS
Availability: InStock

GH₵20.00

~~GH₵25.00~~ GH₵20.00

Sale Sold out

Quantity

Detailed Description

The KN3A-101 is a robust, heavy-duty toggle switch designed for reliable two-position power control (ON-OFF) in a wide range of electrical applications. It features a Single Pole Single Throw (SPST) contact configuration with 2 screw terminals for secure and durable wiring. The construction utilizes a durable metal lever and a sturdy base, built for industrial environments.

Key Specifications:

Model: KN3A-101

Operation: 2-Position, Latching ON-OFF
Contact Configuration: SPST (Single Pole Single Throw)
Terminals: 2 Pins, screw terminals (or quick connect depending on specific variant)
Rated Voltage/Current:
- 10A at 250VAC
- 15A at 125VAC

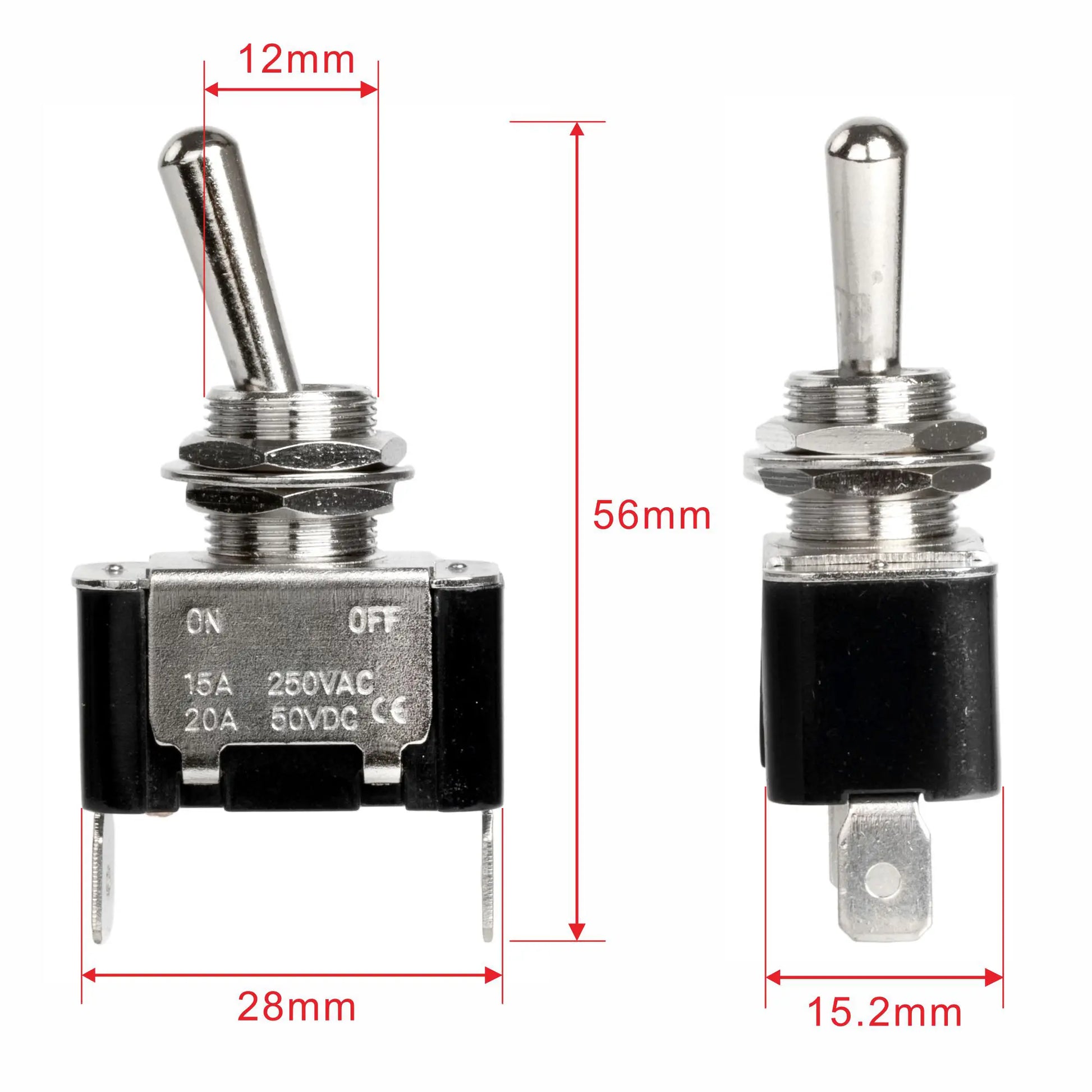

Mounting Style: Panel mount with 12mm diameter hole
Housing/Lever Material: Metal lever with Bakelite/Nylon 66 base
Electrical Life:

$is greater than or equal to$

10,000 Cycles
Operating Temperature: -25°C to +85°C
Applications:

Ideal for controlling power circuits in industrial equipment, marine and automotive applications, machinery, power supplies, and any system that requires a durable and reliable basic ON/OFF switch.
