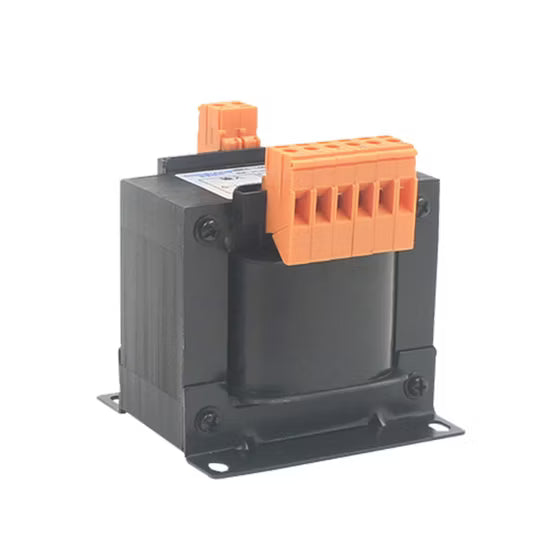

JKB5-160 Control Transformer - 230VAC Primary Input, Multi-Tap Secondary Output (12V/24V/110V), 160VA Power Rating, Single Phase Isolation Transformer

Description:

The JKB5-160 is a robust single-phase control transformer engineered for industrial automation, machine control systems, and power distribution applications requiring multiple secondary voltage configurations. This 160VA rated transformer delivers reliable voltage conversion from a standard 230V AC primary input to selectable secondary outputs of 12V, 24V, or 110V AC, providing enhanced power capacity for demanding industrial applications.

Key Features:

• Primary Voltage: 230V AC ±10%, 50/60Hz
• Secondary Voltages: 12V / 24V / 110V AC (selectable taps)
• Power Rating: 160VA continuous duty
• Transformer Type: Single-phase isolation transformer with premium copper windings
• Insulation Class: Class B or higher (130°C rated)
• Protection: Integrated thermal overload protection
• Mounting Options: DIN rail or panel mount configurations available

Applications: Perfect for medium-duty control circuits, PLC power supplies, industrial lighting systems, HVAC control panels, CNC machinery, automated production equipment, motor control centers, and electronic device power conversion. The multi-voltage output design provides exceptional flexibility while reducing inventory requirements and installation complexity.

Technical Specifications:

• Efficiency: ≥87%
• Dielectric strength: 3000V AC (1 minute test)
• Insulation resistance: ≥100MΩ
• Operating temperature range: -25°C to +40°C ambient
• Storage temperature: -40°C to +70°C
• Protection degree: IP20 standard (IP54 enclosed versions available)
• Noise level: <40dB
• Compliant with IEC 61558-2-4 and UL 5085-1 safety standards
• CE marked, RoHS compliant

Physical Specifications:

• Compact footprint for space-saving installation
• Terminal block connections for easy wiring
• Mounting holes for secure panel installation
• Optional DIN rail adapter included

Quality & Reliability: Manufactured with high-grade silicon steel core for reduced losses and superior electromagnetic performance. Premium enameled copper wire ensures long service life and excellent thermal stability. Each unit undergoes rigorous factory testing including hi-pot testing, load testing, and thermal performance verification.
