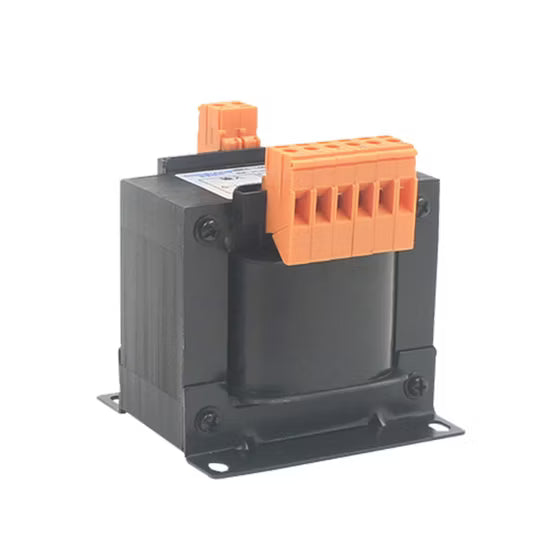

JKB5-400 Heavy-Duty Industrial Control Transformer - 230VAC Primary Input, Multi-Tap Secondary Output (12V/24V/110V), 400VA Power Rating, Single Phase Isolation Transformer

Description:

The JKB5-400 is a premium heavy-duty single-phase control transformer engineered for high-demand industrial automation, manufacturing systems, and critical power distribution applications requiring substantial power capacity with multiple secondary voltage configurations. This 400VA rated transformer delivers exceptional voltage conversion reliability from a standard 230V AC primary input to selectable secondary outputs of 12V, 24V, or 110V AC, providing the robust performance needed for power-intensive industrial environments.

Key Features:

• Primary Voltage: 230V AC ±10%, 50/60Hz
• Secondary Voltages: 12V / 24V / 110V AC (selectable multi-tap outputs)
• Power Rating: 400VA continuous duty rating
• Transformer Type: Single-phase isolation transformer with premium oxygen-free copper windings
• Insulation Class: Class F (155°C rated) with Class H option available (180°C)
• Core Material: Superior-grade grain-oriented silicon steel laminations for maximum efficiency
• Protection: Advanced thermal overload protection with automatic reset and status indication
• Mounting Options: Flexible DIN rail, panel mount, or chassis mount with reinforced mounting brackets

Applications: Specifically designed for heavy-duty industrial control circuits, large-scale PLC installations, industrial process control systems, commercial building automation, multi-zone HVAC control networks, CNC machining centers, automated production lines, robotic welding systems, material handling equipment, food processing machinery, pharmaceutical manufacturing equipment, packaging systems, and high-power electronic device applications. The substantial 400VA capacity supports multiple loads simultaneously while the multi-voltage output design provides maximum installation flexibility and reduces equipment costs.

Technical Specifications:

• Efficiency: ≥90% at rated load
• Voltage regulation: ≤4% (full load to no load)
• Dielectric strength: 4000V AC (1 minute duration test)
• Insulation resistance: ≥300MΩ at 500VDC
• Operating temperature range: -30°C to +50°C ambient
• Maximum temperature rise: 65°C (Class F insulation)
• Storage temperature: -40°C to +85°C
• Altitude capability: Up to 2500m without derating
• Protection degree: IP20 standard (IP44/IP54/IP65 enclosed versions available)
• Acoustic noise level: <48dB at 1 meter
• Short circuit withstand: 25x rated current for 0.5 seconds
• Weight: Approximately 4.5-5.5 kg (configuration dependent)
• Dimensions: Optimized for standard control panel integration
• Compliant with IEC 61558-2-4, IEC 61558-2-6, UL 5085-1, UL 5085-2, and CSA C22.2 No.66 safety standards
• CE marked, RoHS 2011/65/EU compliant, REACH compliant, UL recognized

Physical Specifications:

• Robust enclosure design for industrial environments
• Heavy-duty screw terminal blocks rated for up to 25mm² wire
• Color-coded and numbered terminals for error-free installation
• Multiple mounting configurations with reinforced brackets
• Enhanced ventilation design for optimal heat dissipation
• Optional terminal safety covers and protective enclosures
• Anti-vibration mounting system available

Electrical Performance:

• Ultra-low no-load current consumption (<5% rated current)
• Superior load regulation across full operating range
• Minimal electromagnetic interference (EMI/RFI)
• Exceptional short-circuit withstand capability
• Controlled inrush current design (soft-start compatible)
• Low total harmonic distortion (THD <3%)
• High power factor (>0.95 at rated load)

Quality & Reliability: Manufactured to the highest industrial standards using premium materials including high-grade M19 or M27 grain-oriented silicon steel core laminations, ensuring maximum magnetic efficiency and minimal core losses. Features advanced Class F insulation system with triple-coated polyester-imide enameled copper wire providing exceptional thermal stability, chemical resistance, and extended operational life exceeding 100,000 hours. Vacuum pressure impregnation (VPI) process ensures superior moisture resistance, mechanical strength, and protection against environmental contaminants.

Comprehensive Factory Testing: Every JKB5-400 transformer undergoes rigorous quality control procedures including:

• High voltage dielectric breakdown testing (4000V AC)
• Extended full load burn-in testing (8 hours minimum at 110% load)
• Thermal rise verification and mapping
• Voltage regulation and efficiency measurement
• Insulation resistance testing at elevated temperature
• Inter-winding capacitance measurement
• Impulse voltage testing
• Partial discharge testing
• Final visual and dimensional inspection

Installation & Safety: Simplified installation with comprehensive wiring diagrams, clear terminal identification, and detailed installation instructions included. Suitable for indoor and protected outdoor environments with appropriate IP-rated enclosures. Designed for use with IEC/UL approved overcurrent protection devices (fuses or circuit breakers). Service factor: 1.15 for intermittent overload conditions. Temperature monitoring points available for critical applications.

Environmental Compliance:

• RoHS compliant (lead-free construction)
• REACH regulation compliant
• Conflict minerals free
• Recyclable materials used throughout
• Energy-efficient design reduces carbon footprint

Warranty & Support: Protected by comprehensive manufacturer warranty with extended warranty options available. Full technical support including application engineering assistance, custom configuration services, and rapid replacement part availability. Complete documentation package includes installation manual, wiring diagrams, test certificates, and maintenance guidelines.

Optional Features & Accessories:

• IP54/IP65 weatherproof enclosures
• DIN rail mounting kits
• Terminal safety covers
• Fuse holders and fuses
• EMI/RFI filters
• Temperature monitoring sensors
• Seismic mounting brackets
• Custom voltage configurations
