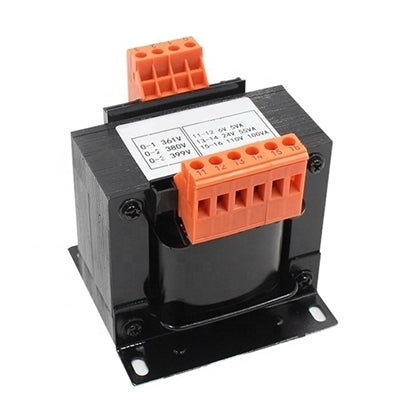

JKB5-800 High-Capacity Industrial Control Transformer - 230VAC Primary Input, Multi-Tap Secondary Output (12V/24V/110V), 800VA Power Rating, Single Phase Isolation Transformer

Description:

The JKB5-800 is a premium high-capacity single-phase control transformer specifically engineered for the most demanding heavy industrial automation, large-scale manufacturing operations, and mission-critical power distribution applications requiring maximum power delivery with versatile secondary voltage configurations. This 800VA rated transformer delivers exceptional voltage conversion performance and reliability from a standard 230V AC primary input to selectable secondary outputs of 12V, 24V, or 110V AC, providing the substantial power capacity essential for complex multi-zone control systems, distributed automation networks, and high-current industrial installations.

Key Features:

• Primary Voltage: 230V AC ±10%, 50/60Hz frequency
• Secondary Voltages: 12V / 24V / 110V AC (selectable multi-tap configuration with terminal flexibility)
• Power Rating: 800VA continuous duty rating for sustained heavy-load applications
• Transformer Type: Single-phase isolation transformer with premium oxygen-free copper (OFC) windings
• Insulation Class: Class F (155°C rated) standard, Class H (180°C) available for extreme environments
• Core Material: Ultra-premium grain-oriented silicon steel laminations (M19/M27 grade) for maximum efficiency
• Core Construction: Advanced interleaved stacking with optimized flux path design
• Winding Technology: Precision layer-wound construction with controlled inter-layer insulation
• Protection: Multi-stage thermal overload protection with automatic reset, LED status indicators, and optional remote alarm capability
• Mounting Options: Heavy-duty DIN rail, reinforced panel mount, or industrial chassis mount with vibration-resistant brackets

Applications: Specifically designed for high-demand industrial environments including enterprise-scale PLC control systems, large industrial process automation and SCADA systems, multi-building facility management networks, centralized commercial HVAC control platforms, precision CNC machining centers and mill operations, fully-automated production and assembly lines, advanced robotic welding and manufacturing cells, extensive material handling and distribution conveyors, large-scale food and beverage processing facilities, pharmaceutical clean room manufacturing systems, chemical and petrochemical processing controls, industrial packaging and palletizing machinery, municipal water and wastewater treatment plants, mining and extraction equipment controls, oil and gas pipeline monitoring systems, telecommunications equipment rooms, data center auxiliary power systems, and high-power laboratory and testing equipment. The substantial 800VA capacity enables powering multiple control loads simultaneously across extensive distributed networks while the flexible multi-voltage output design maximizes system adaptability and significantly reduces equipment costs.

Technical Specifications:

• Efficiency: ≥92% at rated load (industry-leading energy performance)
• Voltage regulation: ≤3% (full load to no load transition)
• Power factor: >0.97 at rated load
• Dielectric strength: 5000V AC (1 minute duration test between primary/secondary)
• Inter-winding dielectric: 2500V AC (between secondary windings)
• Insulation resistance: ≥1000MΩ at 500VDC at 25°C
• Operating temperature range: -35°C to +60°C ambient
• Maximum temperature rise: 55°C at rated load (Class F insulation system)
• Thermal time constant: >45 minutes
• Storage temperature: -40°C to +85°C
• Altitude capability: Up to 3500m without derating (derate 2% per 500m above)
• Humidity tolerance: 0-95% RH non-condensing
• Protection degree: IP20 standard (IP44/IP54/IP65/NEMA 4X enclosed versions available)
• Acoustic noise level: <52dB(A) at 1 meter distance under rated load
• Short circuit withstand: 35x rated current for 1 second
• Overload capability: 200% for 30 seconds, 150% for 2 minutes, 125% for 2 hours
• Inrush current: <25A peak (controlled soft-start compatible)
• Weight: Approximately 8.5-10.5 kg (varies with configuration and enclosure)
• Dimensions: Optimized footprint for industrial control panels and electrical enclosures
• Compliant with IEC 61558-2-4, IEC 61558-2-6, IEC 61558-2-16, IEC 60076, UL 5085-1, UL 5085-2, UL 5085-3, CSA C22.2 No.66, CSA C22.2 No.47, and EN 61558 comprehensive safety standards
