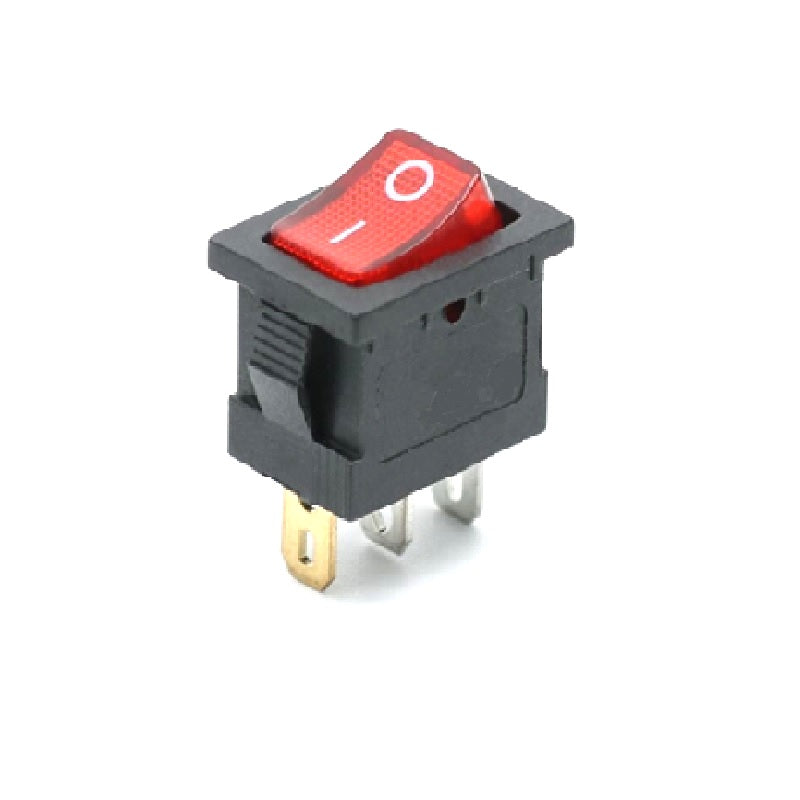

KCD1-2-101N Sub-Mini 3-Pin SPST ON-OFF Illuminated Rocker Switch, Snap-In Panel Mount, 10A 125VAC / 6A 250VAC

Name: KCD1-2-101N Sub-Mini 3-Pin SPST ON-OFF Illuminated Rocker Switch, Snap-In Panel Mount, 10A 125VAC / 6A 250VAC
Brand: Electrical Supplies Ghana
Price: 13.00 GHS
Availability: InStock

GH₵13.00

~~GH₵18.00~~ GH₵13.00

Sale Sold out

Quantity

Detailed Description

The KCD1-2-101N is a miniature, snap-in rocker switch with a latching ON-OFF operation. It features a single pole single throw (SPST) contact configuration and is an illuminated switch, typically with a red, green, blue, or white LED light visible through a transparent button (color varies by specific sub-variant

Key Specifications:

Operation: 2-Position, Latching ON-OFF

Contact Configuration: SPST (Single Pole Single Throw)
Terminals: 3 Pins (two for the switch contacts, one for the lamp power/neutral)
Electrical Rating: 10A at 125VAC; 6A at 250VAC
Insulation Resistance:

$is greater than or equal to$

100MΩ (500VDC)
Dielectric Strength: 1500VAC for 1 minute
Electrical Life:

$is greater than or equal to$

10,000 Cycles
Housing Material: Durable Nylon 66
Mounting Style: Snap-in panel mount (standard dimensions typically fit a 13.2mm x 19.2mm cutout)
Certifications: CE, CQC, SGS certified
Applications:

This switch is widely used in household appliances, computer power supplies, water dispensers, extension sockets, and various applications requiring a reliable and visible ON/OFF power control
