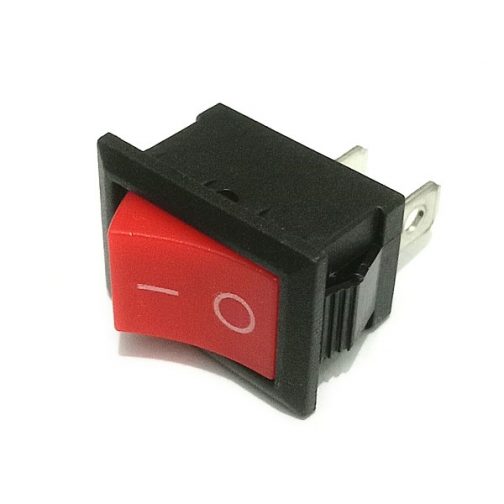

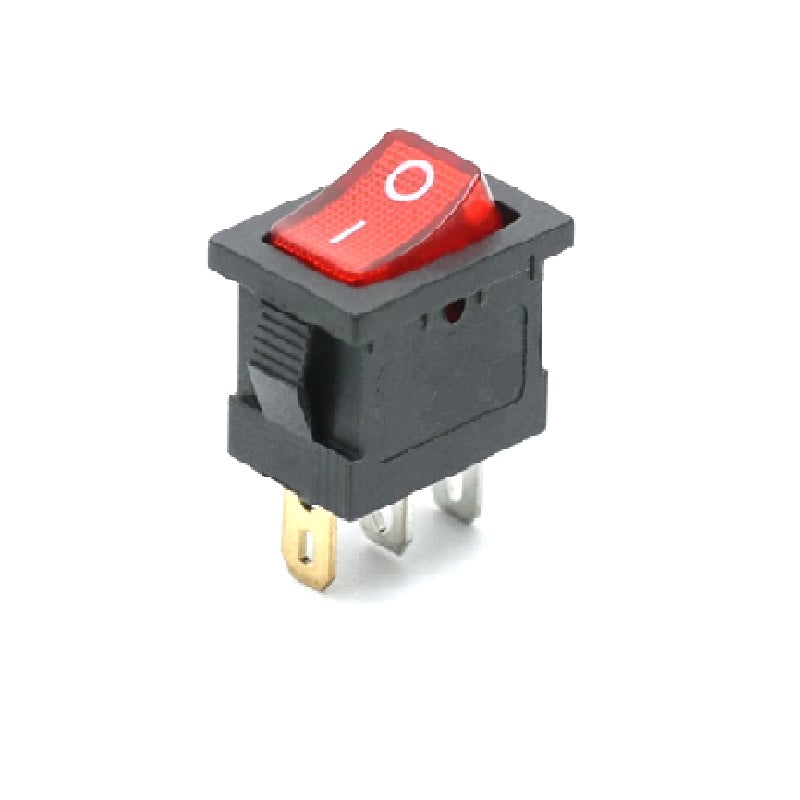

KCD1-2-103 Sub-Mini 3-Pin SPDT ON-OFF-ON Rocker Switch, Snap-In Panel Mount, 10A 125VAC / 6A 250VAC, Non-Illuminated

Name: KCD1-2-103 Sub-Mini 3-Pin SPDT ON-OFF-ON Rocker Switch, Snap-In Panel Mount, 10A 125VAC / 6A 250VAC, Non-Illuminated
Brand: Electrical Supplies Ghana
Price: 11.00 GHS
Availability: InStock

GH₵11.00

~~GH₵16.00~~ GH₵11.00

Sale Sold out

Quantity

Detailed Description

The KCD1-2-103 is a versatile, sub-miniature rocker switch with a three-position, latching ON-OFF-ON operation. It uses a Single Pole Double Throw (SPDT) configuration, ideal for selecting between two different power states or loads in various applications like small appliances, control panels, automotive setups, and DIY electronics projects. The switch is non-illuminated and designed for simple snap-in panel mounting.

Key Specifications:

Model: KCD1-2-103

Operation: 3-Position, Latching ON-OFF-ON
Contact Configuration: SPDT (Single Pole Double Throw)
Terminals: 3 Pins (brass quick-connect terminals)
Electrical Rating: 10A at 125VAC; 6A at 250VAC (Ratings may vary slightly by specific manufacturer, always verify product sheet)
Contact Resistance: 50mΩ maximum
Insulation Resistance:

$is greater than or equal to$

100MΩ (500VDC)
Dielectric Strength: 1500VAC for 1 minute
Electrical Life:

$is greater than or equal to$

10,000 Cycles
Housing Material: Durable Nylon 66 (Standard Black)
Mounting Style: Snap-in panel mount (Typically fits a 13.2mm x 19.2mm rectangular cutout)
Certifications: CE, CQC, SGS certified
