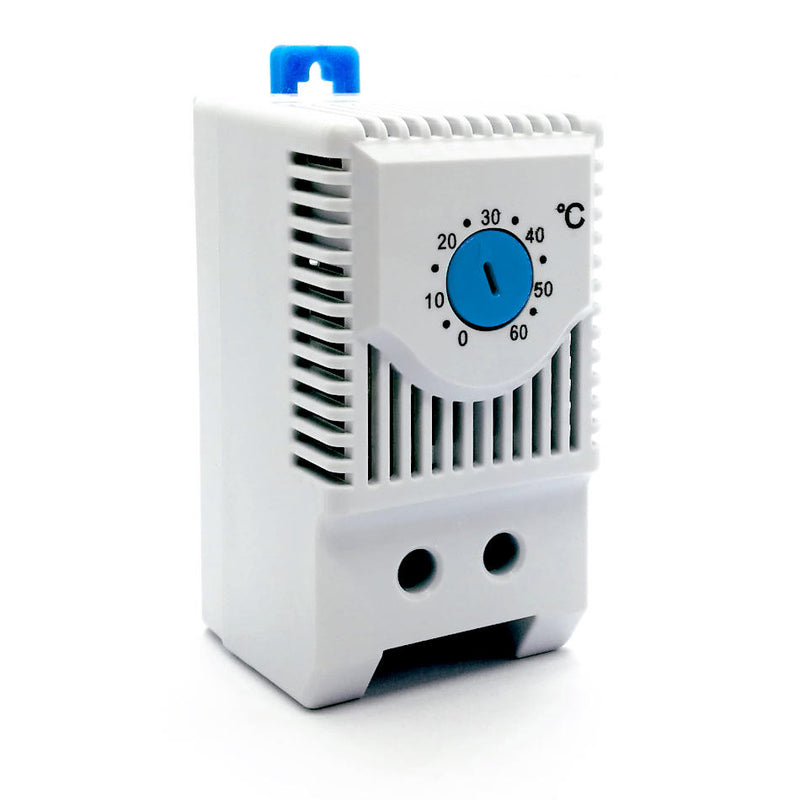

KTS011 Temperature Controller Thermostat 0-60°C NO Contact DIN Rail Mount

The KTS011 Temperature Controller is a compact mechanical thermostat designed for temperature regulation in electrical enclosures, control panels, switchboards, and automation systems. Featuring a normally open (NO) contact, the thermostat closes when the temperature rises above the set value, making it ideal for controlling cooling fans, filter fans, heat exchangers, and signaling devices. With an adjustable temperature range of 0°C to 60°C, the KTS011 helps maintain optimal enclosure temperatures and protects sensitive electrical equipment from overheating. Its DIN rail mounting design allows quick installation, while the thermostatic bimetal sensor ensures reliable and maintenance-free operation.

Key Features

• Model: KTS011
• Adjustable temperature range: 0°C to 60°C
• Normally Open (NO) contact
• Contact closes as temperature rises
• Designed for fan and cooling equipment control
• Thermostatic bimetal sensor element
• Compact DIN rail mounting design
• High switching performance
• Operating voltage up to 250 V AC
• Switching capacity up to 10 A at 250 V AC
• Snap-action contact mechanism
• Long service life exceeding 100,000 switching cycles
• Compact dimensions: approximately 60 x 33 x 43 mm
• Protection rating: IP20
• Suitable for industrial and commercial electrical enclosures

Applications

• Electrical control panels
• Industrial automation systems
• Distribution boards
• Switchgear cabinets
• Cooling fan control
• Filter fan regulation
• Heat exchanger control
• Enclosure temperature management
• Equipment overheating protection
