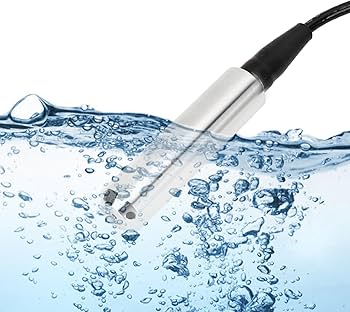

LEFOO LFT3200 Liquid Temperature & Level 2-in-1 Transmitter | 0–200 mH₂O | PT-100 | 4–20 mA | M12 | 1.0 m Cable
SKU: LFT3200-LT2IN1-A4-M-0.5-M-1.0
LEFOO LFT3200 — Liquid Temperature & Level 2-in-1 Submersible Transmitter
Why install two instruments when one does it all? The LEFOO LFT3200 combines a high-accuracy diffused silicon pressure level sensor with a PT-100 RTD temperature sensor in a single submersible stainless steel...
In Stock
GH₵5,005.00
LEFOO LFT3200 — Liquid Temperature & Level 2-in-1 Submersible Transmitter
Why install two instruments when one does it all? The LEFOO LFT3200 combines a high-accuracy diffused silicon pressure level sensor with a PT-100 RTD temperature sensor in a single submersible stainless steel probe. Drop it into a tank, borehole, river, or reservoir and get simultaneous, continuous level and temperature readings over a single 4–20 mA loop — saving wiring, installation time, and panel space.
Key Features
- 2-in-1 measurement — liquid level (hydrostatic pressure) and temperature in one compact probe
- Measurement range: 0–200 mH₂O — suitable for deep tanks, boreholes, and open channels up to 200 metres water column
- PT-100 RTD temperature sensor — high-accuracy resistance temperature detector built into the probe tip
- 4–20 mA output — industry-standard analogue signal, compatible with all PLCs, SCADA systems, and data loggers
- M12 connector — robust, IP-rated quick-disconnect connector for reliable field wiring
- 1.0 m cable — vented cable with breather tube for accurate gauge pressure measurement
- Accuracy: ±0.5% F.S. — high-precision measurement for demanding process and monitoring applications
- 304 stainless steel housing — corrosion-resistant, suitable for water, wastewater, and mild chemical media
- Fully submersible — IP68-rated probe for continuous immersion
Typical Applications
- Water storage tank level and temperature monitoring
- Borehole and groundwater level measurement
- Rivers, reservoirs, and open channel monitoring
- Wastewater treatment plants
- Industrial process tanks
- SCADA and remote telemetry systems
Specifications
- Model: LFT3200 (Part No: LFT3200-LT2IN1-A4-M-0.5-M-1.0)
- Measurement: Liquid Level + Temperature (2-in-1)
- Level Range: 0–200 mH₂O
- Temperature Sensor: PT-100 RTD
- Output Signal: 4–20 mA
- Electrical Connection: M12 Connector
- Cable Length: 1.0 m (vented)
- Accuracy: ±0.5% F.S.
- Housing Material: 304 Stainless Steel
- Protection Rating: IP68
