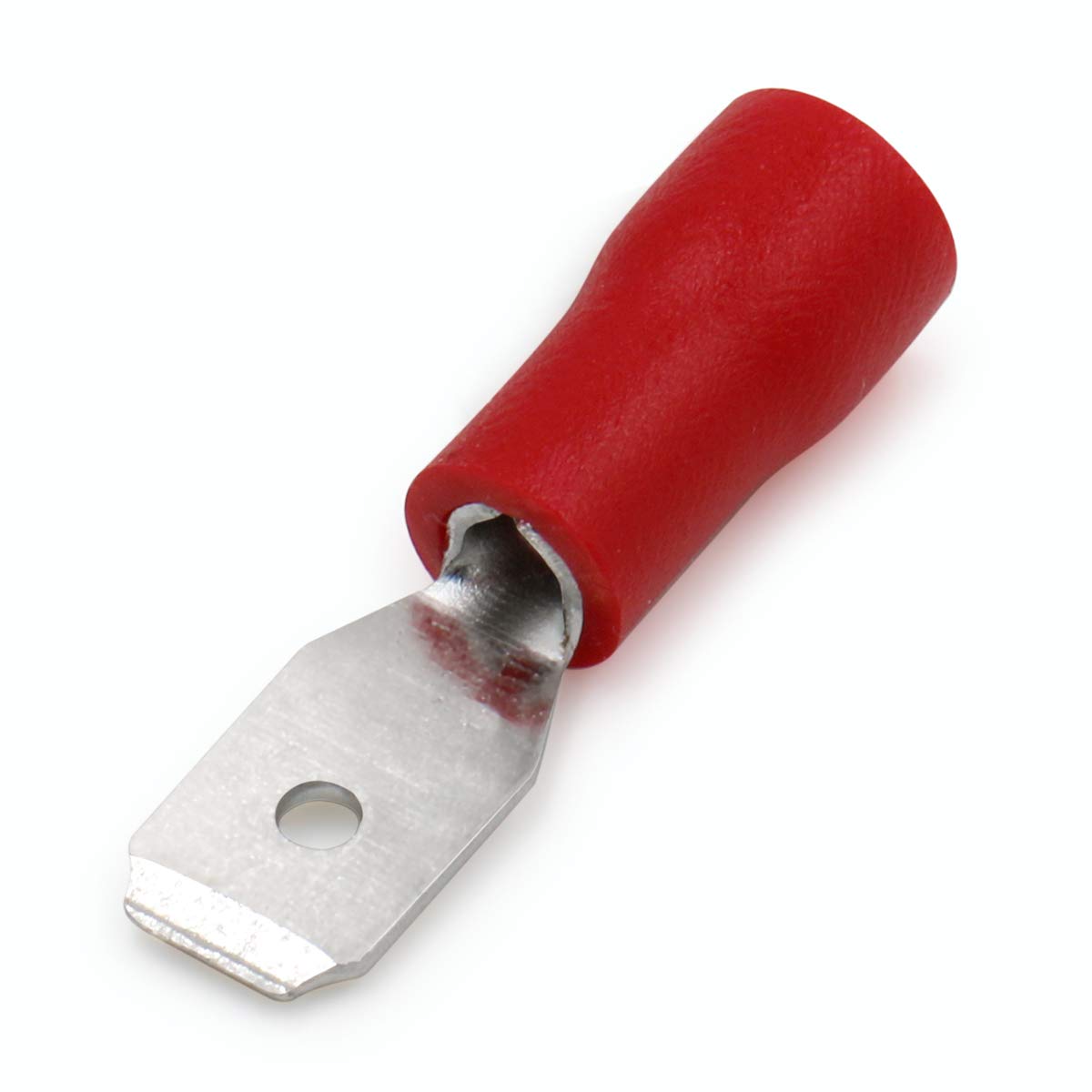

MDD1.25-110 Male Quick Disconnect Terminal – 0.5–1.5 mm² (22–16 AWG), Red Vinyl-Insulated

The MDD1.25-110 is a premium-grade male quick disconnect terminal designed for fast, secure, and maintenance-friendly electrical connections. Specifically crafted for wire sizes ranging from 0.5 to 1.5 mm² (22–16 AWG), it offers dependable performance in both industrial and automotive applications.

Key Features:

• Fast & Reliable Connections: Ensures stable electrical contact and quick mating with female terminals for streamlined wiring.
• Durable Construction: Made from high-conductivity tin-plated brass, offering excellent resistance to corrosion, vibration, and fatigue.
• Color-Coded Insulation: The red vinyl sleeve enhances insulation while providing easy visual identification of wire range.
• Precision Fit: Features a standard tab size of 2.8 mm × 0.5 mm to suit a wide range of terminal blocks and connectors.
• User-Friendly Installation: Compatible with cold crimping tools for quick and secure wire termination.

Technical Specifications:

• Terminal Type: Male quick disconnect
• Tab Size: 2.8 mm × 0.5 mm
• Wire Range: 0.5–1.5 mm² (22–16 AWG)
• Material: Tin-plated brass
• Insulation: Red vinyl (PVC)
• Rated Current: Up to 10A
• Operating Temperature: -40°C to +105°C
• Connection Method: Cold crimp (non-soldered)

Applications:

• Control panels & circuit assemblies
• Automotive wire harnesses
• HVAC systems and electrical maintenance
• General-purpose wiring projects

Whether you're an installer, technician, or reseller, the MDD1.25-110 offers a professional-grade solution for reliable wire terminations with rapid disconnection capability.
