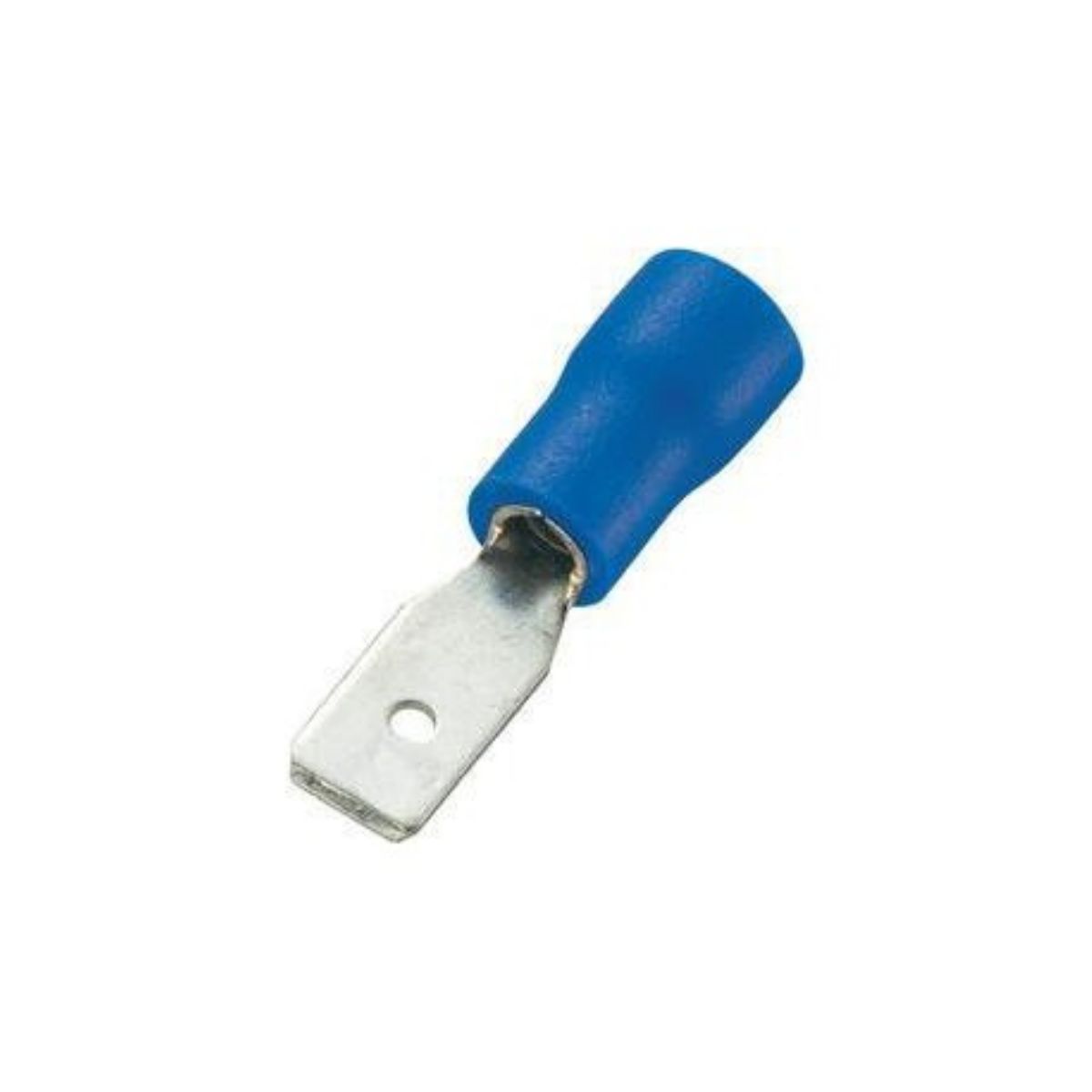

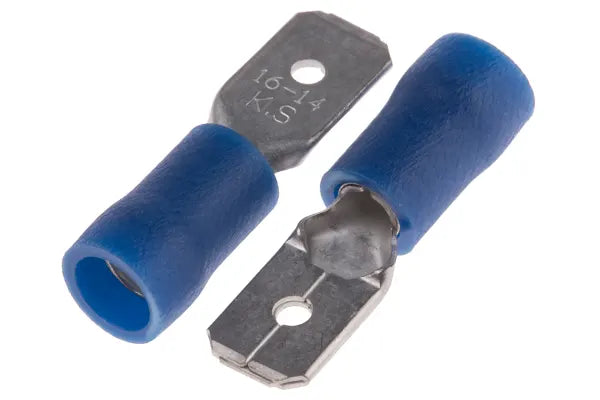

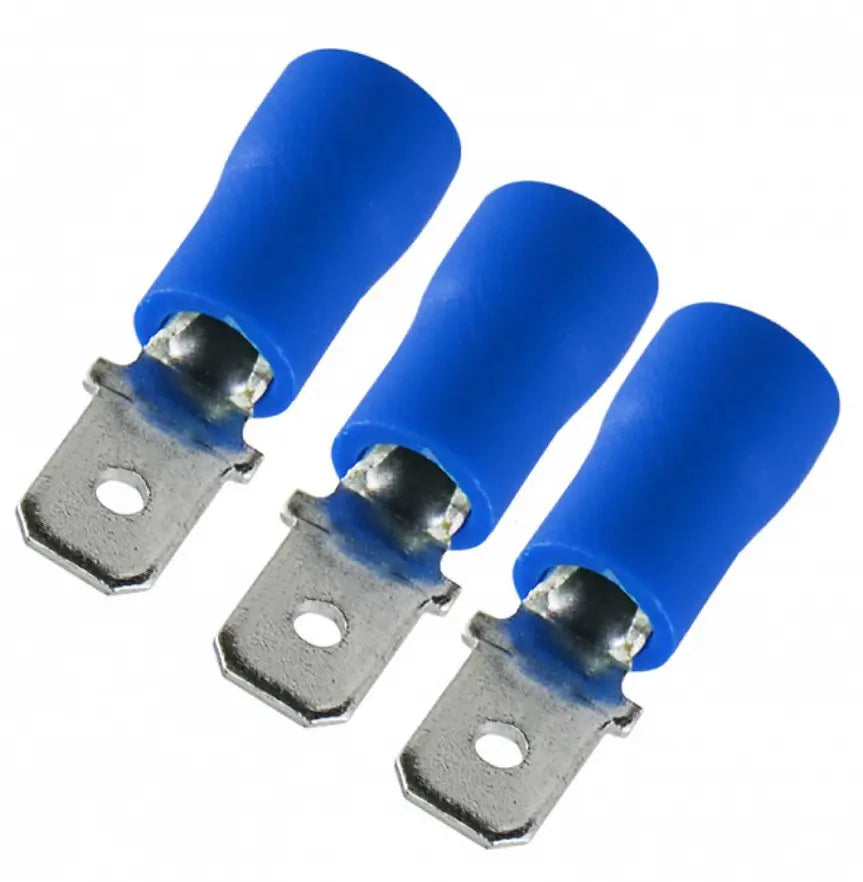

MDD2-250 Male Quick Disconnect Terminal – 1.5–2.5 mm² (16–14 AWG), Blue Vinyl-Insulated

The MDD2-250 is a heavy-duty male quick disconnect terminal designed for 1.5–2.5 mm² (16–14 AWG) wire connections. With its wide 6.35 mm (0.250") tab and insulated body, it delivers fast, secure, and vibration-resistant terminations in industrial, automotive, and control panel applications.

Key Features:

• Wire Range: 1.5–2.5 mm² (16–14 AWG)
• Tab Size: 6.35 mm × 0.8 mm (0.250" × 0.032")
• Material: Tin-plated brass for excellent conductivity and corrosion resistance
• Insulation: Blue vinyl (PVC) for added protection and easy identification
• Rated Current: Up to 15A
• Operating Temperature: -40°C to +105°C
• Connection Method: Cold crimp (non-soldered)

Benefits:

• Wide tab design ensures a firm and stable connection
• Color-coded insulation simplifies wire gauge recognition
• Resistant to vibration, moisture, and mechanical stress
• Ideal for high-current applications and dense wiring layouts

Applications:

• Electrical control panels
• Automotive and marine wiring harnesses
• HVAC systems
• General-purpose industrial wiring
