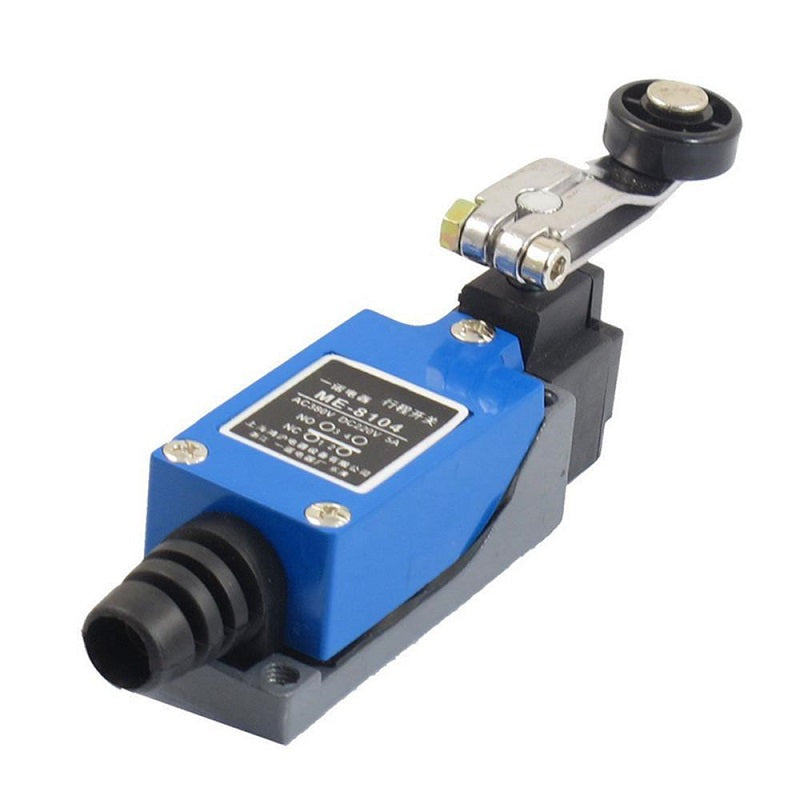

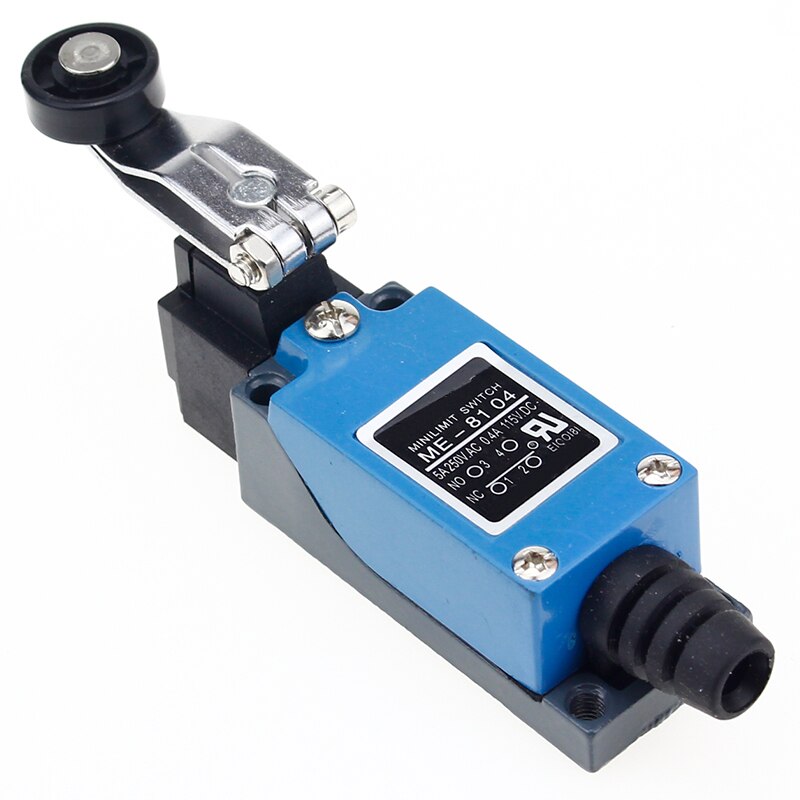

ME-8104 Limit Switch – SPDT, Side Rotary Roller, IP65, 5A 250V

The ME-8104 is a rugged, field-adjustable limit switch designed for precision control in industrial environments. With a side rotary roller actuator and SPDT (1NO + 1NC) contact configuration, it offers reliable switching performance in compact spaces.

Key Specifications:

• Contact Type: SPDT (Double Break, 1NO + 1NC)
• Actuator: Side rotary lever with roller
• Current Rating: 5A @ 250V AC / 0.4A @ 115V DC
• Ingress Protection: IP65 – Dust-tight and water-resistant
• Mounting: Chassis mount with screw terminals
• Operating Force: 600 gf
• Mechanical Life: 10 million operations
• Electrical Life: 300,000 operations
• Temperature Range: -15°C to +70°C
• Housing: Oil-tight, dustproof, and water-resistant enclosure

Features:

• Field-adjustable actuator head for flexible installation
• Captive cover screws and internal grounding screw
• High resistance to vibration and shock
• Complies with IEC 529 IP65 standards

Applications:

• Conveyor systems
• CNC machinery
• Packaging equipment
• Industrial automation panels
