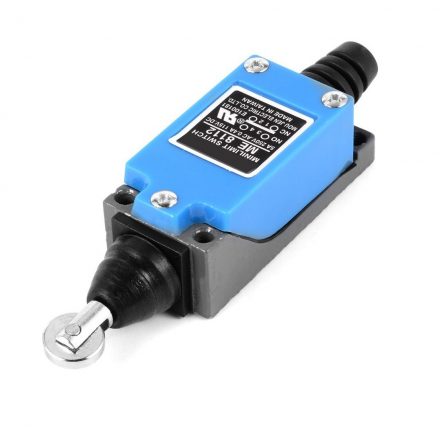

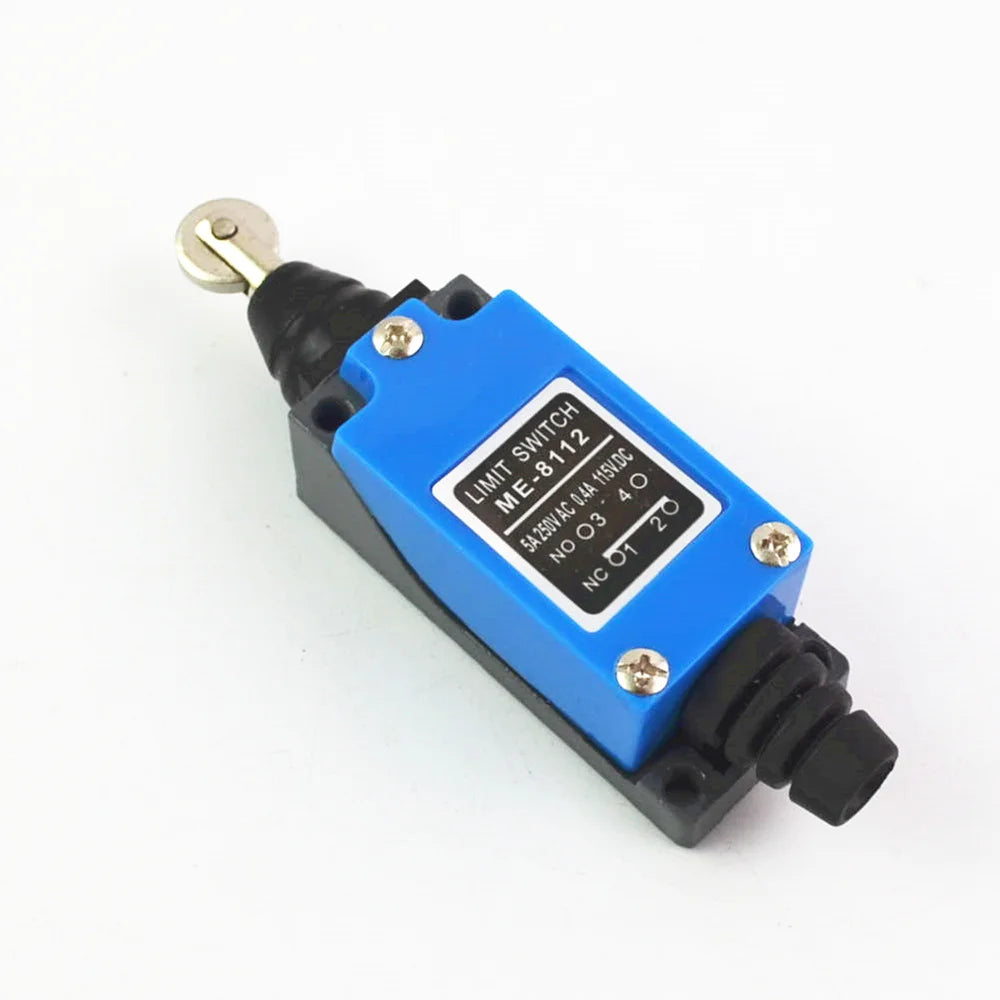

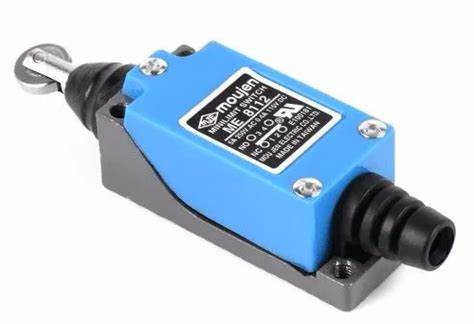

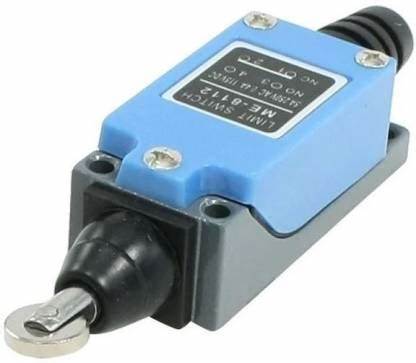

ME-8112 Limit Switch – 1NO+1NC, Roller Plunger Actuator, IP65, 5A 250V

The ME-8112 is a compact, industrial-grade limit switch designed for precision position detection in automated systems. Featuring a roller plunger actuator and SPDT (1NO + 1NC) contact configuration, it delivers consistent and reliable switching performance in harsh environments.

Technical Specifications:

• Contact Type: SPDT (Double Break – 1 Normally Open, 1 Normally Closed)
• Actuator: Roller plunger
• Electrical Rating: 5A @ 250V AC / 0.4A @ 115V DC
• Ingress Protection: IP65 – Dust-tight and water-resistant
• Mounting: Chassis mount with screw terminals
• Operating Force: 900 gf
• Pretravel: 1.5 mm
• Overtravel: 4.0 mm
• Differential Travel: 0.7 mm
• Mechanical Life: 10 million operations
• Electrical Life: 300,000 operations
• Operating Temperature: -15°C to +70°C
• Housing: Oil-tight, dustproof, and water-resistant enclosure

Features:

• Field-adjustable actuator head for flexible installation
• Captive cover screws and internal grounding screw
• High resistance to vibration and mechanical shock
• Complies with IEC 529 IP65 standards

Applications:

• Conveyor systems
• CNC and robotic machinery
• Packaging and labeling equipment
• Safety interlocks and automated production lines
