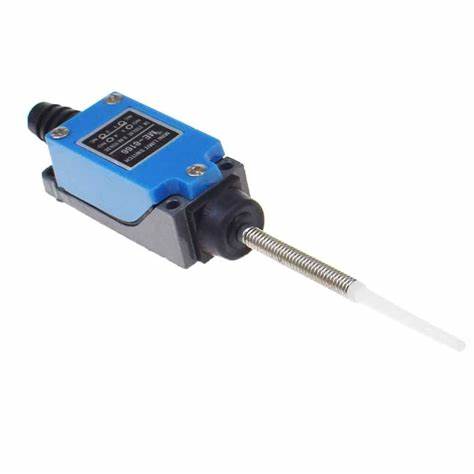

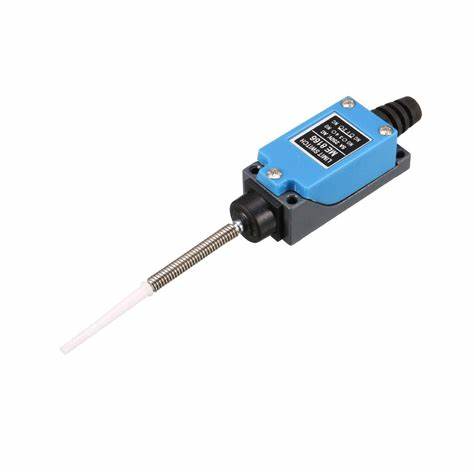

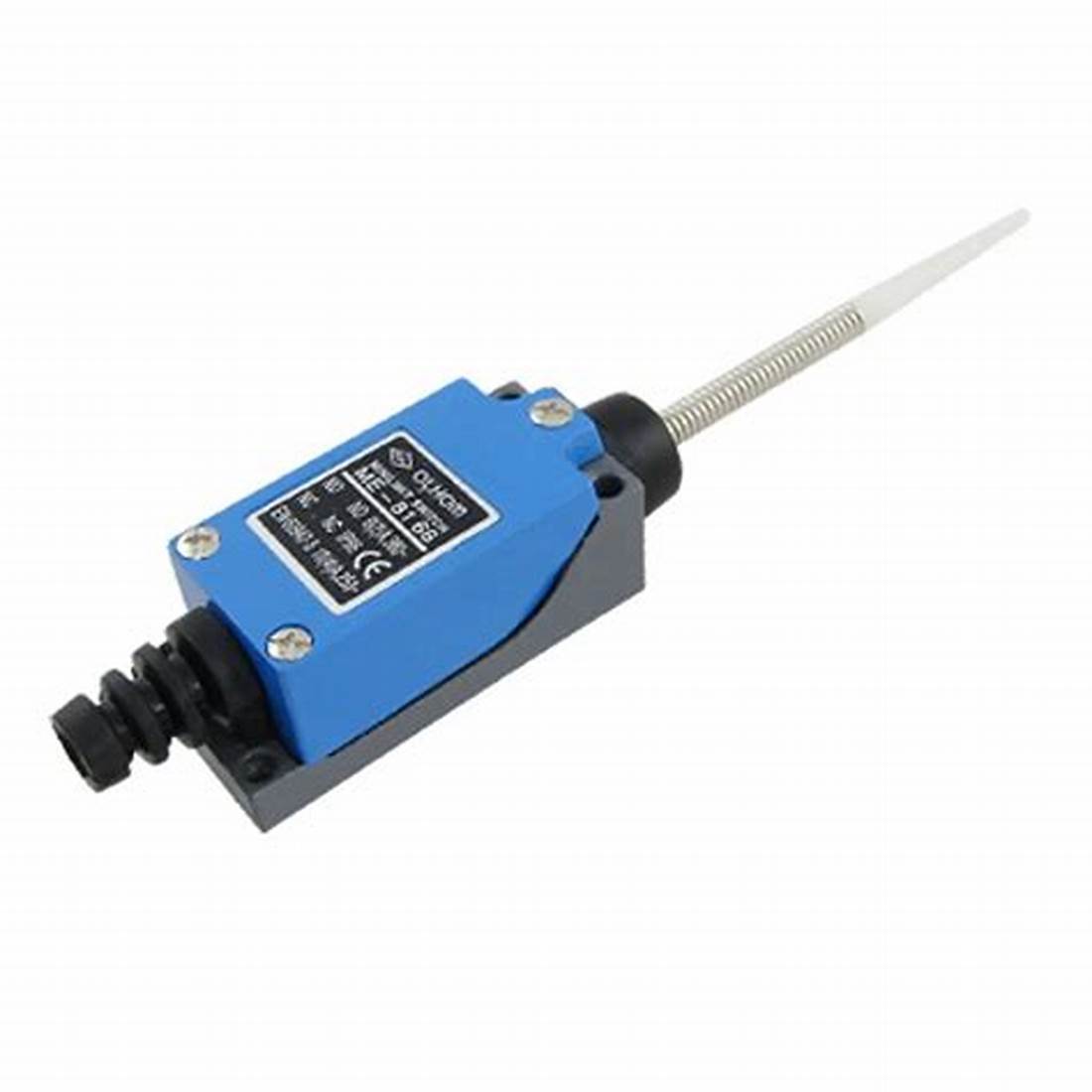

ME-8166 Limit Switch – 1NO+1NC, Spring Rod Actuator, IP65, 5A 250V

The ME-8166 is a compact industrial limit switch designed for precision position sensing in automated systems. Featuring a spring rod actuator and SPDT (1NO + 1NC) contact configuration, it offers reliable switching performance in environments where flexibility and durability are essential.

Technical Specifications:

• Contact Type: SPDT (Double Break – 1 Normally Open, 1 Normally Closed)
• Actuator: Spring rod (flexible stick)
• Electrical Rating: 5A @ 250V AC / 0.4A @ 115V DC
• Ingress Protection: IP65 – Dust-tight and water-resistant
• Mounting: Chassis mount with screw terminals
• Operating Force: 90 gf
• Pretravel: 30.0 mm
• Overtravel: 20.0 mm
• Mechanical Life: 10 million operations
• Electrical Life: 300,000 operations
• Operating Temperature: -15°C to +70°C
• Housing: Oil-tight, dustproof, and water-resistant enclosure
• Dimensions: Approx. 88 × 28 × 25 mm
• Weight: ~60 g

Features:

• Flexible spring rod actuator for wide-angle detection
• Field-adjustable actuator head for versatile mounting
• Captive cover screws and internal grounding screw
• High resistance to vibration and mechanical shock
• Complies with IEC 529 IP65 standards
