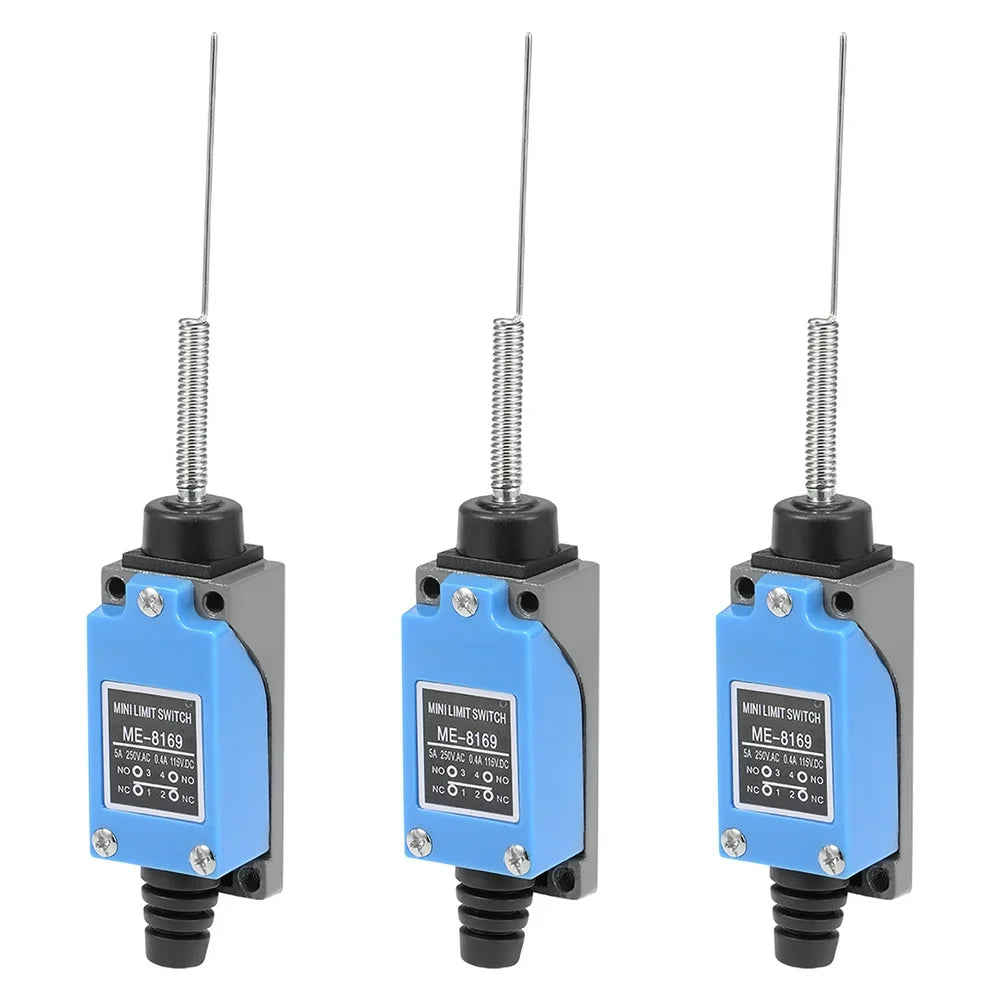

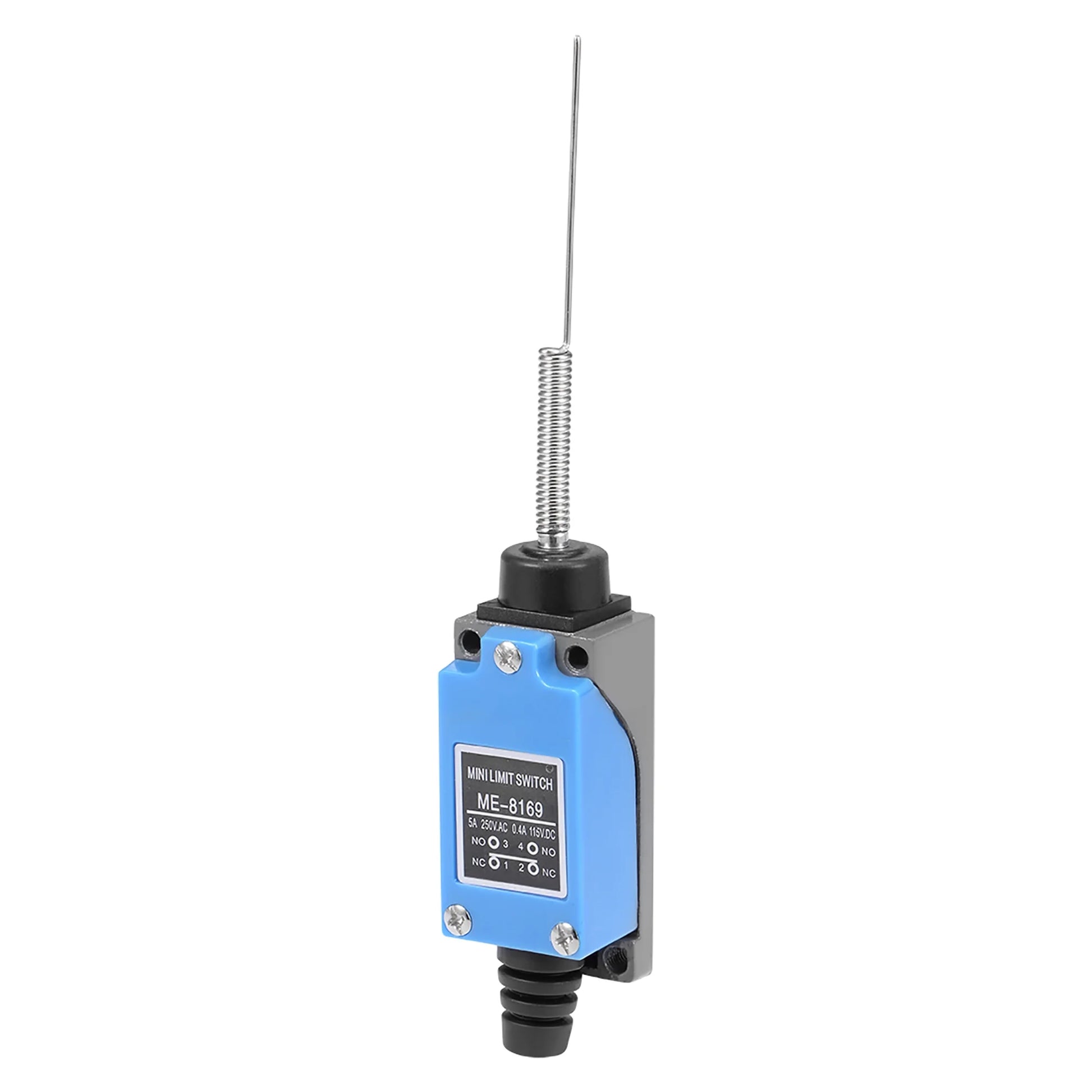

ME-8169 Limit Switch – 1NO+1NC, Spring Rod Actuator, IP65, 5A 250V

The ME-8169 is a compact industrial limit switch designed for flexible position sensing in automated systems. Featuring a spring rod (whisker) actuator and SPDT (1NO + 1NC) double-break contact configuration, it ensures reliable switching performance in environments where sensitivity and adaptability are key.

Technical Specifications:

• Contact Type: SPDT (Double Break – 1 Normally Open, 1 Normally Closed)
• Actuator: Spring rod (whisker)
• Electrical Rating: 5A @ 250V AC / 0.4A @ 115V DC
• Ingress Protection: IP65 – Dust-tight and water-resistant
• Mounting: Vertical chassis mount with screw terminals
• Operating Speed: 0.5 mm to 50 m/s
• Operating Force: Approx. 90 gf
• Mechanical Life: 10 million operations
• Electrical Life: 300,000 operations
• Temperature Range: -15°C to +70°C
• Housing: Oil-tight, dustproof, and water-resistant enclosure
• Standards: IEC 529 IP65 compliant

Features:

• Flexible spring actuator ideal for detecting light or irregular motion
• Field-adjustable actuator head for versatile mounting positions
• Captive cover screws and internal grounding screw for safety
• High resistance to vibration and mechanical shock

Applications:

• Conveyor systems
• CNC and robotic machinery
• Packaging and labeling equipment
• Safety interlocks and automated production lines
