Mild Steel Electrical Enclosure – 1000×1800×500mm, Floor Standing Cabinet, 1.5mm Body, 2.0mm Door, Powder Coated Finish, IP55 Rated
Mild Steel Electrical Enclosure – 1000×1800×500mm, Floor Standing Cabinet, 1.5mm Body, 2.0mm Door, Powder Coated Finish, IP55 Rated
Regular price
GH₵19,500.00
Regular price
GH₵22,000.00
Sale price
GH₵19,500.00
Unit price
/
per
Couldn't load pickup availability
Product Description

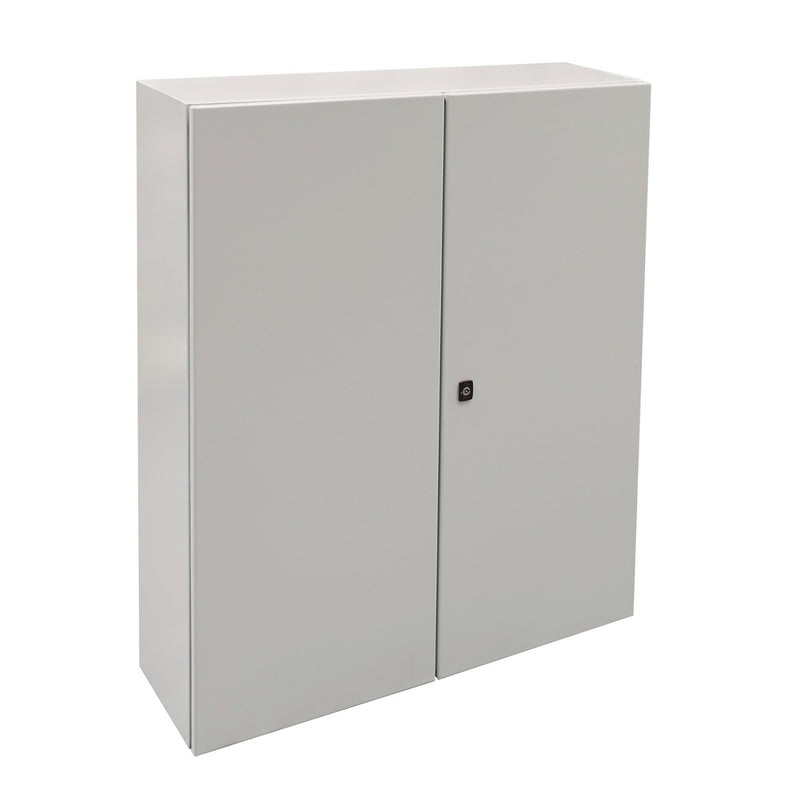

The Mild Steel Enclosure (1000×1800×500mm) is a robust, medium-height, floor-standing electrical cabinet designed for control panels, MCC units, and industrial automation systems.
Manufactured from 1.5mm thick mild steel with a reinforced 2.0mm front door, it provides superior rigidity, impact resistance, and security. The RAL 7035 light grey powder-coated finish enhances both aesthetic appeal and corrosion resistance, ensuring long service life even in demanding environments.
Rated IP55/IP65, the enclosure offers strong protection against dust, water jets, and mechanical ingress, making it suitable for industrial plants, electrical switch rooms, and workshop control installations.
Technical Specifications Table
| Feature | Specification |
|---|---|
| Product Code | MSE-1018050 |
| Dimensions (H×W×D) | 1800 × 1000 × 500 mm (Floor Standing Cabinet) |
| Material | Mild Steel |
| Body Thickness | 1.5 mm |
| Door Thickness | 2.0 mm |
| Surface Finish | Powder Coated, Light Grey (RAL 7035) |
| Ingress Protection | IP55 (Dust Protected, Water Jet Resistant) / IP65 (Dust Tight, Water Resistant) |
| Mounting Type | Floor Standing (Optional base/plinth available) |
| Locking System | Cam lock with key (Multi-point locking optional) |
| Applications | MCC Panels, Control Systems, Power Distribution, Automation Cabinets |
