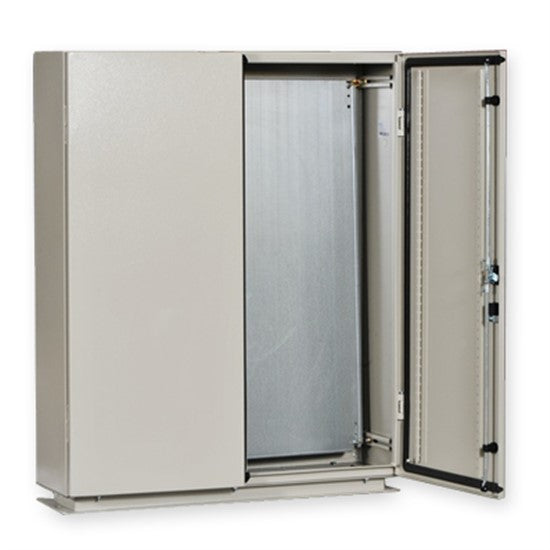

Mild Steel Electrical Enclosure – 1000×2200×500mm, Floor Standing Cabinet, 1.5mm Body, 2.0mm Door, Powder Coated Finish, IP55 Rated
Mild Steel Electrical Enclosure – 1000×2200×500mm, Floor Standing Cabinet, 1.5mm Body, 2.0mm Door, Powder Coated Finish, IP55 Rated
Regular price
GH₵21,500.00
Regular price
GH₵23,500.00
Sale price
GH₵21,500.00
Unit price
/
per
Couldn't load pickup availability
Product Description
The Mild Steel Enclosure (1000×2200×500mm) is a tall and deep floor-standing electrical cabinet ideal for control systems, automation panels, and power distribution applications.
Constructed from 1.5mm thick mild steel with a 2.0mm reinforced door, this cabinet ensures superior durability, rigidity, and mechanical protection. Its RAL 7035 powder-coated surface offers excellent corrosion resistance and a clean, professional finish suitable for industrial and commercial installations.
With IP55/IP65 ingress protection, it effectively safeguards internal components from dust, moisture, and impact, ensuring safe operation in demanding environments.
Technical Specifications Table
| Feature | Specification |
|---|---|
| Product Code | MSE-1022050 |
| Dimensions (H×W×D) | 2200 × 1000 × 500 mm (Tall, Wide & Deep Cabinet) |
| Material | Mild Steel |
| Body Thickness | 1.5 mm |
| Door Thickness | 2.0 mm |
| Surface Finish | Powder Coated, Light Grey (RAL 7035) |
| Ingress Protection | IP55 (Dust Protected, Water Jet Resistant) / IP65 (Dust Tight, Water Resistant) |
| Mounting Type | Floor Standing (Optional plinth/base frame available) |
| Locking System | Cam lock with key (Multi-point locking optional) |
| Applications | MCC Panels, Control Systems, Power Distribution Boards, Automation Cabinets |
