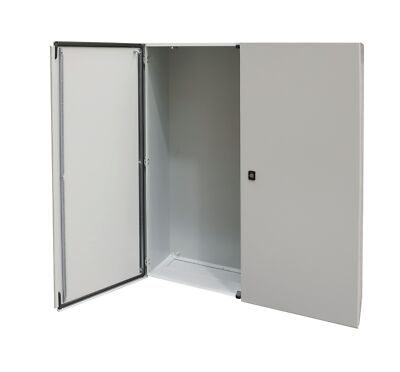

Mild Steel Electrical Enclosure – 1000×2200×600 mm, Floor Standing Cabinet, 1.5 mm Body, 2.0 mm Door, Powder Coated Finish, IP55 Rated
Mild Steel Electrical Enclosure – 1000×2200×600 mm, Floor Standing Cabinet, 1.5 mm Body, 2.0 mm Door, Powder Coated Finish, IP55 Rated
Regular price
GH₵0.00
Regular price
Sale price
GH₵0.00
Unit price
/
per
Couldn't load pickup availability
Product Description
The Mild Steel Enclosure (1000×2200×600 mm) is a tall, wide, and deep floor-standing cabinet designed for complex automation, control, and power-distribution applications requiring extra internal volume.
Constructed from 1.5 mm mild steel with a reinforced 2.0 mm door, it provides outstanding rigidity, protection, and durability. The RAL 7035 powder-coated finish offers corrosion resistance and a clean, professional appearance suited to both industrial and commercial environments.
With an IP55/IP65 protection rating, it ensures safe operation of electrical components by preventing dust and water ingress, making it ideal for factory floors, process control areas, and utility rooms.
Technical Specifications
| Feature | Specification |
|---|---|
| Product Code | MSE-1022060 |
| Dimensions (H×W×D) | 2200 × 1000 × 600 mm (Tall & Deep Cabinet) |
| Material | Mild Steel |
| Body Thickness | 1.5 mm |
| Door Thickness | 2.0 mm |
| Surface Finish | Powder Coated (Light Grey – RAL 7035) |
| Ingress Protection | IP55 (Dust Protected, Water Jet Resistant) / IP65 (Dust Tight, Water Resistant) |
| Mounting Type | Floor Standing (optional plinth or base frame available) |
| Locking System | Cam lock with key (multi-point locking optional) |
| Applications | MCC Panels, Control Systems, Power Distribution, Automation & Process Panels |
