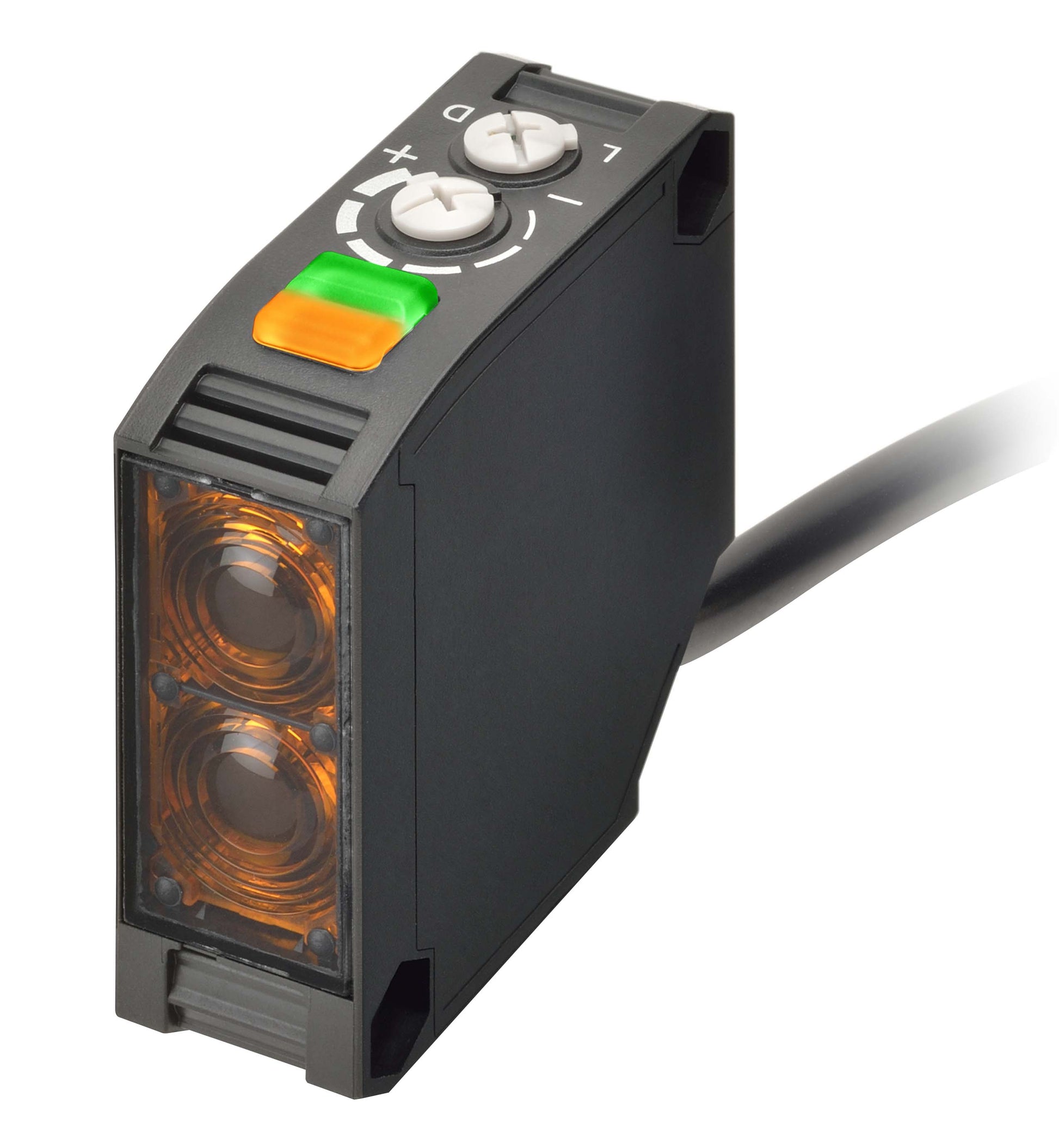

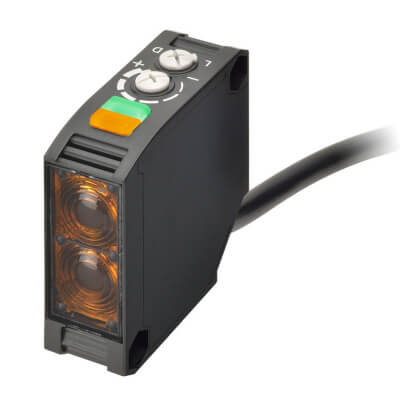

Omron E3JK-RP11 2M Retro-Reflective Photoelectric Sensor 10-30 VDC PNP Output 7–11 m Cable

The Omron E3JK-RP11 2M is a high-performance photoelectric sensor designed for reliable object detection in industrial automation, material handling, and control systems. This retro-reflective sensor uses a red LED light source and detects objects at long distances when paired with compatible reflectors — up to approximately 7 m using an E39-R1 reflector and up to 11 m with an E39-R2 reflector (reflector sold separately).

Featuring a PNP open-collector output, this sensor supports selectable Light-ON and Dark-ON operation modes for flexible system integration. The robust design with IP64 protection and pre-wired 2 m cable provides durability in industrial environments, while the compact ABS housing enables easy installation in control panels and machinery.

Key Specifications:

• Model: E3JK-RP11 2M (retro-reflective photoelectric sensor)

• Sensing Method: Retro-reflective (red LED)

• Supply Voltage: 10–30 VDC

• Output: PNP open collector, 100 mA max.

• Operation Modes: Light-ON / Dark-ON selectable

• Sensing Distance (with reflector): ~7 m (E39-R1), ~11 m (E39-R2)

• Response Time: ~1 ms

• Cable: Pre-wired 2 m cable

• Protection: IP64 dust and splash resistance

• Body Material: ABS plastic with red LED optics

This sensor is ideal for long-range detection, object counting, part presence sensing, and machine safety feedback loops in factory automation.
