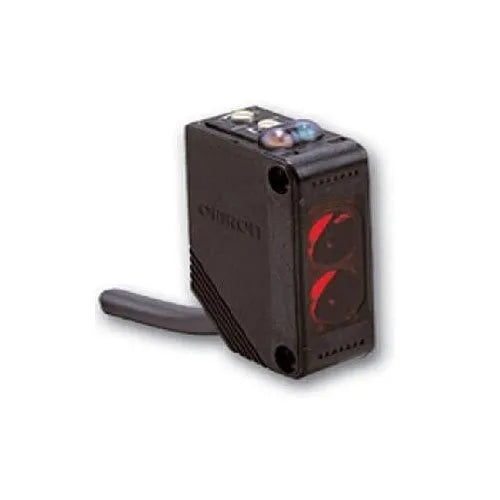

Omron E3Z-D81 2M Diffuse Photoelectric Sensor 12-24 VDC PNP Light-ON/Dark-ON 100 mm

The Omron E3Z-D81 2M is a compact and reliable diffuse-reflective photoelectric sensor ideal for industrial automation, machine control, and object detection tasks. Using a red LED and a diffuse sensing method, this sensor detects objects at distances up to 100 mm without the need for a reflector. It operates from 12–24 VDC and offers a PNP output with Light-ON/Dark-ON selectable modes, providing flexible integration with PLCs and control systems. The 2 m pre-wired cable simplifies installation in production lines and control panels. With a rugged PBT housing and IP67 ingress protection, the E3Z-D81 performs reliably in harsh industrial environments.

Key Specifications:

• Model: Omron E3Z-D81 2M diffuse photoelectric sensor

• Sensing Method: Diffuse-reflective

• Sensing Distance: ~100 mm (max), 5 mm (min)

• Supply Voltage: 12–24 VDC

• Output: PNP transistor, Light-ON/Dark-ON selectable

• Response Time: ~1 ms

• Cable: 2 m pre-wired

• Protection: IP67 dust/water resistant

• Housing: PBT plastic

• Operating Temp: −25 °C to +55 °C (typical)

This sensor is perfect for presence detection, object counting, or part positioning in automated manufacturing and processing systems.
